RX888 16Bit SDR Receiver Radio Wideband Receiver 64M Bandwidth LTC2208 ADC For SDRconsole Software
Product Description:
RX888 is a 16bit 64M bandwidth software-defined radio SDR receiver Radio direct sampling broadband high-performance receiver.

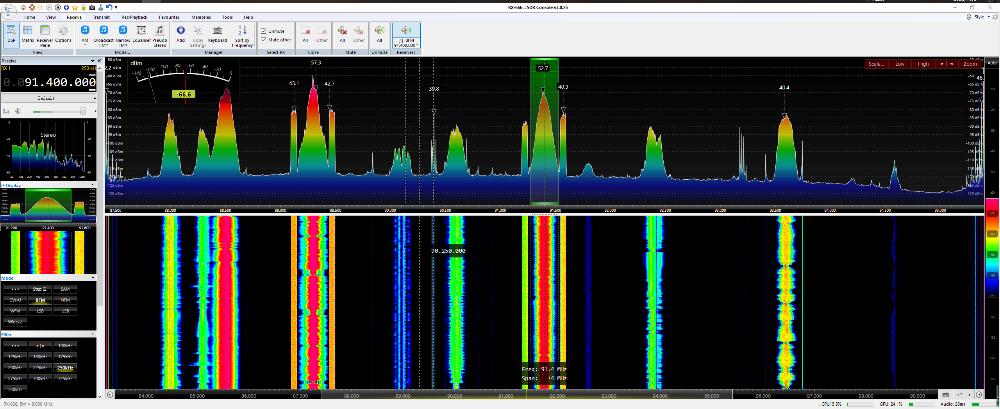

High performance, high dynamics, high sensitivity, no mirroring. Shortwave real-time spectrum 64M at a glance! UV real-time spectrum bandwidth 8M.
Features:
- Support for software HDSDR customized version SDRconsole (V3)
- USB3.0 interface power supply
- Dual antenna interface: LW/HF and V/UHF (interface type: SMA outer screw inner hole, providing power supply to external antenna amplifier)
- Frequency range: 10KHz-1.8GHz
- Aluminum alloy laser cutting shell. strong and sturdy
- Cooling method: Internal thermoplastic silicone and external heat sink for good heat dissipation
- Operating environment requirements: For Windows7, Win8, Win8.1, Win10
- The computer performance is based on a desktop computer: i5 3570 4G memory can run HDSDR smoothly. If running software for SDRConsole (V3), the computer must have enough memory above 8G, 16G memory is recommended! The 32M bandwidth usb3.0 has a large data throughput and has certain requirements for computer performance. Prepare your powerful computer!
- Base on BBRF103, re-optimize the design of PCB, the clock and phase-locked loop are shielded independently by shielding cover. The frequency spectrum is clean without local oscillator and spurious interference.
- All use LDO power supply, the whole machine 7pcs LDO power supply, linear power supply
- Using large vacuum VCXO crystal oscillator for KDS, designed with a potentiometer to fine-tune the frequency deviation
- Built-in LTC6401-20 20dB differential low-noise amplification LNA to the ADC front end can effectively improve the medium wave sensitivity and improve the receiving performance under the small-sized antenna. LPF low-pass filter with bandwidth adjusted to 64M, support 64M bandwidth (HF only)
- Exclusive Extio.dll, excellent UI and rich settings, support HF and VHF/UHF antenna bias power supply BIAS-T switch, HF three gears 0db, -10db, -20db attenuation ATT, and VHF LNA and VGA And MIX settings, support global bandwidth settings
Package Included:

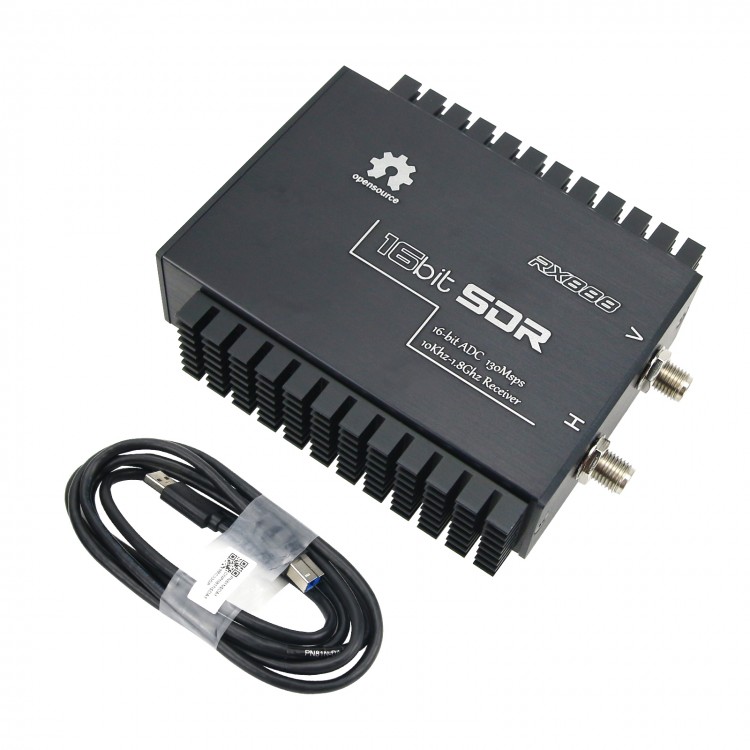

- 1 x SDR Radio Receiver
- 1 x USB 3.0 Data Cable
