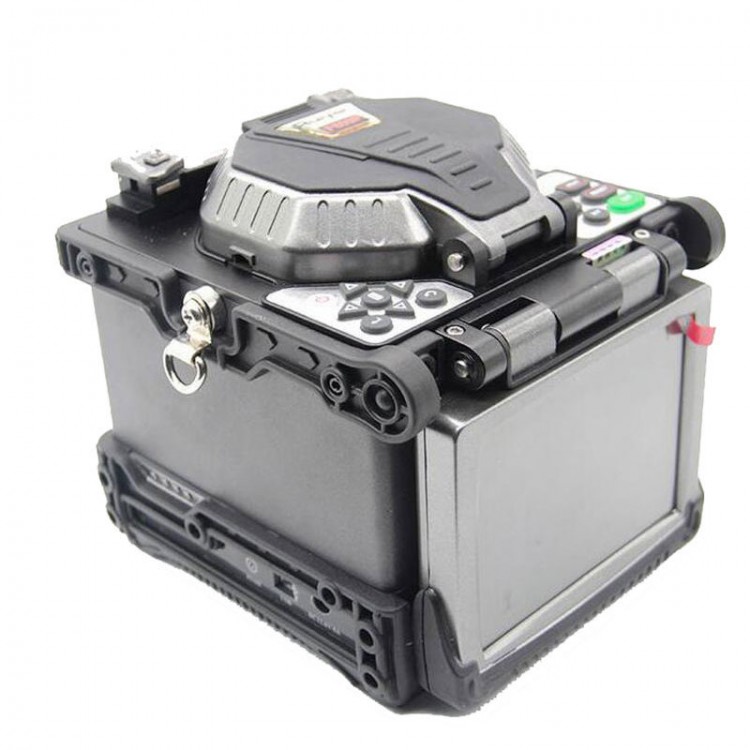

RY-F600P Fusion Splicer FTTH Fiber Optic Splicing Machine Automatic Focus Tools


Description

    Built-in light (make optical-fiber placement more convenient)

    It provides a wide range of fusion and heating parameters for your choice.

    Built-in heater

    Visual interface

    Intelligent power volume indicator and auto power-off at low voltage

    Data can be uploaded to PC via USB cable

    Color LCD

    Handy, easy-to-carry, solid and durable

Features

- In order to finish the fusion operations more accurately, please thoroughly read this Manual.

- In addition, it is easy to operate, fuses fast, with low fusion loss, especially suitable for the construction and maintenance of the optical-fiber works built in a wide range of sectors including telecommunications, broadcast & TV, railway, petrochem, electricity, army, police, as well as teaching and research of scientific institutes.

- Large-screen LCD clearly demonstrates every stage of optical-fiber fusion splicing. As the machine is compact in size, light in weight, it is ideal to work in outdoor environment.

- The machine employs high-speed image processing technology and special positioning technology, allowing the total process of fusion splicing to be finished within 10 seconds.

Specifications

Applications	SM(single-mode), MM(Multi-mode), DS(Dispersion displacement), NZDS(Non-zero dispersion displacement)
Splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	Greater than 60dB
Operation mode	Full auto, semi-auto, manual
Average splicing time	10s
Average heating time	36s
Fiber aligning method	Core aligning, clad aligning
Fiber diameter	Cladding diameter：80 ~150µm , Coating diameter：100 ~1000μm
Fiber cleaved length	10～16mm(coating diameter:＜250μm) ; 16mm(coating diameter: 250～1000μm)
Lens magnification	Vertical double display: 310x; horizontal double display, 155x
Display	High-definition 5.1” 640*480 LCD provides fine and clear images
Tension test	Standard 2N(optional)
Heat shrinkable tube	60mm, 40mm and a series heat shrinkable tube
Battery capacity	Typical: 250 times of splice, it takes 3.0 hours to fully charge it (the machine is operable during charging process)
Battery life	300～500 charging cycles
Power volume display	Real-time power volume display in the screen
Electrode life	Typical 5000times, customer can change electrode by himself
Optical-fiber clamp	New design allows optical-fiber positioning to be easier and more accurately.
Construction lighting	Built-in high-brightness, wide-range light substantially increases easiness of construction at night.
External ports	Standard USB port
Power supply	Built-in 11.8V lithium battery; external adapter, input: AC100-240V, output: DC12.6V/5.0A
Operating conditions	temperature: -10℃～+50℃; humidity: 95％RH(40℃, no condensation); height: 0～5000m above sea level
Dimensions	Length×Width×Height＝169×152×155(mm)
