ORICO CAS3922-S2R SATA Serial Port Disk Array RAID Expansion Card Support Window2000 XP VISTA

ORICO CAS3922-S2R SATA Serial Port Disk Array RAID Expansion Card Support Window2000 XP VISTA

Specification:

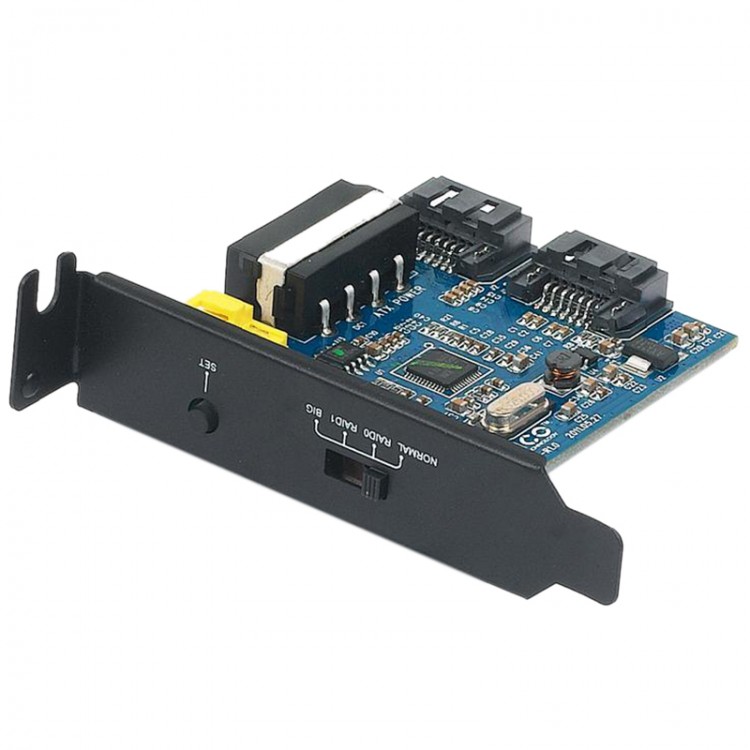

- Product Type: Orico CAS3922-S2R
- Disk Array: NORMAL / RAID 0 / RAID 1 / BIG
- Array set method is simple and easy to use: Computer shutdown, first need to set the array position, press set, press chassis power button, Wait 10 seconds after release set,set successfully

Function:
- Double channel CAS3922-S2R disk array controller is connected with a motherboard, through SATA mouth, led to the expansion card yellow SATA mouth
- Can be extended two SATA2 standard interface, you can connect two SATA2 (Support SATA3.0, more than 3TB hard disk)
- Power supply direct using the case 4Pin power supply, to ensure that the power supply stability, normal
- CAS3922-S2R has four Raid array mode: NORMAL / RAID 0 / RAID1 / BIG

Features:
- Support 2 2.5"&3.5" SATA hard disk (Using SSD hard disk, can be 200M/s with read and write speed)
- Hardware toggle switch can easily switch between RAID mode (Each requires a conversion from NORMAL mode to start)
-  User can freely switch RAID through management software, check the RAID status
-  Support mode is as follows: NORMAL / RAID 0 / RAID 1 / BIG
- Support RAID 1 automatic reconstruction
- Pure hardware accelerated physics engine. Support operation system startup
- Does not occupy any CPU and system memory resource
- Instantaneous need only to set the toggle switch, simple operation
- Support RAID 0 acceleration, RAID 1 images, NORMARL, BIG four kinds of work mode
- Support SATA / SATA II Gen2i and Gen2m, and 48 bit LBA mode
- Support online sector hot repair function
- Free driver, plug and play, hot swap
- Support Window2000/XP/VISTA/Win7/MacOS 10.4 or higher version system
- More importantly, it can also help you automatically restore the data.

Application:
-  Double disk dual channel speed: Double channel RAID0 installation speed acceleration, regardless operating system to use,
or playing games, photography, HD movies, using Raid0 can speed up the acquisition performance.
- Dual driver double insurance safety: Mirror instant hot backup RAID1,both are important to personal information, or business data,
can use dual drive double insurance, establishment Raid1 mirror mode, data are written to two drive data protection and fault tolerance
in a timely manner, when a hard disk is damaged, the other with the same data still maintain normal operation.

Package included:
- Expansion card * 1
- Raid management software *1
- Operation instruction *1
- Half board (applicable to high-grade chassis height)
- Mounting screws *2
