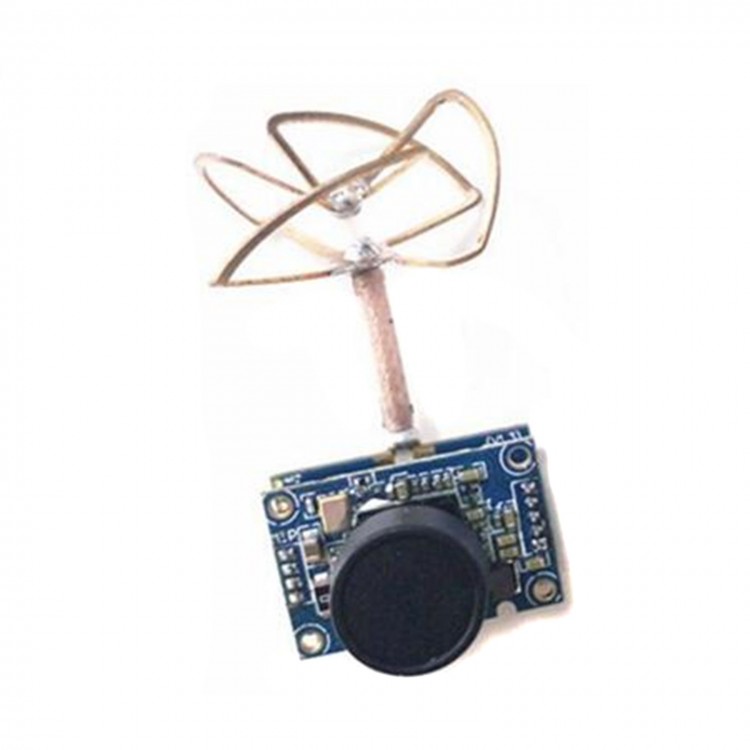

5.8G 25mW 40CH Wireless Transmitter Camera for FPV Racing Drone Quadcopter

5.8G 25mW 40CH Wireless Transmitter Camera for FPV Racing Drone Quadcopter

Specifications:
- 40 Channel
- Support touch switch and PWM select channel
- Support NTSC/PAL switch
- Support vertical inverted image and horizontal mirror image switch
- Miniature digital tube display alternately channel and status information
- Support OSD with external video in/out);
- Wide lens angle
- Omnidirectional CLOVER ANT.
- Miniature and light weight design
- Modulation type: FM

Transmission frequency group:
- Ch1:5725MHz Ch2:5745MHz Ch3:5765MHz Ch4:5785MHz
  Ch5:5805MHz Ch6:5825MHz Ch7:5845MHz Ch8:5865MHz
- Ch1:5733MHz Ch2:5752MHz Ch3:5771MHz Ch4:5790MHz
  Ch5:5809MHz Ch6:5828MHz Ch7:5847MHz Ch8:5866MHz
- Ch1:5705MHz Ch2:5685MHz Ch3:5665MHz Ch4:5645MHz
  Ch5:5885MHz Ch6:5905MHz Ch7:5925MHz Ch8:5945MHz
- Ch1:5740MHz Ch2:5760MHz Ch3:5780MHz Ch4:5800MHz
  Ch5:5820MHz Ch6:5840MHz Ch7:5860MHz Ch8:5880MHz
- Ch1:5658MHz Ch2:5695MHz Ch3:5732MHz Ch4:5769MHz
  Ch5:5806MHz Ch6:5843MHz Ch7:5880MHz Ch8:5917MHz

Mechanical Specification:
- Temperature :  -10~ +60deg C
- Ambient temperature:  25deg C
- 5645~5945MHz
- Channel customer:   40
- Modulation type:  FM
- Channel SEL.:  Touch Switch/PWM
- Channel Indicate: Channel group and channel alternated display,touch button channel+1 and frequency group A/B/C/D/E+1 switch needs touch buttong until 2S;
- Power Indicate:  Nixie tube flash
- Transmit power:   13±1dBm
- Frequency control:  PLL
- All harmonic:   Max -50dBm
- Frequency Stability:   ±100KHz (Typ.)
- Frequency precision:   ±200KHz (Typ.)
- Channel Carrier error:   1dB
- Antenna Port:   50 Ohm
- Input format:  NTSC/PAL
- SENSOR:  PAL:720X540/NTSC:640X480 1/4"
- LENS ANGEL:   H:120°/V:100°

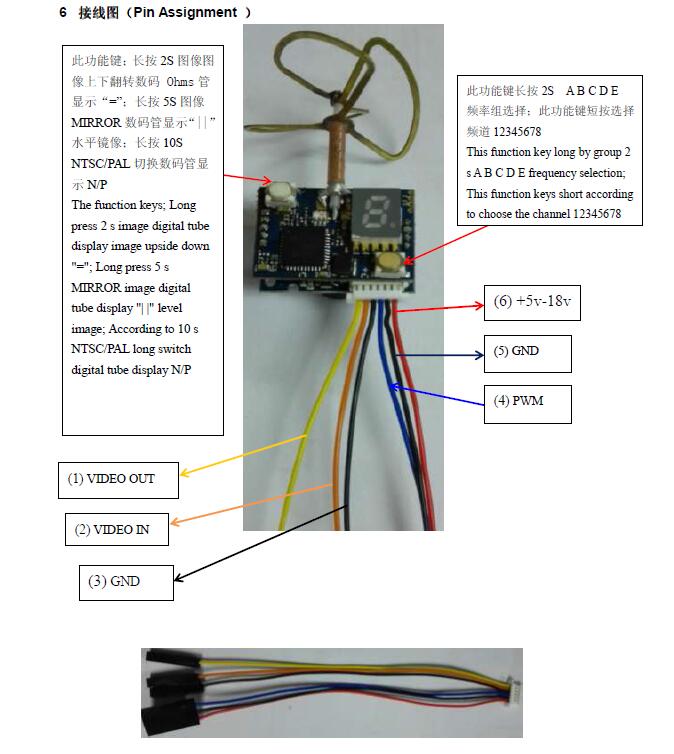

- Base-band interface:   (P1.27*6)
- Power consumption:  Max100MA@12V DCIN
- Supply Voltage:  5V-18V
- Operating Temperature:   -10~+60 deg C
- Profile dimension: 23X15

Package list:
- 1 x Wireless Transmitter
- Cable
