| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $196.57 | $192.56 | $186.54 | $178.52 | Contact US |
Description:
1. With this 4-channel car digital video recorder to assist in recording driving route, license numbers, the situation that passengers get on or off the car and what happened when you're not in the car.
2. Adopting high grade industry standard and designed according to the various operating environment in different cars, this 4-channel car digital video recorder is featured with diversified recording modes, compact size, easy installation, shock & heat resistance and stable performance.
Features:
- Apply to all kinds of cars
- Support high-capacity 128GB SD card and you can read the videos directly on PC, quite easy and convenient
- Automatic playback function
- Assist you in recording driving route, license numbers, the situation that passengers get on or off the car and what happened when you're not in the car
- Adopt high grade industry standard and designed according to the various operating environment in different cars
- Featured with diversified recording modes, compact size, easy installation, shock & heat resistance and stable performance
- Your best companion when you're on the road
Specifications:
- SD card: card reader convenience, with hard disk storage can not be compared shockproof anti-high temperature performance. Automatic loop recording
- System Resource: 4 channel CIF real-time video and network-wide transmission
- Operation Interface: Graphical user interface (GUI), mouse, panel, remote control operation
- Video Standard: PAL
- Recoding Mode: Manual, timing, alarm, motion detection
- Car Black Box Function: video overlay vehicle speed, braking signal, built-in time, date, license plate numbers, etc.
- Audio Input: 4 channel
- Audio Output: 1 channel
- Automatic reset: power outages, complex systems can be quickly restored after power has recorded picture will not be affected record status
- Synchronized recording: External monitor microphone or recording heads, sound and images stored on the SD card synchronization
- Memory Capacity: SD Card Max. 128GB (Not included)
- Dimension: 18 x 12 x 4cm
Recorder:
- No-seam recording technology.
- Support SD card (is not included) up to 128GB, more convenient and vibration-proof than hard disk version.
- Support four channel 4pin connector video and audio input, one channel AV connector video and audio output.
- Support IR remote control.
- Special design of encrption to protect recording files.
- Support wide range of voltage input from 8V to 33V.
Cameras:
- High-definition and wide viewing angle
- 18 LED light
- Waterproof, can be used both in car and home
- PAL video system
- Resolution: 380 lines
- Applicable to variety of vehicles: car, truck, RV, mini-van etc
- Perfectly solve the issue of bad car rear view effect ,can help reduce incidents and accidents
- Image Sensor: CMOS
- Minimum Illumination: 0.1Lux/ F1.2(0 Lux with IR on)
- White Balance: Auto
- Video Output: RCA connector, 1.0Vp-p, 75ohm
- Power Supply: DC 12V
- Operating Temperature: -20°C~75°C; RH95% Max
- Storage Temperature: -40°C~85°C; RH90% Max
7" Screen:
- Screen Size: 7 inch
- Display Component: Color TFT LCD
- Screen Ratio: 16:9/4:3
- Resolution: 800 x 480 Pixels
- Contrast Ratio: 100:1
- Video Frequency: PAL/NTSC
- Housing Material: ABS
- Power Supply: DC 12V
- Working Temperature: 0~80 degree
- Storage Temperature: -10~80 degree
- Product Dimensions: 193 x 135 x 25mm
- Product Net Weight: 381g

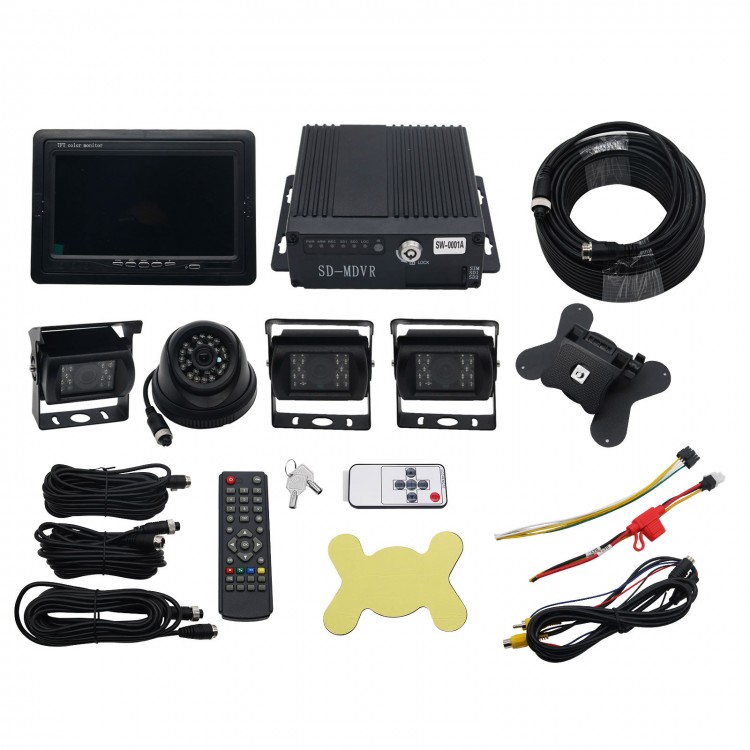

Pacing List:
- 1 * AHD Mobile DVR Kit
- 4 * 18 IR LED Night Vision Waterproof CCTV Camera
- 2 * 5M Video Power Cable
- 2 * 10M Video Power Cable
- 1 * 7" LCD Screen
