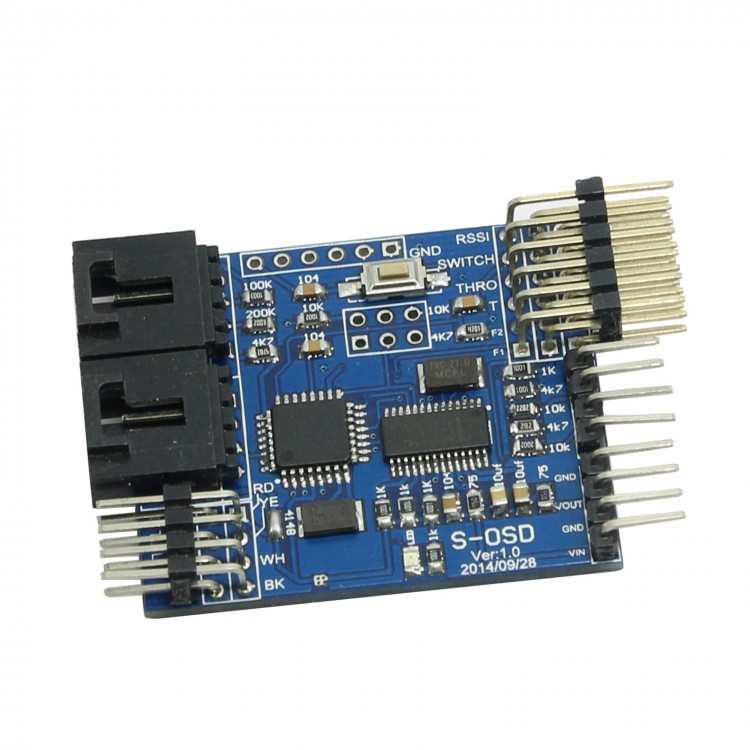

S-OSD iOSD Remzibi OSD Module with Flight Mode for DJI NAZA Lite/V2 GPS vs N-OSD

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.80
  • Price in reward points: 298 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.20 $28.61 $27.71 $26.52 Contact US
Quantity:
Functions:
- Compatible with ordinary OSD display function
- Added function: Flight mode, Flight attitude, throttle channel signal data(0%-100%), receiver signal strength(if receiver with RSSI function), screen switch function(dual screen display)

Instruction:
GPS Module and LED module connection:
1. GPS and LED: Use 4P-4P connect main controller GPS port and LED port, supply power to flight controller. If S-OSD power light lits, then it is right.
2. Then plug GPS module and LED module at S-OSD port
3. Switch port: The function of switch port is screen switch. There are plenty of contents S-OSD will display, so need two screens display. One time one screen content. The screen switched by transmitter 3-step switch through switch port.
4. Throttle channel: S-OSD could display throttle channel signal data from 0%-100%. Two THRO port on S-OSD, one connects receiver throttle, the other connects flight controller.
5. Attitude cable: connects with flight controller f1/f2
6. RSSI: S-OSD could display receivers signal strength, this port is used to connect receivers RSSI port
7. Voltage detection function: wiring as picture shows
8. Video port: wiring as picture shows
