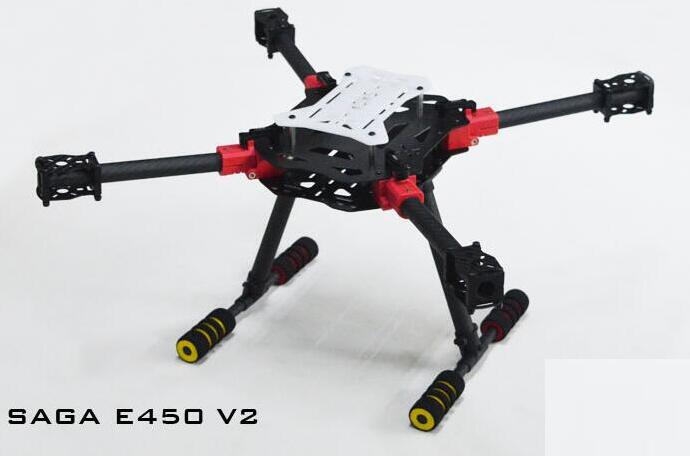

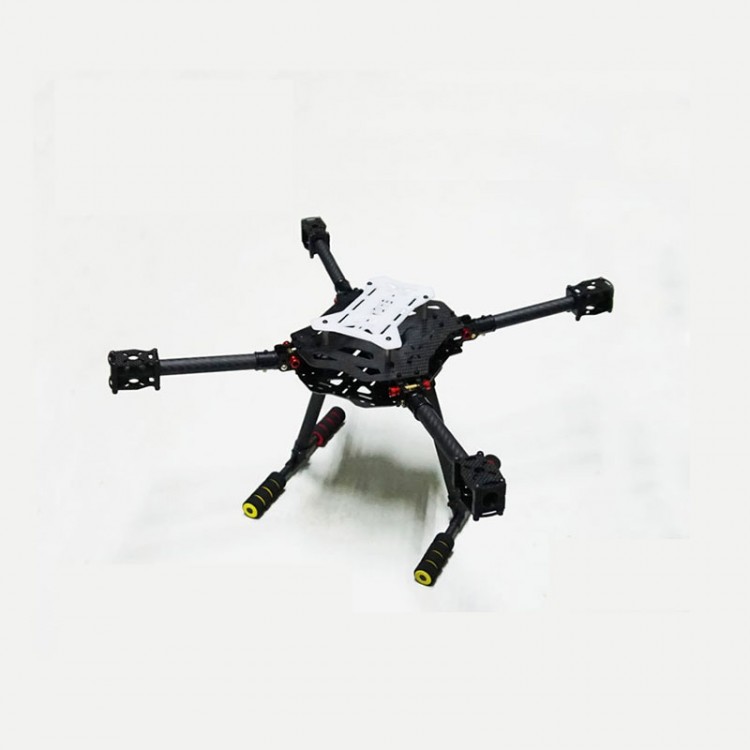

SAGA E450V2 Folding Aerial Multi-Rotor FPV UAV X4X8 Aerial Quadrocopter Multicopter Frame

SAGA E450V2 Folding Aerial Multi-Rotor FPV UAV X4X8 Aerial Quadrocopter Multicopter Frame

Product Description:

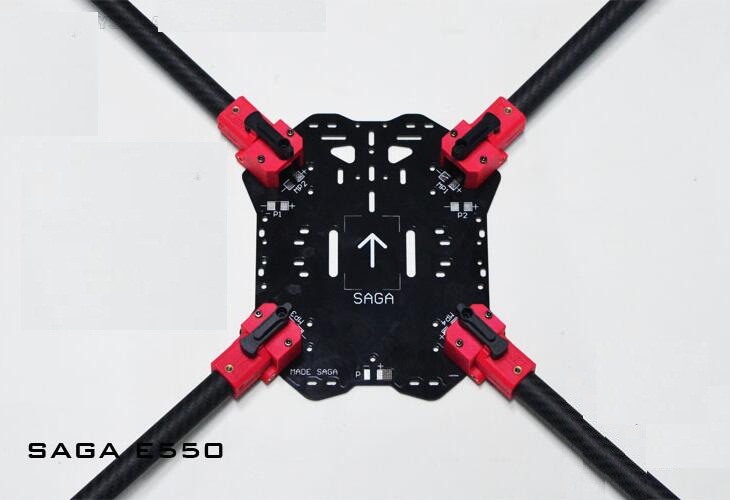

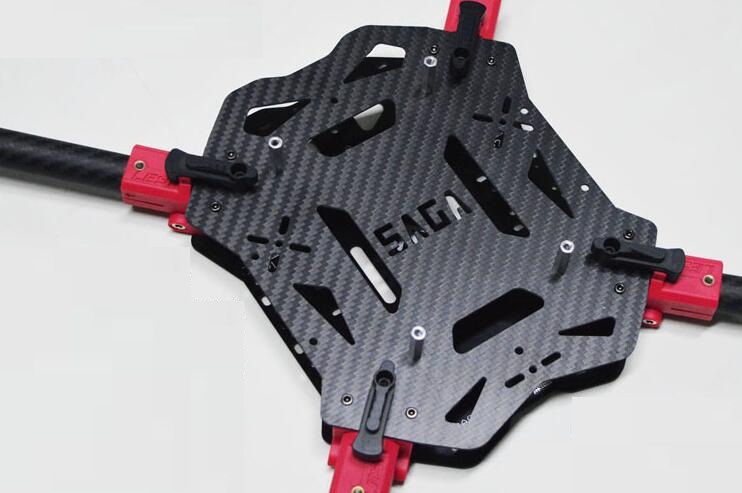

- The upper board is Open source flight control center install PIX APM

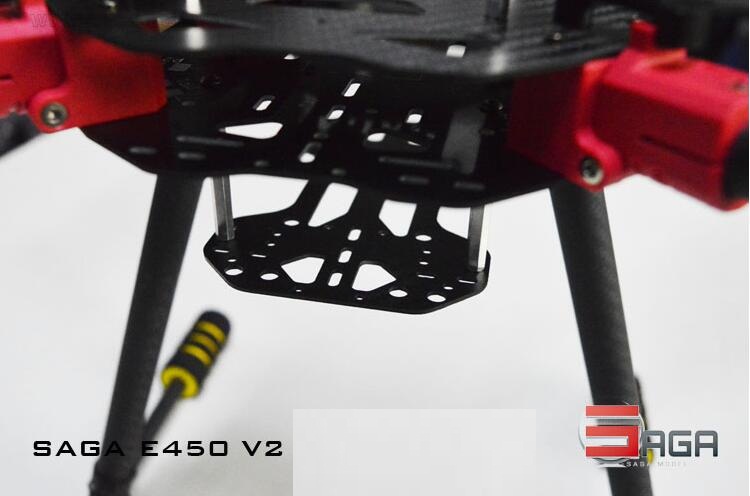

- The lower board integrated PCB power section board,the front reserved PTZ interface,is compatible for most GOPRO PTZ

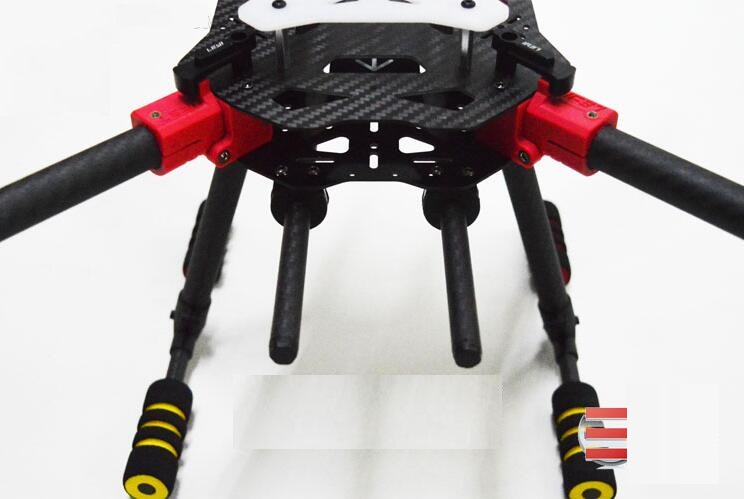

- Hanging PTZ battery rack,the quadrocopter can support various mounting device.
- You can direct install the PTZ on the hanging pylons after you install hanging battery rack.

E450V2 Quadrocopter specification:

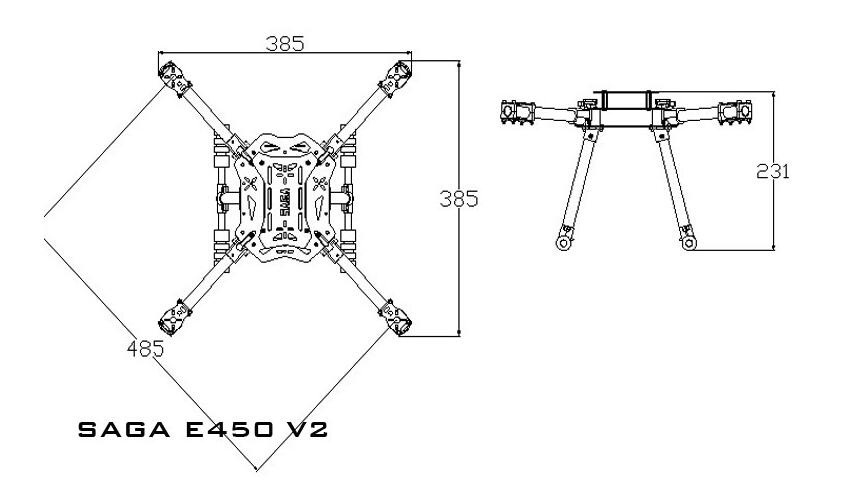

- Wheelbase:485mm
- Outline dimension:385x385x232mm

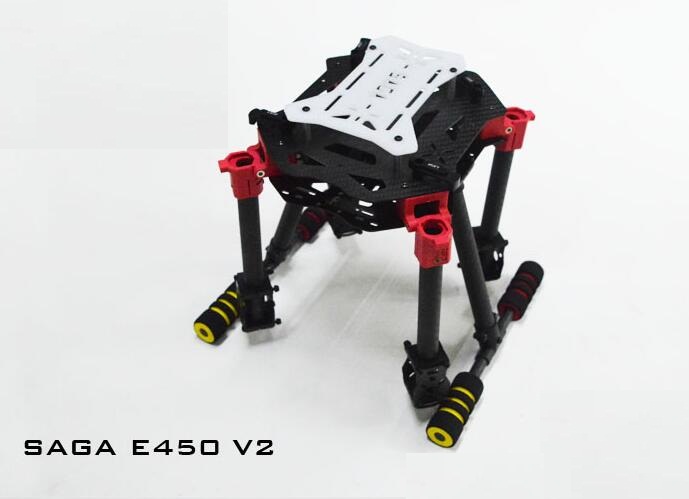

- Folded dimension:240x200x230mm
- Weight:465g
- Support assembling type:x4,x8

E450 V2 Recommended configuration:

1.Motor:2216 (x4)
- ESC:20A
- Propeller:10/11 inch
- Weight:1.8~2.4kg
- The max endurance:about 20~25 minutes (4S 5000mA);about 15~20 minutes (3S 5000mA)

2.Motor:3508 (x4)
- ESC:30A
- Propeller:12 inch
- Weight:2.0~3.8kg
- The max endurance:about 18 minutes (4S 5000mA);about 25minutes (6S 5000mA)

3.Motor:2212/2213/2312/2214 (x8)
- ESC:20A
- Propeller:9.5 inch
- Weight:2.0~2.8kg
- The max endurance:about 20~25 minutes (4S 5000mA)

4.Motor:2212/2213/2312/2214 (x4)
- ESC:20A
- Propeller:9.5 inch
- Weight:1.4~1.6kg
- The max endurance:about 15 minutes (4S 5000mA)

Note:The whole weight and the max endurance are typical reference value.The actual configure may differs in brand and mode,you can match other models according to practical experience.

Package List:
- 1 x SAGA E450V2 Quadrocopter Multicopter Frame
- 1 x Hanging pylons rack
