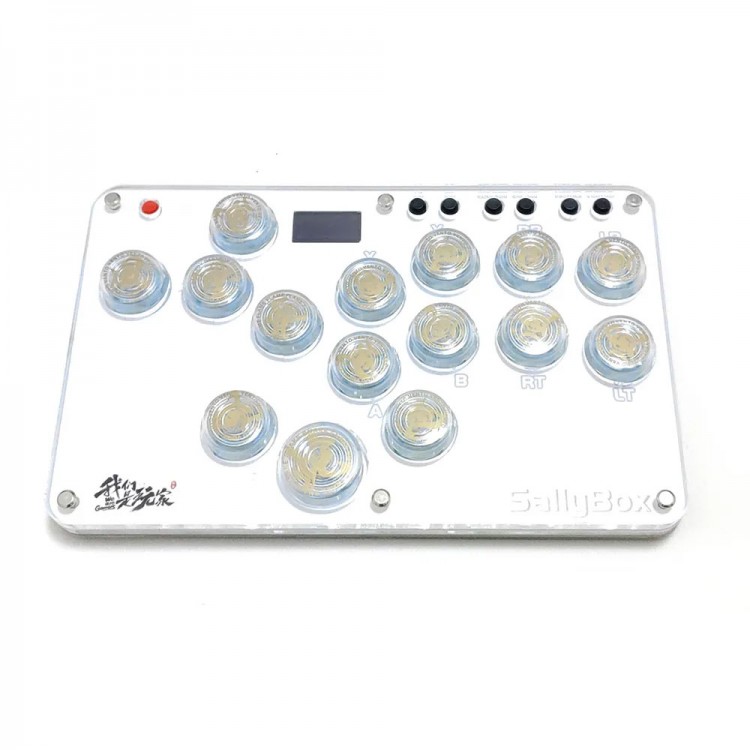

Sallybox Plus 15-Button Arcade Controller Mini Fight Stick with White Keycaps and Layout for Hitbox

Sallybox Plus 15-Button Arcade Controller Mini Fight Stick with White Keycaps and Layout for Hitbox

Description:
The Fight Stick is a unique controller not only because it allows you to input SOCDs, but also gives you the the ability to switch among many SOCD resolutions. There are 15pcs buttons. The gaming controller also has a WASD layout. It supports for PC/Android by using Zero Delay Arcade USB Encoder with SOCD Supported.

Features:
* Sallybox Plus game controller with 15 buttons
* One button designed with two lights and more even brightness
* There are two type-c ports (one on the left side and on on the top side)
* 1ms delay and a display screen
* Small and portable
* It supports multiple platforms
* Last input priority is supported for SOCD mode
* With the same layout for Hitbox, it is comfortable to use and suitable for most players
* With a switch for mapping: It can help you change the button to support for Mixbox or Hitbox. Move the switch upwards and W and space keys are of the same function. Move the switch downwards, and W and space keys are of different functions
* Fine edge and round corner
* Switches with pads: The pads can filter some high-frequency noises. Used with silent switches, they work even better
* All the buttons support hot-swappable MX switches. They are compatible with 99% of MX switches on the market and 5-pin switches
* The functions of all the buttons can be changed in settings
* It can display in fixed color mode, rainbow mode and color chasing mode. Colors, color themes and color modes can be switched
* Small size: 196 x 123 x 18.5mm/7.7 x 4.8 x 0.7" (LxWxH) (including feet pads)

Specifications:
* Cable type: Type-C
* Buttons: Turbo, Home, Select, Start, L3 and R3
* Panel Material: Aluminium and Acrylic
* Panel Size: 196 x 123mm/7.7 x 4.8"
* Product Height: 17mm/0.7" (without feet pads); 18.5mm/0.7" (with anti-slip feet pads)
* Product Weight: 0.5kg/1.1lb

Package Included:
* 1 x Gaming Controller

Note:
* Since this is a DIY item, it is inevitable that there will be minor imperfections, including but not limited to scratches, fingerprints, bump marks and dust particles. Please make sure that you don't mind before purchasing. Thank you!

Input Modes:
To select input modes, hold one of the following buttons when plugging in your controller:
* 1P: For PS3/DInput
* 1K: For NS
* 2K: For PC/XInput

Direction Mode:
After plugging in the controller, please press:
* SELECT + START + DOWN: DP mode (Visual helmet mode)
* SELECT + START + LEFT: LS (Left analog stick)
* SELECT + START + RIGHT: RS (Right analog stick)

Invert Y-Axis of Direction Keys:
Press the following buttons after plugging in the controller:
* HOME + START + RIGHT: switch Up and Down

SOCD Mode:
After plugging in the controller, select the active SOCD mode by pressing the following buttons:
* HOME + START + DOWN: Neutral (Up+Down=Neutral; Left+Right=Neutral)
* HOME + START + UP: Up Priority (Up+Down=Up; Left+Right=Neutral)
* HOME + START + LEFT: Last input priority

Turbo Mode:
Press and hold the TURBO button and press the button you want to set up continuous shooting. After setting, you can cancel rapid firing with the same operation.
* It can be set to 1P, 2P, 3P, 4P, 1K, 2K, 3K and 4K.
* Firing rate can be adjusted from 1 to 60 times per second (individual speed adjustment for each button is not supported. The speed supported by the V0.5.3 firmware is 1-30 times).
* Press and hold the TURBO button and press the UP key to increase the rate of fire. Press and hold the TURBO button and press the DOWN key to reduce the rate of fire.
* Even if the power is turned off, the set firing rate will be saved in the previous state, but the state of the TURBO button will be cleared.

RGB LED:
If you wan to change the setting of LEDs, please press:
* SELECT + START + 1P: The next animation
* SELECT + START + 1K: The previous animation
* SELECT + START + 2P: Increase brightness
* SELECT + START + 2K: Reduce brightness
* SELECT + START + 3P: LED parameter +
* SELECT + START + 3K: LED parameter -
* SELECT + START + 4P: Color parameter +
* SELECT + START + 4K: Color parameter -


Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. Key features include:
* Original RP2040 microcontroller chip for Raspberry Pi
* Dual-core Arm Cortex M0+ processor with flexible clock running up to 133 MHz
* 264KB of SRAM and 2MB of on-board Flash memory
* Castellated module allows soldering direct to carrier boards
* USB 1.1 with device and host support
* Low-power sleep and dormant modes
* Drag-and-drop programming using mass storage over USB
* 26 x multi-function GPIO pins
* 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC and 16 x controllable PWM channels
* Accurate clock and timer on-chip
* Temperature sensor
* Accelerated floating-point libraries on-chip
* 8 x Programmable I/O (PIO) state machines for custom peripheral support
