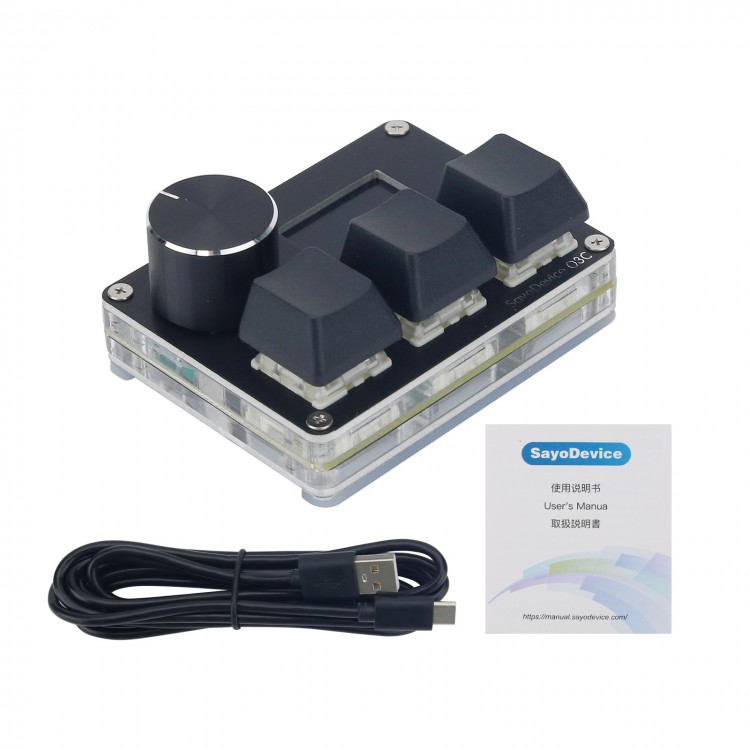

SayoDevice O3C OSU Black Custom Keyboard Gaming Keyboard Rapid Trigger with Magnetic White Switches

SayoDevice O3C OSU Black Custom Keyboard Gaming Keyboard Rapid Trigger with Magnetic White Switches

Features:
- The mechanical keyboard is designed with 3 buttons, 1 knob and 1 screen
- USB 2.0 high-speed 8000HZ
- With type-c interface, the keyboard is plug-and-play. The data cable is 2m/6.6ft in length by default
- The buttons with RGB backlight and the colors of the light is adjustable and the light can be turned off
- Five-layer button configuration can be switched arbitrarily, and each layer can be set with different color lights
- Trigger travel customization and the shortest is 0.05mm
- Release travel customization and support Rapid Trigger
- Support any magnetic pole and magnetic switch. Simply press the button for calibration
- 0.96" IPS color screen enables key travel visualization, key counting, etc.
- The first line of text on the main screen can be customized, such as writing your own ID
- The knob can also be used to set any key, such as to scroll to view the song list
- Key parameters can be fine-tuned: 0.05mm per gear
- Support multi-language

Package Included:
- 1 x Keyboard
- 1 x USB data cable

Note:
- Switches, keycaps and anti-slip pads are included in the keyboard.

Boot interface (customizable):
- The home screen can display key travel, status, key counting, and more.
- The first line of text can be modified. Users can modify the device name through the software.

Calibration menu:
- Each button can be calibrated individually.
- Calibration is done with a single click.

More functions:
- Support recording keystrokes
- Six macro scripts can be recorded, each of which stores about 500 keystrokes
- Manual editing, looping, local looping, etc. are also supported
- General shortcuts do not take up the number of macros (the same is true for the following)
- Support any single key of the keyboard, e.g. ABC123 F1 ~F12 F13~F24
- Support key combination, e.g. one click to copy and one click to paste
- Support multimedia control, e.g. adjust volume and switch songs
- Support for joystick buttons
- Support one-click password entry
- The name of the keyboard can be modified

Download:
https://dl.sayobot.cn/setting_v2.zip

To double click of the keys, break touch or change switches, please follow the steps below to calibrate. Press and hold the knob to open the menu. Users can calibrate or set keystroke triggering parameters.
1. Button - > magnetic calibration: choose K1, K2 or K3 for calibration. Follow the on-screen prompts to press the key.
2. Button - > parameter setting: select K1, K2 or K3 to set. The recommended parameters are:
- Trigger 5 (press the trigger distance. It is recommended to be greater than 0.15mm to eliminate hand shaking by mistake).
- Release 8 (release the release distance. It is recommended to be greater than 0.15mm to eliminate hand shaking and mistake).
- Dead zone 8 (first trigger length and forced recovery distance, recommended to set to 3%~5% of magnetic calibration).
3. Done!

Others:
- Set buttons/lights/set the name of the device (Displayed on the top line of the screen. Only English and symbols are supported) and modify the picture & text (firmware is going to be updated).
- Open https://osu.sayobot.cn/softwareto download V2.
- Update firmware: https://osu.sayobot.cn/software. Download the O3C firmware package, decompress it, and click upgrade twice.
