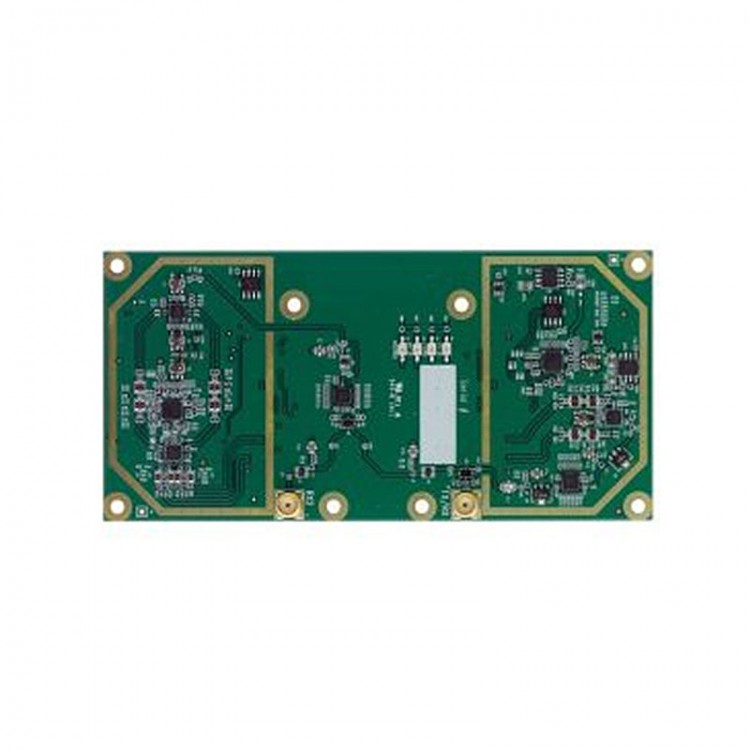

SBX-LW 40MHz RF Transceiver SDR RX TX Daughterboard Compatible with USRP
Features:
- Frequency coverage:400-4400 MHz Rx/Tx.
- Maximum signal bandwidth: 40 MHz or 120 MHz.
- Delivers 100 mW of output power and 5dB of noise figure. Local oscillator can be used for receiving and transmitting channels, and can also be used for dual-band operation.
- MIMO enabled, ideal for applications that need to operate in multiple frequency bands in the range of 400 to 4400 MHz.
- Typical applications including WIFI, WIMAX, S-band transceivers and 2.4GHz ISM band transceivers.
Functional Description:
It is a high-bandwidth transceiver that provides up to 100mW of power output with a noise figure of 5 dB. Local oscillator's receiving and transmitting chains operate independently, allowing dual-band operation. The SBX-LW provides MIMO functionality. For those who want to access a wide range of applications from 400 MHz to 4400 MHz, the SBX-LW is the ideal SDR device. It can be used for WiFi, WiMAX, S-band transceivers and 2.4 GHz ISM band transceivers.
Compatible Products:
- For USRP-LW N210
- For USRP-LW X300
- For USRP-LW X310
Package Included:
- 1 x RF Transceiver Daughter Board
