SDI Video Encoder H.265 H.264 1080P@60P For 3G SDI Video Live Streaming IPTV SRT Messaging XE5S

SDI Video Encoder H.265 H.264 1080P@60P For 3G SDI Video Live Streaming IPTV SRT Messaging XE5S

Encoder Upgrade Package Download Address:
pan.baidu.com/s/1kVyGylL
Upload the up.rar file and restore the factory settings after the upgrade is successful!

Advantages:
- Support output 1-way main stream and 3-way secondary stream
- Support video cropping, screen rotation angle
- Video screen can add LOGO, scroll text
- For RTMP streaming to various live broadcast platforms
- Support for ONVIF for Hikvision & Dahua NVR
- Multiplayer live broadcast on LAN
- Built with server for RTMP

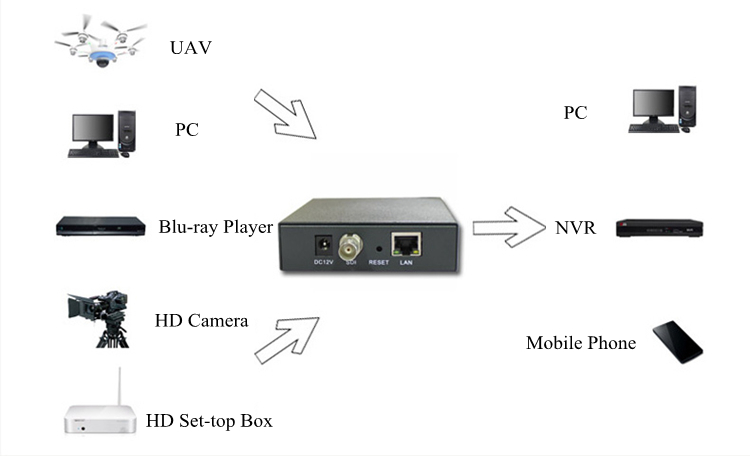

- Collect 3G/HD/SD-SDI signal output RTSP/TS/FLV/HLS/RTMP/UDP
- 7x24 hours stable operations

Features:
- SDI HD 1080P@60P picture quality
- Video preview
- Live Streaming: RTMP protocol is used for messaging major online live streaming platforms. Just input RTMP address of live broadcast platform into our configuration webpage.
- Support Live Broadcast Platforms: For aodianyu.com, live assistant, Huya.com, Douyu, Zhangyu, LETV, V.QQ.COM, mudu.tv.
- H.264 encoding
- HD 1080P: HD 1080P@60P video source input encodes the same picture quality.
- HLS Video Stream: Output HLS stream, which can be played directly on browser for Apple.
- Multicast: Multicast can realize multi-person viewing on LAN.
- OSD Graphic Settings: You can add picture logo and text in multiple areas of video, and set color transparency and so on.
- Serial port transparent transmission

Parameters:
Audio Video Input:
- Video Input: 1-way SDI
- Audio Input: 1-way SDI built-in audio

Video Encoding:
- Encoding type: H.264/H.265 optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/same as input resolution
- Stream control: Cbr/vbr optional
- Streaming: Support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast

Audio Encoding:
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC+/AAC++/MP3/MP2/AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/AC3: 40000-640000 available Tune
- Audio volume (only valid for analog input): -50 to 50 adjustable
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disabled/enabled optional

OSD:
- Transparency: 0-128 adjustable
- Type: Text/Picture/Scrolling Text
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: Can upload 4 LOGO for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: Gigabit
- Configuration management: configuration management via WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: < 5W
- Working temperature: -20℃ to 60℃
- Working humidity: < 90%, non-condension
- Product Size: 10.4 x 10.3 x 2.8 cm

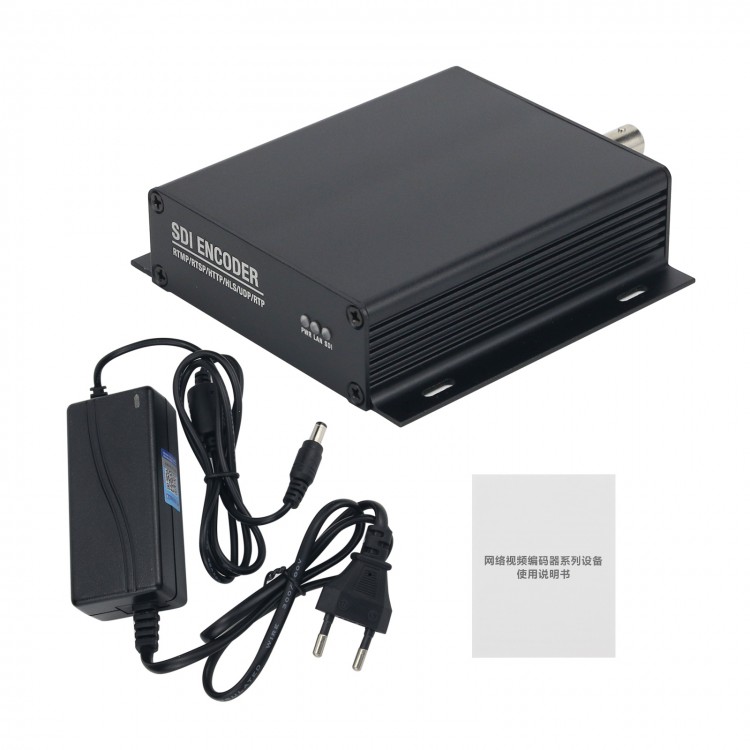

Package Included:
- 1 x Set of Video Encoder


Note: Other items pictured are not included.
