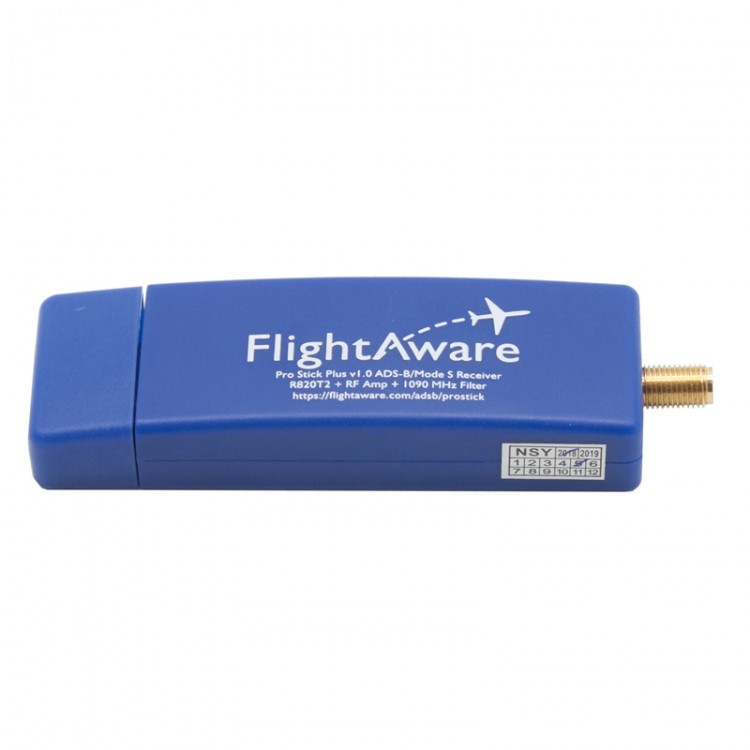

SDR USB ADS-B Receiver with Built-in RF Amplifier 1090MHz Bandpass Filter Pro Stick Plus V1.0
Description:
It has revolutionized the world of USB SDR ADS-B Receivers with the Pro Stick Plus, high-performance USB R820T2 software defined radios (SDR) with a built-in RF amp for maximum ADS-B/MLAT performance. The Pro Stick Plus adds a built-in 1090 MHz bandpass filter for increased performance and range of reception in areas with moderate RF noise as is typically experienced in most urban areas.
Pro Stick Plus is roughly the size of a traditional USB stick and require no external power. There are no moving parts.
Features:
Higher Performance for ADS-B and MLAT:
- Increases range 10-20% over Pro Stick when filtering is beneficial
- A 1090 MHz bandpass filter (whether built-in or a separate external part) is generally recommended for users in urban environments or with known high power radio transmitters nearby such as cell phone towers. Filtering is generally not recommended for users in rural environments. Filtering benefits may vary and are dependent on the installation location.
- Adds Built-in 1090 MHz filter with R820T2 SDR and RF Amplifier (USB powered)
- Native SMA connector yields reduced loss due to antenna cabling/adapters
Easier to Setup:
- SMA F connector for easy connectivity to high-performance antenna
- No MCX adapters required
- No external amplifier required
Less Expensive:
- Cheaper than other receivers
- Lower shipping costs due to no unnecessary parts (e.g., remote control)
Specifications:
- Chip: R820T2
- Amplifier: 19dB with 0.4dB noise figure and OIP3 +39dB
- TCXO: 0.5 ppm
- Filter: 1075 MHz to 1105 MHz pass band with insertion loss of 2.3 dB; 30 dB attenuation on other frequencies
- Power Consumption: 300 mA
- Weight: 17g
- Dimensions: 95 mm x 32 mm x 13 mm
- Antenna Port: SMA female (requires SMA antenna cable and optionally N-male adapter for large antenna)
- Range: Over 550 km depending on installation quality
Package Included:
- 1 x ADS-B Receiver
