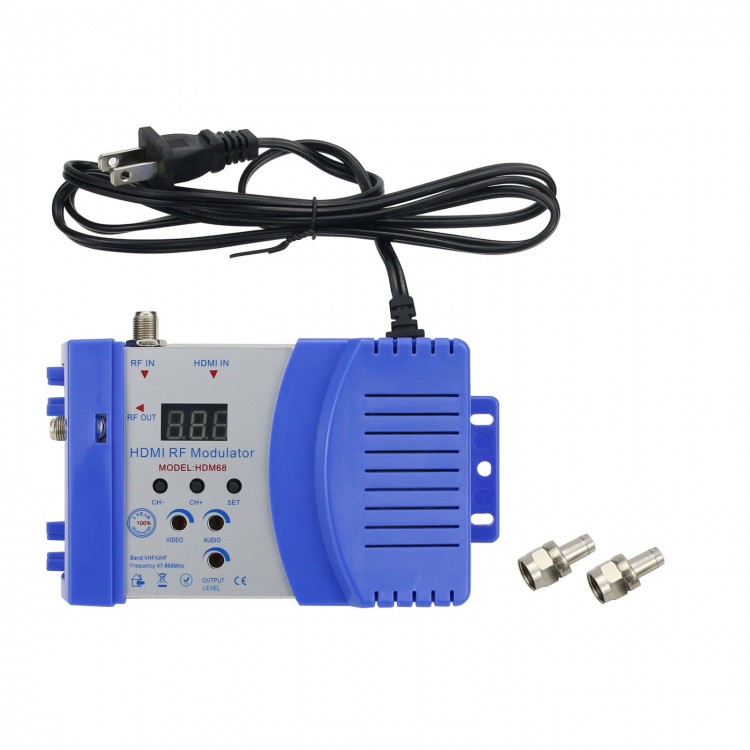

Seebest HDM68 HDMI RF Modulator One-Way HDMI To RF Converter 96 Adjustable Output Frequencies
Description:
The electronic digital display high-definition signal rf modulator is a new economical front-end equipment of our company. It fits some set-top boxes only having HDMI output ports. At the same time, the output frequency can be adjusted at any time according to needs, with up to 96 adjustable frequencies, to meet the needs of various occasions. It is mainly used for image and sound signal modulation. This equipment is easy to install and easy to debug. It is the first choice for building small shared TV systems, and can also be applied to closed-circuit TV systems and security monitoring systems.
This equipment is mostly used in small hotels, hotels, small front ends, video and audio transmission, etc.
Advantages:
- Single-way HDMI to rf modulator
- F connector in imperial units
- Adopt high-speed I2C bus control integrated circuit
- Use high-performance programmable PIC MCU control circuit
- The image is clear, the sound is lifelike, and the anti-interference is strong
- Suitable for hotels, hotels, small front-end, video, audio transmission and other fields
Features:
- VHF/UHF operating frequency
- Humanized design, easy to install, easy to operate
- Output level adjustable, Audio Output Level Adjustable
- Video Output Level Adjustable, Channel digital display
- Compact and lightweight, portable to carry
Specifications:
- Model: HDM68
- Frequency range: 47~868MHz
- Bandwidth: 6MHz, 7MHz, 8MHz
- Output level: 80~95dBuVadj
- Input Level: 0.77Vp-p for 80%+/-10% modulation
- Sound system: M=4.5MHz, B/G=5.5MHz, I=6.0MHz, D/K=6.5MHz
- Input port: HDMI
- RF Input: F female
- RF Output: F female
- Input resolution: 1080P/1080i/720P/576P/576i/480p
- HDMI Version: 1.3
- HDCP Version: 1.3
- Operating Temperature: 0℃ to +40℃
- Material: plastic and metal
Package Included:
- 1 x Set of HDMI RF Modulator
