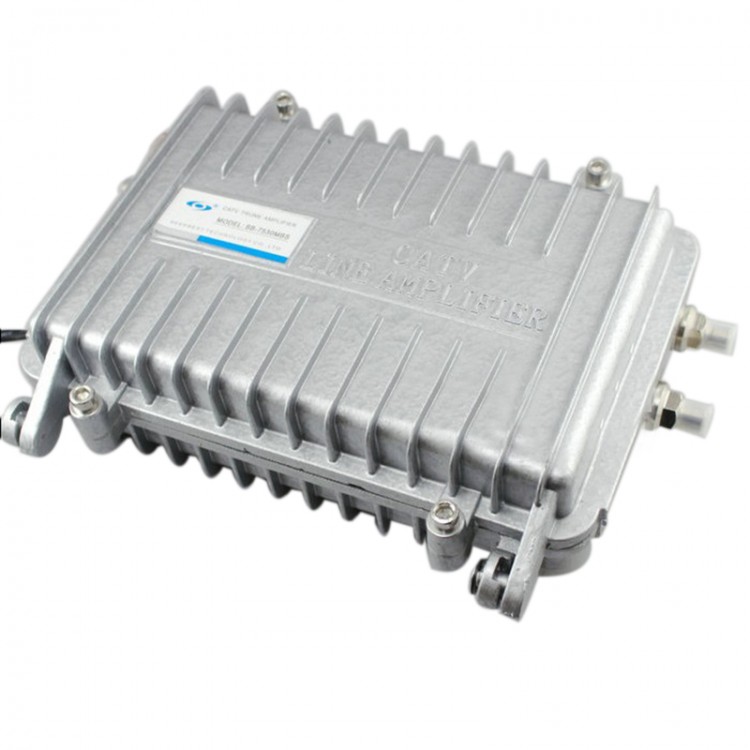

Seebest SB-7530MBS MBS Series Bi-directional Trunk Amplifier Cable TV Signal Splitter Booster CATV Trunk Amp
Specifications:
CATV trunk amplifier, SB-7530MBS is a CATV trunk amplifier applied in outdoor signal distribution system. It can compensate signal losses caused by long distance transmission and high temperature.
Features:
1. Suitable for trunk or branch amplification in CATV systems
2.Modularization design,convenient maintenance
3.Adopting domestic module
4.Aluminum die-casting housing,good shielding quality
5.Plug-in bi-directional filter,free frequency division
6,ATC automatic temperature compensation control circuit
7.550MHz,750MHz,860MHz optional
Key Parameters:
- Frequency range(MHz): 45~750
- Nominal gain(dB): 30
- Flatness in band(dB) : ±0.75
- Max.output level(dBμV): 120
- Norminal input level(dBμV): 72
- Gain adjustment range(dB): 0 ~20
- Slop adjustment range(dB): 0 ~18
- Noise factor(dB): ≤6
- Testing port(dB): -20
- Return loss(dB): ≥16
- Thunderstroke immunity(KV): 5(10/700μS)
- Power supply: AC40V~60 V or AC220V±10%50Hz
- Power consumption(W): 15
- Dimension(mm): 270X195X85
Package Included:
- 1 x Seebest SB-7530MBS MBS Series Bi-directional Trunk Amplifier
