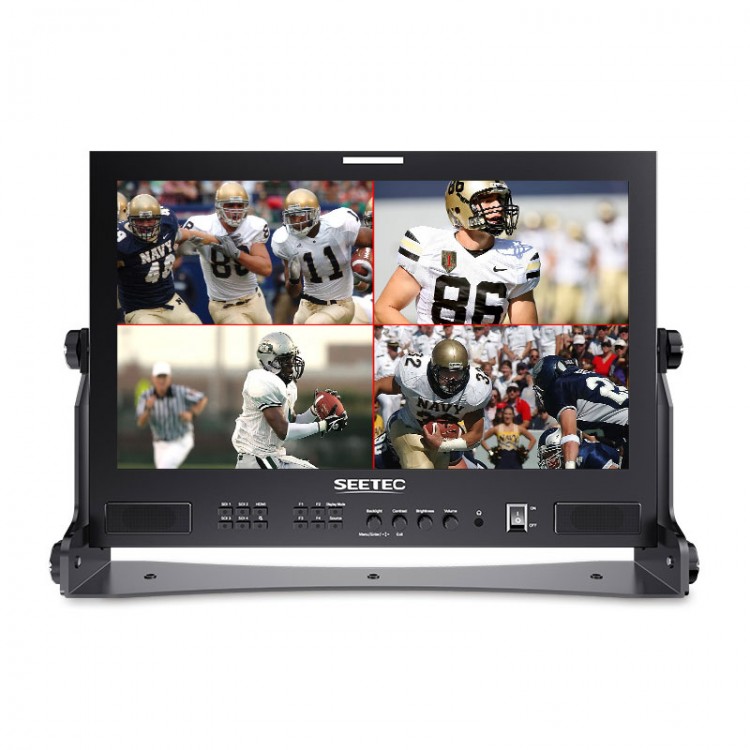

SEETEC ATEM173S 17.3" IPS Multi-Camera Director Monitor Broadcast Monitor 3G-SDI HDMI Full HD 1920x1080

SEETEC ATEM173S 17.3" IPS Multi-Camera Director Monitor Broadcast Monitor 3G-SDI HDMI Full HD 1920x1080

Description:

17.3" 3G-SDI/HDMI Broadcast Monitor
Complete monitoring solution for live production, broadcast and post production
SEETEC ATEM173S is a full HD broadcast monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. It supports VESA standard, and can be bracket-mounted or wall-mounted installation. It is an ideal monitor for live production, broadcast and post-production!


17.3-inch Full HD LCD
The ATEM173S adopts a 17.3-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 300cd/㎡ brightness, 700:1 contrast ratio, 178° wide viewing angle, allows you to see clearly no matter you monitor from which angle.

Accurate Color Reproduction
Use Rec.709 color standard
Accurate color reproduction is one of the important indicators for measuring professional monitors. ATEM173S built-in 3D-LUT, adopts the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory to ensure the consistency of color reproduction of each monitor.


Standard VESA Mounting Points
- The ATEM173S is equipped with 4 standard VESA mounting points,you can mount it in a rack or hang it on a wall. Flexible mounting for a busy newsroom.
- Note: The bracket not included, please purchase separately


4X3G-SDI Inputs and Output
Perfect SDI monitoring
ATEM173S monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multi-camera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.

Professional On Set Monitoring Tools
Accurately focus and efficient monitoring
The monitor provides a series professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vectorscope, audio meter, time code, anamorphic mode, etc. All of functions can easy to select and operate from menu, also can set shortcut button or via GPI control. Effectively improve the efficiency of on-site shooting and post-production.


3D LUT, Recreate Film Looks
Supports up to load 36 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT, you also can load the custom .cube file via USB flash disk (up to load 36).


Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode (can be right/left adjustment). ATEM173S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!


Gynamic UMD
TSL3.1/4.0 Protocol
ATEM173S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.


Multiple Display Mode
Meet different monitoring needs
The screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. In the picture-in-picture mode, the size and position of the sub-window can be adjusted. In the quad screen mode, supports SDI signal simultaneously display 4-channel audio meter and 4 time code.


16-Channel Audio Level Meters
The monitor can de-embedded audio from SDI and HDMI. Support select any 2 channels audio to output via 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported.


Custom Menu Setting
ATEM 173S provides 4 groups custom menu setting, which will be automatically saved after setting, and there is no need to reset when you turn on next time, saving time cost.


Portable Sunshade
New extended screen sun hood, to acquire the ideal visual effect in almost all environments.


Flexible and Useful Bracket
The monitor attached a U-shape bracket, it featured 3 standard 1/4-inch mounting points to help you easily complete installation and compatible with the third party rigging equipment. You can connect to magic arm to hang it on the other equipment or install it on the camera stand for the entire crew to monitor. You also can place it on the workbench for monitoring.


Package Included:
- 1 x Monitor
- 1 x Power Adapter
- 1 x SDI Cable
- 1 x Mini HDMI Cable
- 1 x V-mount Battery Plate (default to mount on device)
- 1 x Sunshade
- 1 x U-shape Bracket
- 1 x User Manual Manual

Note:
- Battery is not included. They need to be bought separately.
