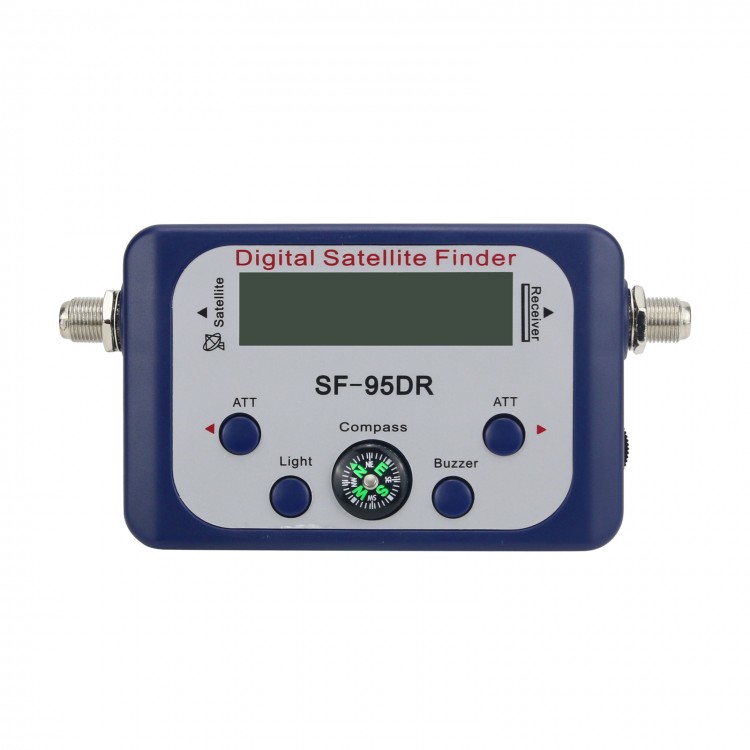

SF-95DRL Digital Satellite Finder Satellite Signal Meter Compass TV Dish FTA LNB Satfinder Receiver
Specifications:
Frequency Range: 950-2150MHz
Input Level Range: -40～-10dBm
Impedance: 75Ω
Gain: ≥10 dB
Power Supply: 13-18V DC
Operating Temperature: 0～40℃
Size: 130*65*27mm
Features:
1. In-line IF signal strength meter, 75Ω connector, built-in light and electric buzzer. With built in compass, ideal for satellite installations or to re-point your satellite dish.
2. SF-95DRL has a blue back light to allow use at night. The signal meter never needs to be recalibrated nor does it need complicated programming.
3. ATT increasing key. If the incoming signal is too strong, (the thermometer-scales shows max and the signal strength value shows 99), it can easily be attenuated by enabling this "attenuation" function, it reduces the incoming signal to a lower level. There are four step attenuation totally.
4. Built-in amplifier compensates insertion loss.
5. Adopt LCD to display the satellite signal intensity.
6. It automatically recognizes the LNBF frequency and works with any C band, Ku band, or Ka band satellite. No need to input transponder frequency, symbol rate, or polarity. This meter is truly plug and play.
Package List:
1 x Digital Satellite Finder
