SF-HC25G Plasma THC Torch Height Control + THC Lifter 1800mm/min For CNC Flame Plasma Cutting Machine

Package Included:

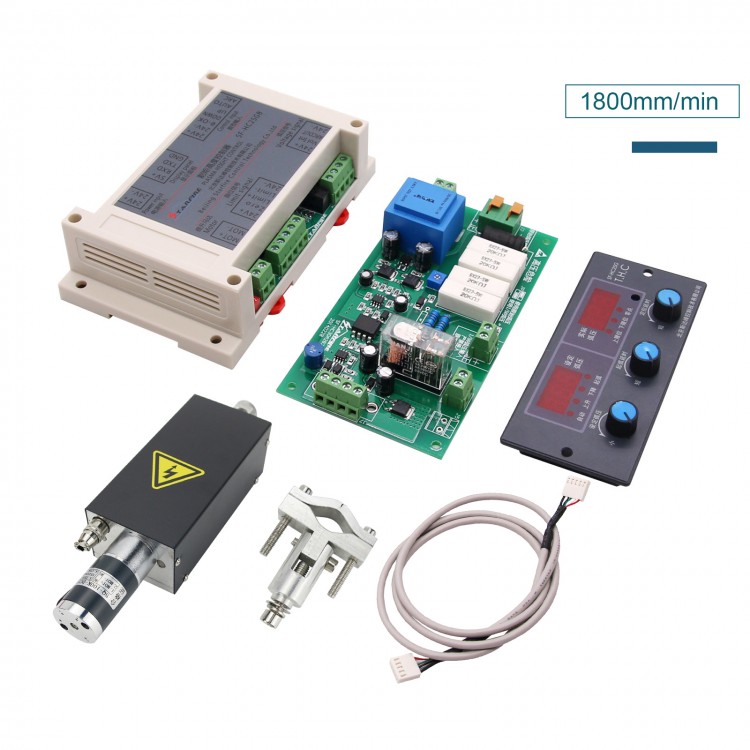

- 1 x Set of Plasma THC + Plasma Torch Holder Lifter

SF-HC25G Plasma THC:
Technical Features:

- 32-bit ARM and two 3-digit display tubes enable digital control. Without linear regulator components, its stability is dramatically improved.
- Velocity and parameters can be modified according to your power supply and lifting mechanism.
- Its circuit uses patch technology. There are no adjustable devices inside. Full digital control technology ensures high reliability.
- Easy Operation: Two digital tubes display given arc voltage and actual arc voltage respectively. There are 3 knobs to do parameter settings and operation.
- Simple Interface: It is suitable for all plasma cutting CNC systems. And it can be used alone.
- Proximity switch used as initial positioning way.
- PWM output and 255-level adjustable speed enables precise control of motor speed. It features several current settings and short-circuit protection.
- Anti-Collision Function: When cutting nozzle touches steel plate, the controller can quickly move your cutter higher to protect the nozzle.
- Excellent Compatibility: All inputs and outputs are optically isolated. Plasma voltage feedback uses linear opto-isolation and independent isolated power supply, and is compatible with various plasma power supplies.
- With arcing judgment function and successful arcing feedback function.

Technical Parameters:
- Power Supply: DC24V±10%, 3A
- Compatible Motor: 24V DC motor
- Drive Mode: PWM
- Output Current: < Input current of power supply
- Initial Positioning Method: Proximity Switch (normally open normally closed through jumper cap settings)
- Highest Control Accuracy: ±1V
- Controller Size: 145 x 90 x 42mm
- Panel Size: 120 x 55 x 40mm
- Working Environment Temperature: - 10 to 60℃
- Detection System: Isolated arc voltage divider board

Plasma Torch Holder Lifter:
Description:
The torch holder of flame cutting machine is of top quality in the industry. The lifting body uses a decelerating DC motor to drive the cutting torch up and down. The internal lifting drive of the holder adopts 304 stainless steel T-shaped screw, and the optical axis and linear slider are used at both ends to ensure smooth and reliable verticality in the up and down direction. It is used for ascending and descending transmission mechanism during flame cutting. Made of aluminum with fine treatment, it features very high accuracy. The positioning switch and limit switch are made in Taiwan and have passed 3C certification and CE certification.

Definition of Aviation Plug:
- Pin 1: MOT + (motor)
- Pin 2: MOT- (Motor)
- Pin 3: Zero (SIGNAL) (positioning normally open signal output)
- Pin 4: COM (positioning normally open signal output)

Attention: The built-in limit is designed with reverse diode. No more troublesome wiring again and again.

Specifications:
- 304 stainless steel T screw
- With fixture (cutting torch range 12mm-38mm)
- CNC flame and plasma anti-collision function (optional)
- Positioning function inside the lifting body
- The thickness of the main body aluminum plate and the upper and lower aluminum plates is 8mm.
- Four-core aviation plug
- Color: Black sprayed shell
- Working Stroke: 100mm
- Working Voltage: DC24V
- Weight: about 1.7 kg
- Load Capacity: 3 kg
- Size: 320 x 80 x 60mm (LxWxH)
- Installation Hole Spacing: 40mm
