| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $187.66 | $183.83 | $178.09 | $170.43 | Contact US |

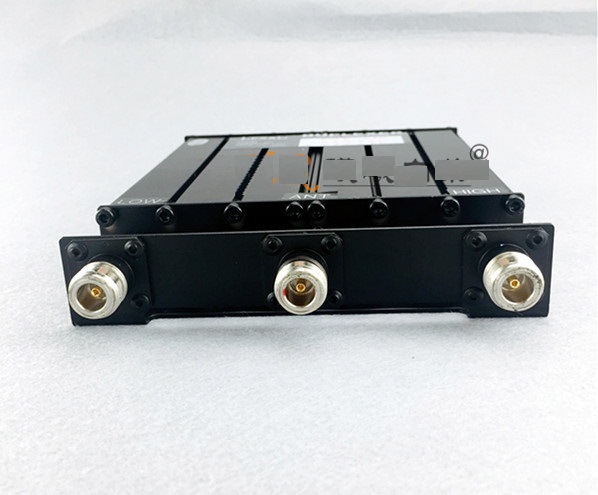

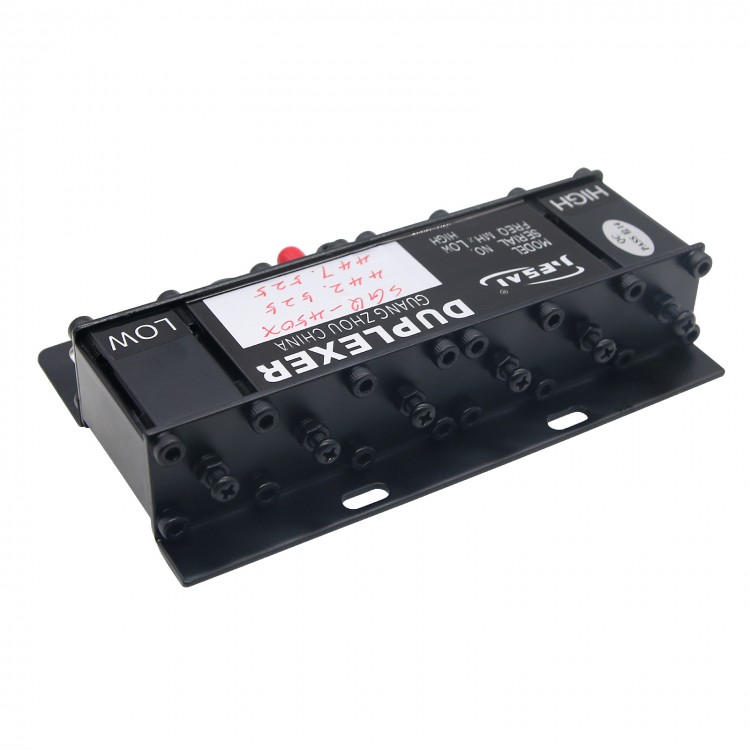

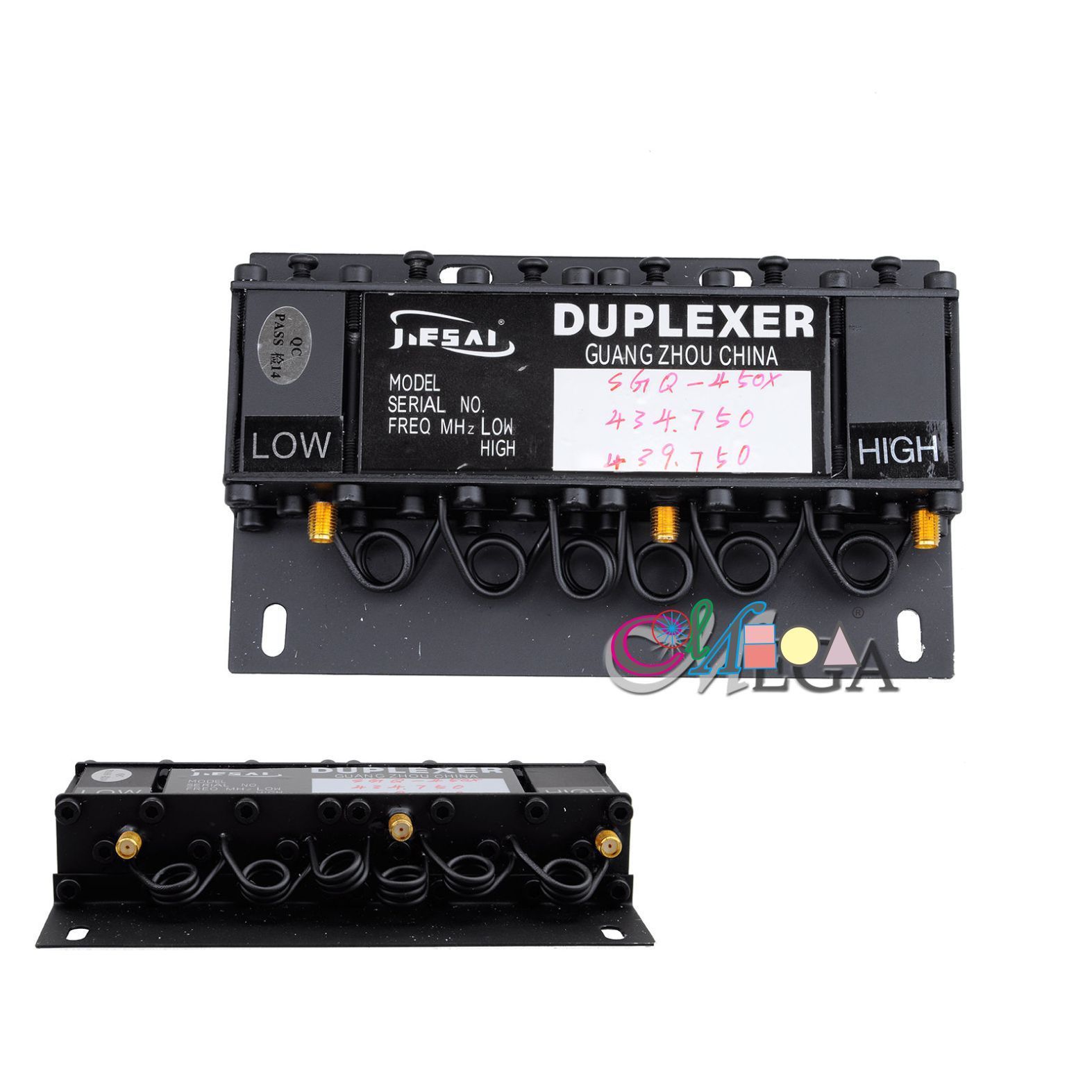

SGQ450X-SMA 20W Duplexer UHF 6 Cavity SMA Connector
Desciption:
- 20W UHF Duplexer 6 Cavity(SMA-connector)
- Size: 9.5cm x 15.5cm x 3cm
Specifications:
- 20W RF power input.
- 6 cavity Design
- Minimum Tx and Rx frequency difference: UHF 3.5Mhz
- Maximum Tx and Rx frequency difference: UHF 15Mhz
- Power Isolation >75dB
- Power loss <1dB
- Easy to build your repeater
- UHF 400-500Mhz - Free Frequency Tuning - send me the high / low frequency
- SMA connector
Note:Request High and Low frequency for Factory testing. Please let us know.
Package List:
- 1x 20W Duplexer UHF 6 Cavity (SMA-connector)
