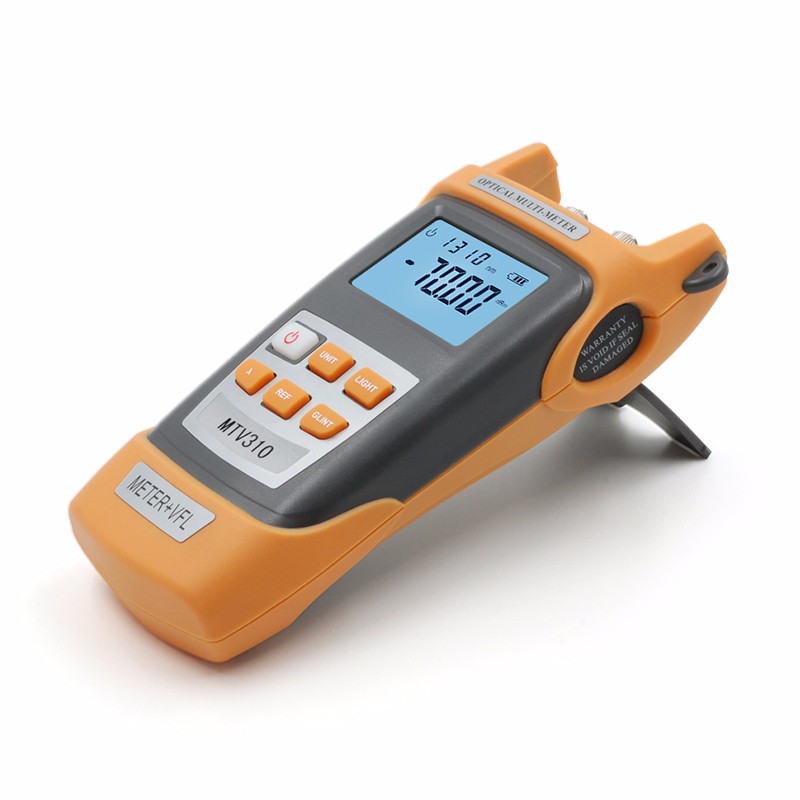

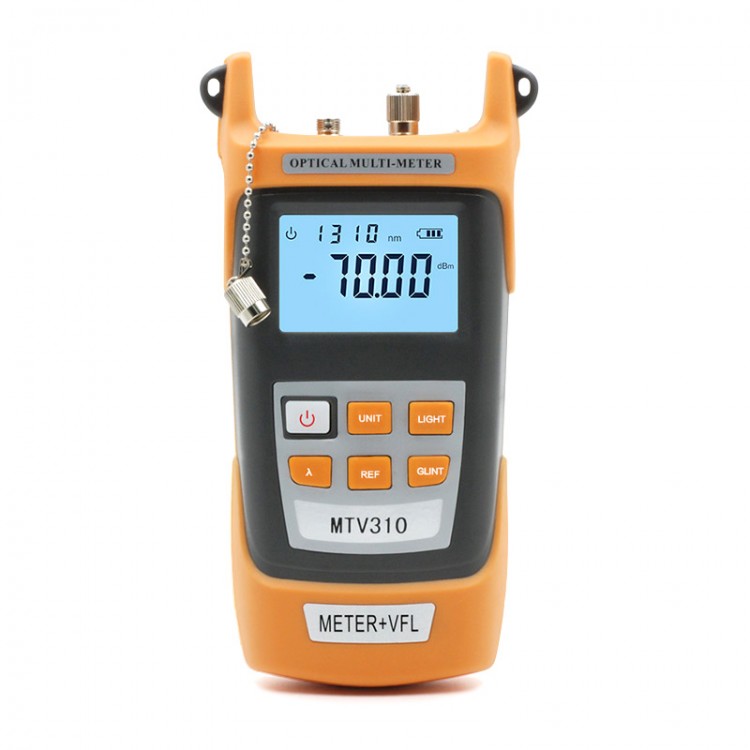

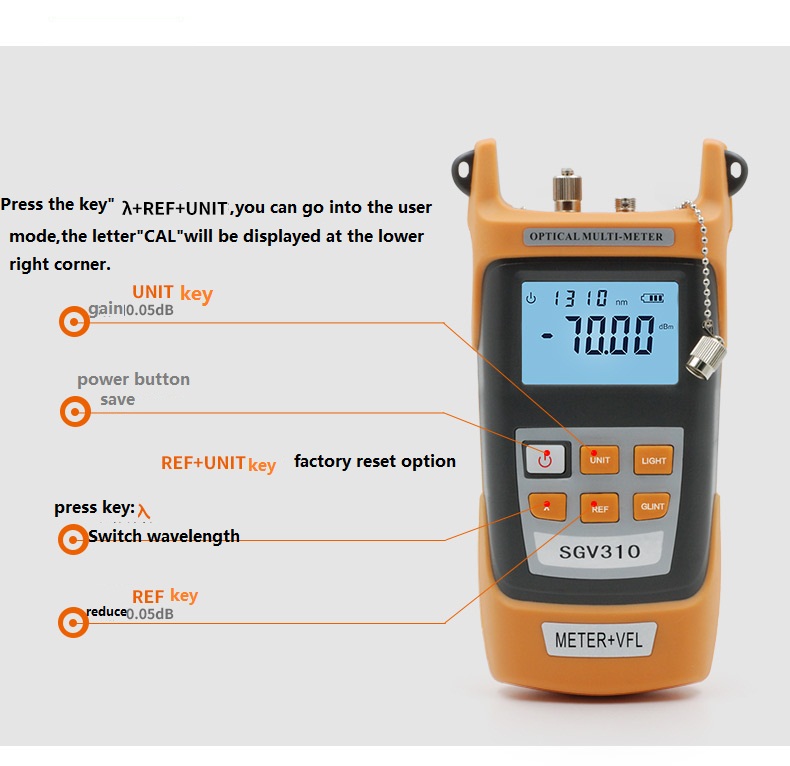

SGV310 All In One Fiber Optical Power Meter Cable Tester Visual Fault Locator Testing Pen

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.62
  • Price in reward points: 466 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.69 $44.76 $43.36 $41.49 Contact US
Quantity:

SGV310 All In One Fiber Optical Power Meter Cable Tester Visual Fault Locator Testing Pen

Product Description:
- SGV310 series of portable optical power meter is a kind of accurate and durable portable instrument for the installation, operation and maintenance of optical fiber network specially designed..
- Product has a compact shape, can choose to switch backlight display and automatic shutdown function, optical power ultra wide test range, precision testing accuracy to generic interface and design. At the same time, linear index (MW) and nonlinear indexes (DBM) and wavelength selection screen display.
- This instrument features complete, easy to use, easy to carry, is each fiber optic technology and construction personnel must be equipped with the maintenance tools.

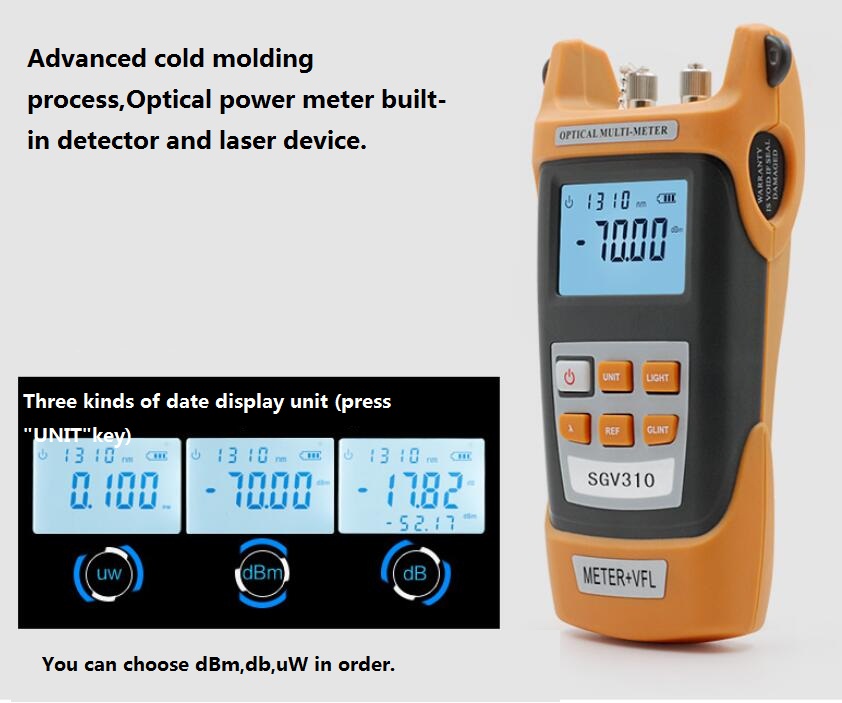

- Power:LCD shows the measured optical power, dBm, mW, uW, nW,, dB, 850nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm,1625nm etc.

Specifictions:
- Model:SGV310
- Power Meter:Measuring Range(dBm):-70~+3 or -50~+20
- Detector type:InGaAs
- Uncertainty (dB):+0.2(5%)
- Calibration wavelength (nm):850, 1300,1310,1490,1550,1625nm
- Display precision (dB):0.01
- Laser Source:Output Power mw:10(optionl)
- General Specification:communication:RS232
- Operating Temperature:-10~+60
- Storage Temperature:-25~+70
- Auto Off:>10minutes
- Dimension (mm):190*100*48
- Power Supply:3pcs 1.5v AA Batteries
- Available wavelength:800-1700nm
- Uncertainty: ±5%
- Resolution: 0.01dB

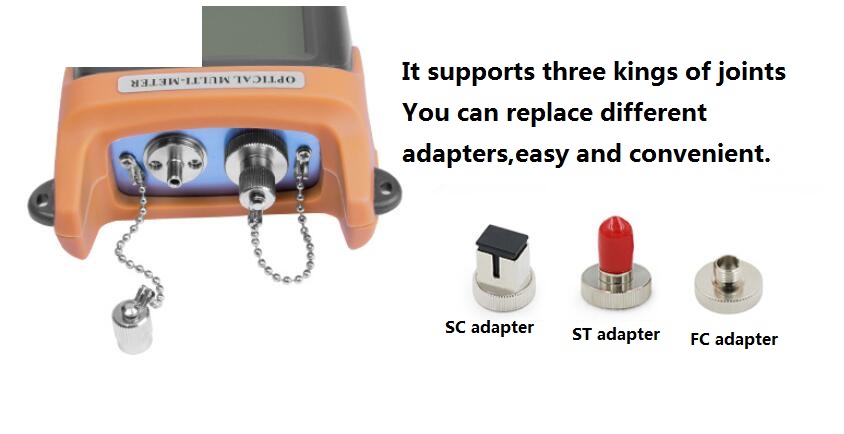

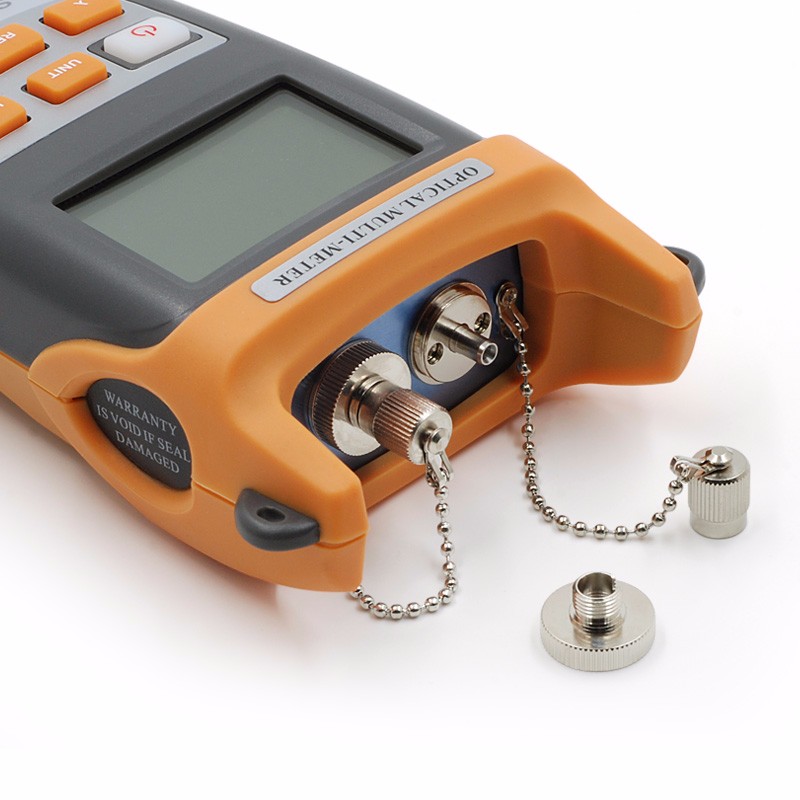

- Optical connector: interchangeable FC,SC/ST with built-in universal 2.5mm adaptor

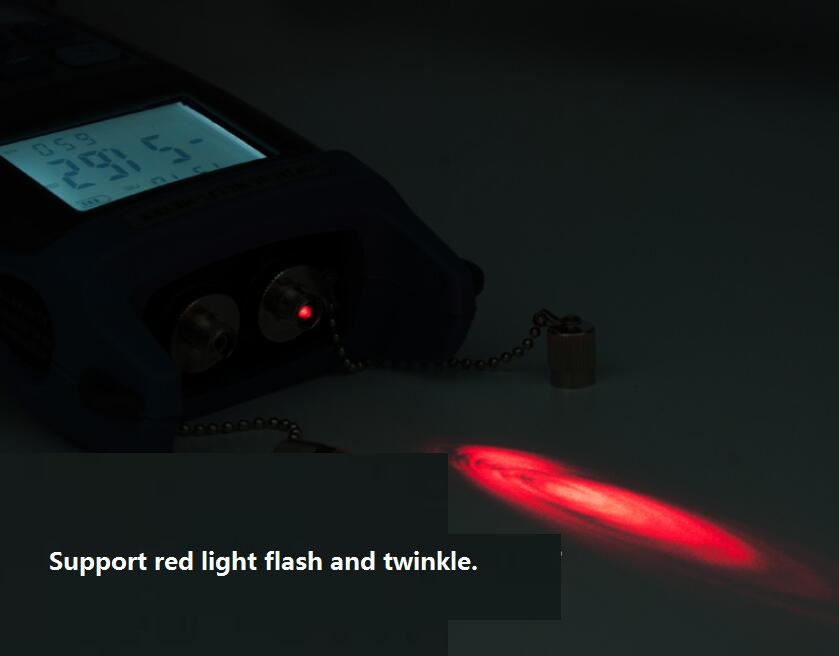

- Visual Fault Locator Output power: 10 mw
- Central wavelength: 650nm
- Duration: more than 48 hours
- Weight(g):400

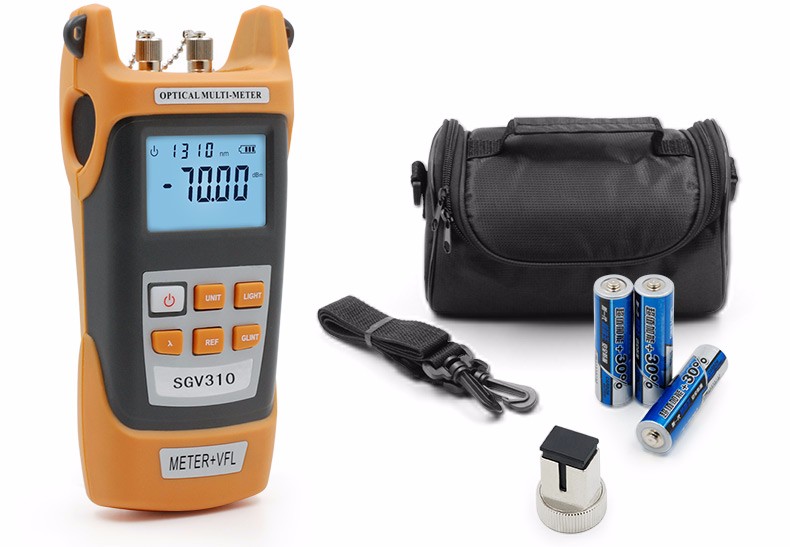

Package List:
- 1  x  SGV310 All In One Fiber Optical Power Meter
