Shortwave Radio Transceiver HF 20W SSB/CW/AM 0.5-30MHz w/ Built-in Antenna Tuner XIEGU G90

Availability: In stock, usually dispatched in 1 business day

  • Price:$482.07
  • Price in reward points: 4821 Reward Points: 48
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $472.43 $462.79 $448.33 $429.04 Contact US
Quantity:

Shortwave Radio Transceiver HF 20W SSB/CW/AM 0.5-30MHz w/ Built-in Antenna Tuner XIEGU G90

Description:

As the first model of the Xiegu G-series, G90 is a portable 20W HF amateur radio transceiver for advanced hams (radio license needed), suitable for outdoor activities and emergency rescue.

With SDR architecture and built-in auto antenna tuner, G90 has excellent transmit and receive performance, which brings user a highly configurable and functional experience. The G90 has a separate display that can be separated from the host unit and connected via a VGA cable.

Features:

▶ High performance front end narrowband ESC preselector
▶ Frequency range of 0.5-30MHz
▶ SSB/CW/AM three working modes
▶ 1.8 inch high brightness color TFT LCD screen
▶ ±24k bandwidth spectrum display with waterfall
▶ Software defined narrowband filter (CW mode: 300Hz)
▶ Detachable Display Unit: The detachable display design allows you to flexibly arrange the position of the host radio.
▶ Up to 20W of RF power
▶ I/Q output for interfacing with a XDT1 panadapter

Basic Parameters:

- Receiving Frequency Range: 0.5MHz~29.999999MHz
- Operating Voltage Range: 12~15V DC
- Transmitting Frequency Range: 1.8~29.999MHz (Amateur Band only)
- Standby Operating Current: 750mA Max.
- Working Modes: SSB/CW/AM
- Transmit Working Current: 8A Max.
- Operating Temperature Range: 0℃ ~ 55℃
- Frequency Stability: ±2ppm for 30 minutes after power on
- Machine Weight: About 1kg

Parameters of Receiver Unit:
- Sensitivity: Better than 0.25uV @12dB Sinad (PRE: ON)
- Dynamic Range: 90dB
- Adjacent Suppression: 60dB
- Audio Output Power: 0.5W@ 4Ω
- Selectivity: SSB 2.4kHz / CW 300Hz

Parameters of Transmitter Unit:
- RF Output Power: 20W
- Spurious Suppression: ≥50dB
- Carrier Suppression: ≥50dB
- Sideband Suppression: ≥50Db

Parameters of Automatic Antenna Tuner:

- Initial Tuning Time: ≤12s
- Second Time of Tuning: ≤12s

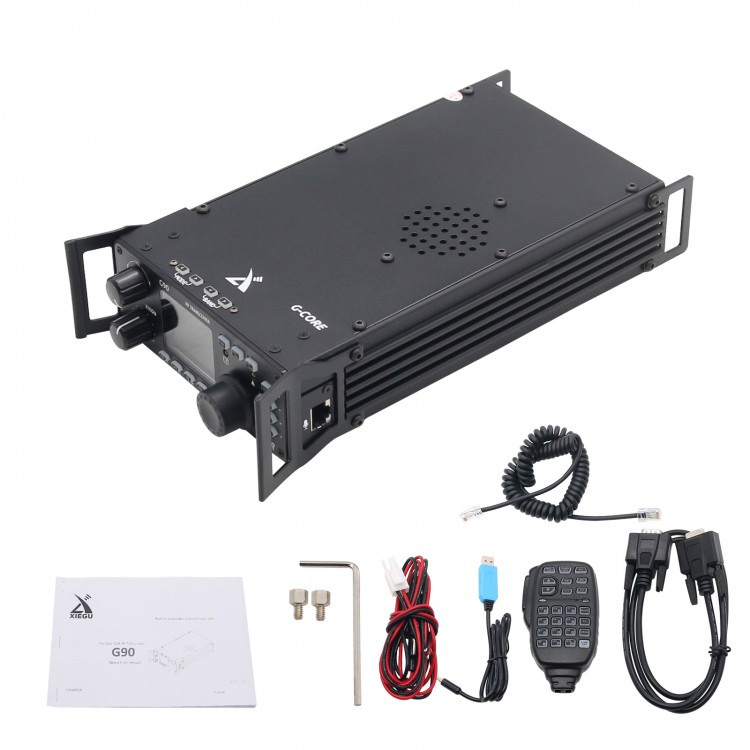

Package Included:
- 1 x HF Transceiver
- 1 x User Manual
