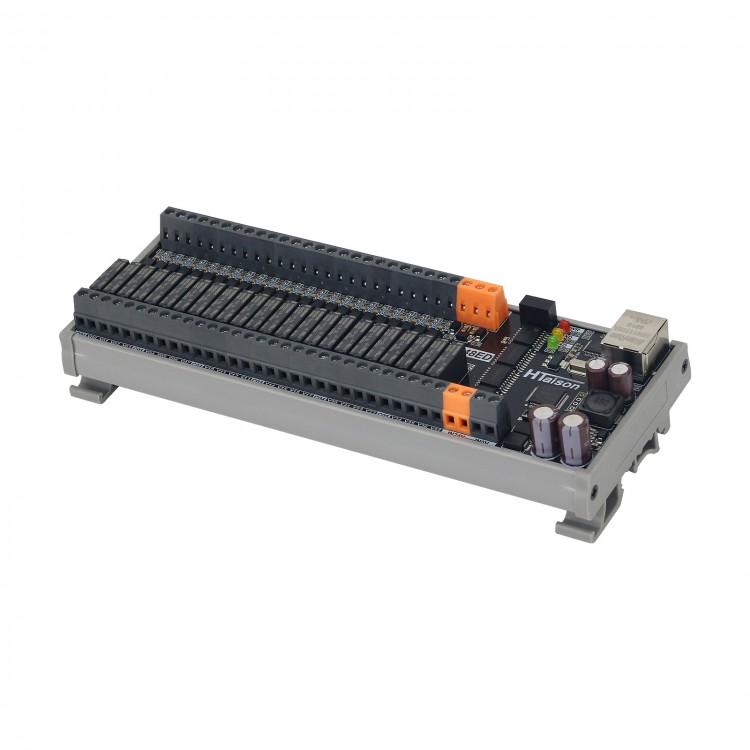

SHT-48ED PLC IO Module For Modbus RS485/RTU/TCP 48-Way Relay Lifespan 20 Million Times
Features:
- TCP-10/100Mbps
- RS485-RTU
- 2.5KV signal isolation
- Transmission rate 20Mbps
- Transmission distance can reach 1200m/3937ft
- With TVS protection
- Input 24-way signal acquisition (compatible with NPN/PNP signal input)
- 24-way outputs, relay output, contact life 20 million times, current 5A
- Support multiple baud rates and calibration modes
- A variety of PLC host computer program case references (for Siemens, Mitsubishi, Omron, Delta, Xinje, VIGOR, Weinview, Kunluntongtai, Modbus Poll, etc. Communication programs can be written on behalf of users)
Product Parameters:
- Supply voltage/current: DC24V/1000mA
- Communication interface/communication protocol: for RS-485, RJ-45/Modbus-RTU, Modbus-TCP IP
- Baud rate/station number: RS485-9600bps, 19200bps, 38400bps, 57600bps, 115200bps, 8 data bits 8-stop bits 1-no inspection N/1-255. RJ45-10/100Mbps full duplex, self-adaptive, IP configurable
- Transmission distance/signal isolation: 1200M/2.5KV
- Support function codes: 0x01 read coil status, 0x02 read discrete input, 0x03 read save register, 0x05 write single coil, 0x06 write single register, 0x0F write multiple coils
- Number of relays/contact type: 24pcs/Ia type
- Contact rated voltage/current (maximum): 250V (AC), 110V (DC)/5.0A
- Coil voltage/action current/power consumption: DC24V/7.5mA/180mW* output points
- Service life: Mechanical life: more than 20 million times (on-off frequency 180 times/min); electrical life: more than 100,000 times (3A 250VAC, 30V DC, under resistive load)
- Number of input signals/signal type: 24pcs/compatible with NPN/PNP signal input
- Use environment: temperature: -40℃ to +70℃, humidity: 5~85%RH (should be free of icing and condensation)
- Installation method: standard rail installation DIN35

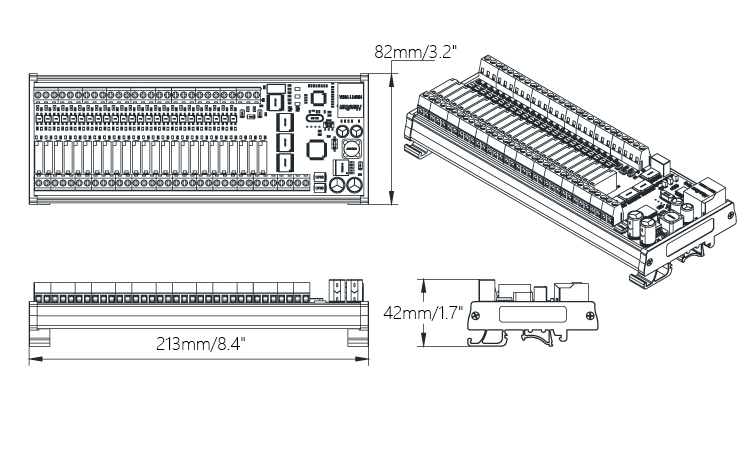

- Dimensions: 213 x 82 x 42mm/8.4 x 3.2 x 1.7" (LxWxH)
- N.W.: about 359g/0.8 lb
Package Included:
- 1 x IO Module
