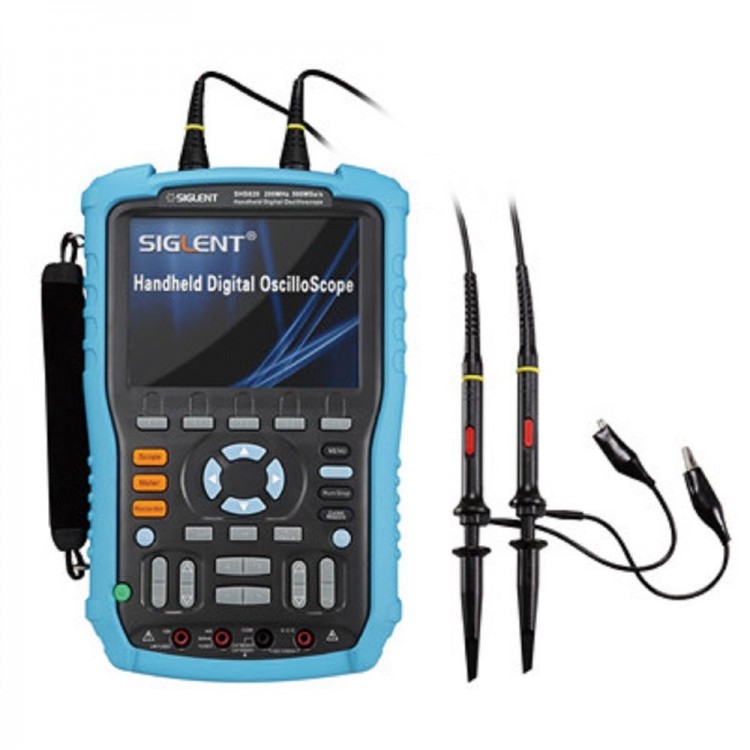

Siglent SHS806 Handheld Digital Oscilloscope 60MHz 2CH 1GSa 5 TFT USB Multimeter


Product overview:

- The SHS800 series handheld oscilloscope provides oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions all in one package. It inherits the SHS1000 series stable performance and high performance along with the flexibility to use on a workbench or in the field.

Features and Benefits:
- High-performance oscilloscope
- Bandwidth: 60MHz ,100MHz, 150MHz, 200MHz
- Real-time sampling rate: 1G Sa/s
 Equivalent sampling rate: 50G Sa/s
- Memory depth: 2Mpts

Data recorder function

- 7M internal storage, up to18 hours recording time
- USB port, up to 3000 hours recording time
- Record, replay and zoom function supported


High precision multimeter

- 6000 counts display
- Accurate measurement of DCV,  ACV, DCI, ACI
- Accurate measurement of Resistance, Diode, Capacitance, Continuity


TrendPlot

- 32 measurement  trendplot  analyzer
- Scope: 800k points capacity, more than 24 hours recording time
- Meter: 1.2M points capacity 9320 hours recording time at 0.05Sa/s

Bandwidth 60 MHz
Rise time ≤ 5.8 ns
Real-time sampling rate 1 Ch: 1 GSa/s
2 Ch: 500 MSa/s
Equivalent sampling range 50 GS/s
Vertical sensitivity 2 mV/div ~ 100 V/div
Memory depth 2 M
Time Base Range 5 ns ~ 50 s/div
Trigger type Edge, Pulse, Video, Slope and Alternative
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
Multimeter
DC voltage 60 mV / 600 mV - 1000 V: ±(1% + 5 digits)
AC voltage 60 mV / 600 mV - 750 V: ±(1% + 5 digits)
DC current 60.00 mA - 600 mA / 6 A - 10 A: ±(1.5% + 5 digits)
AC current 60.00 mA - 600 mA / 6 A - 10 A: ±(1.5% + 5 digits)
Resistance 600 Ω - 60 MΩ: ±(1% + 5 digits)
Capacitance 40 nF / 400 nF - 400 μF: ±(4% + 5 digits)
Diode 0 - 2 V
Continuity <50 Ω buzzer sounds
General characteristics
Max. display 6000
LCD size 5.7" (320 × 234)
Ports USB interface, USB host
Power Lithium battery: 7.4 V, 5000 mAh
DC adapter: 100 - 240 V, 50/60 Hz, 9 V 4 A output
Dimensions 63.2 × 259.5 × 53.3 mm
Weight 1.5 kg



SIGLENT SHS806 Handheld Digital Oscilloscope Package
- Digital oscilloscope SIGLENT SHS806 — 1 pc.
- Passive probe — 2 pcs.
        1:1
        1:10
- Power cord — 1 pc.
- DC power adapter — 1 pc.
- Test lead – 2 pc.
- Probe calibrator accessory — 1 pc.
- USB cable — 1 pc.
- User manual — 1 pc.
- Software CD — 1 pc.
