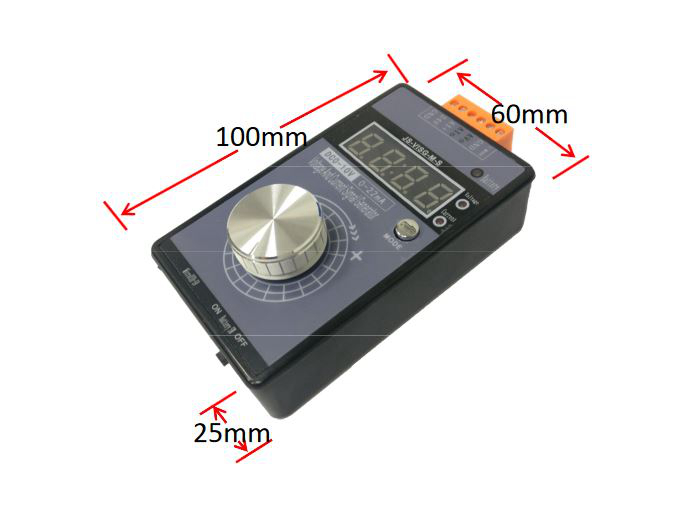

Signal Generator 0-10V 0-20mA High Precision Voltage Current Simulator Debugging Source (No Battery)
Download User Manual:
http://pro564176.pic1.ysjianzhan.cn/upload/JS-VISG-M-S_UM_V201EN.pdf
Features:
- 3 power supply modes: DC15-30V/USB-5V/Lithium battery (not included);
- Voltage and current regulation can be switched with one button, independent wiring, and simultaneous output;
-
Current output 2, 3, 4 wire passive, active fully compatible, can be
connected to analog passive 2-wire pressure sensor, temperature sensor;
can also be connected to active 3, 4-wire PLC, inverter, servo drive,
flow Valve, etc.;
- The output is short-circuit protected and the power supply is reverse-protected;
- Multiple output ranges: 0-3.3/5/10/2-10/1-5V...0-20/0-22/4-20mA...
- Multiple display modes: voltage and current/100.0% percentage/50.0H...
- Coarse adjustment and double adjustment mode, the adjustment number of turns can be set;
- Encoder knob 360 degree stepless adjustment, stable and durable
- 4-digit high-definition digital tube, two decimal points are adjusted with high precision, and the output can be calibrated;
- Pluggable terminal block, easy to install and carry.
Power Supply Modes:
- DC 15V-30V external power supply, can share 24V power supply of PLC and other equipment;
- (Micro USB) Universal interface for Android, can be connected to power bank/ charger/ computer USB port, etc.;
- 1000mAh/3.7V lithium battery power supply (not included).
Specifications:
- External Power Supply: DC 15-30V 1W (Non charge)/ 5W(Charging);
- External microUSB-5V current 0.2A (no charge) / 1A (charge);
- Voltage output 0-10V adjustable, accuracy O.01V calibrated, maximum current 100mA, short circuit protection;
-
The current output is adjustable from 0-22mA, the accuracy is 0.01mA,
the current sampling resistor is 10-500 ohms, and it can be
short-circuited.
- The digital tube displays 4 digits, two decimal places;
- Encoder knob 1 pulse number 20.
Package Included:
- 1 x Signal Generator
Note:
- Other items pictured are not included, for demonstration purposes only.
- Battery is not included in the package.
