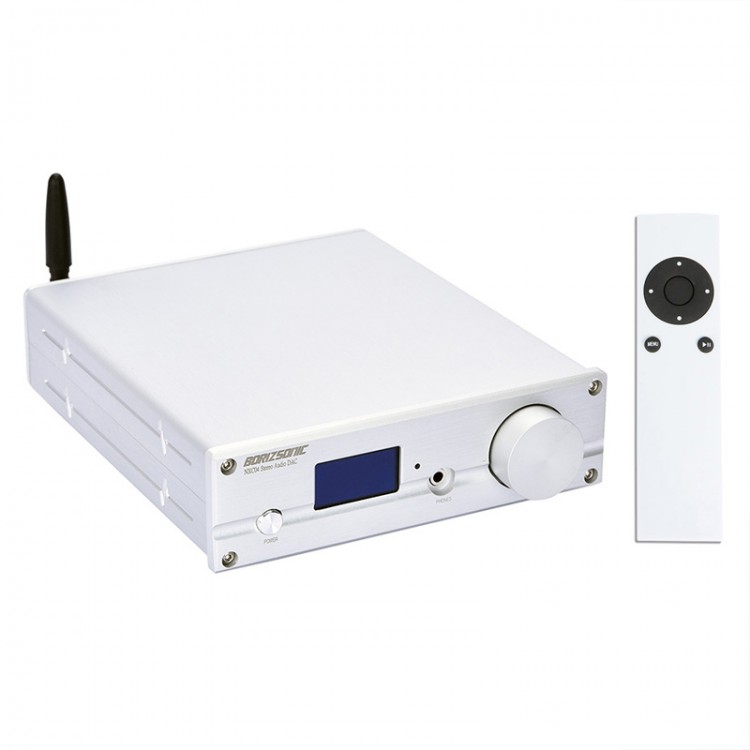

Silver NXC04 AK4493 Bluetooth 5.0 USB DAC Headphone Amplifier + Original Plastic Remote Controller

Silver NXC04 AK4493 Bluetooth 5.0 USB DAC Headphone Amplifier + Original Plastic Remote Controller

Features:
- High-quality Sound Effects: Digital combination, HiFi-level listening effects, let you be on the scene.
- Hardware Decoding: Use CPLD digital shaping technology for AK4493EQ's multifunctional DSD Bluetooth decoder, soft control for ARM, and DSD hard decoding. CSR8675 Bluetooth 5.0 chip supports for APTX, APTX-HD. USB receiver for XMOS-208, TPA6120 professional headphone amplifier. Small size, exquisite workmanship, easy to use.
- Strong Compatibility: Built-in Bluetooth, USB, coaxial and optical fiber connection functions. It is suitable for most digital electronic products on the market. Can be used with projectors, TVs, computers, mobile phones, etc.
- 7 PCM filtering modes to meet different various needs:
* MODE 1: fast roll-off, linear phase filter;
* MODE 2: slow roll-off, linear phase filter;
* MODE 3: apodizing, fast roll-off, linear phase filter reserved;
* MODE 4: fast roll-off, minimum phase filter;
* MODE 5: slow roll-off, minimum phase filter;
* MODE 6: hybrid, fast roll-off, minimum phase filter;
* MODE 7: brick wall filter.
- AK4493EQ is one of the very popular DAC chips in HiFi market. It uses OSRD technology, which can greatly reduce out-of-band noise and provide a purer sound for players. AK4493EQ comes with 6 kinds of digital filters. When the DAC uses different algorithms for digital-to-analog conversion, sound will be slightly different, which forms different digital filters. Compared to EQ equalizer, it can give us a different sound experience without causing any distortion.
- Module For XMOS XU208: The memory of the second-generation chip for XU208 is twice as high as that of U8, and the computing speed reaches 1000MIPS, which is twice the speed of U8 500MIPS. Better support for high-resolution audio, especially DSD Native. The highest hardware solution supports DSD256.
- Microcontroller For ARM: The core for ARM 32bit is for Cortex-M3, the highest operating frequency is 72MHz, low power consumption, analog-to-digital converter, dual sample and holding function, temperature sensor.
- Digital Shaping Chip For XILINX: With digital shaping technology for XILINX, it improves the jitter of clock signal, with better details, and at the same time can prevent popping when switching.
- Digital Receiver Chip For AKM: The sound of coaxial and optical input is more natural.
- DA101C Digital Isolation Module: Can eliminate noise and protect the device from high voltage hazards.
- Professional Desktop Headphone Amplifier Driver Chip: TPA6120A2 is used for decoder headphone amplifier output, OP275 is used for independent operational amplifier amplification, and high-quality relay output protects your high-end headphones.
- As a Tablet PC/Mobile Phone Decoder: Devices for iPad and iPhone with interface for Apple Lightning can use Camera Adapter For Apple's Lightning to USB. Tablet PC and mobile phones for Android can be connected to the decoder through an OTG cable, turning the device into a turntable, and using the decoder to obtain better sound effects than that of internal decoding. (Attention: As some devices for Android do not support OTG, there is no guarantee that the decoder is compatible with all devices for Android.)

Specifications:
- Brand: BORIZSONIC
- Model: NXC04
- Output Interface: 2.0 stereo RCA interface/3.5mm headphone output
- USB Input: PCM: 44.1khz-384khz/16-32Bit; DSD64-DSD256/DOP/Native
- Coaxial/Optical Fiber: PCM: 44.1khz-192khz/16-24Bit
- Bluetooth Input: Bluetooth 5.0 supports Apt-x/Apt-X-HD
- THD+N: <0.0005% at 1kHz; <0.0006% at 20-20kHz
- Receiving Audio: USB/mobile phone OTG, Bluetooth, coaxial, optical fiber
- SNR: >124dB at 1kHz
- Frequency Response: 20-20kHz/±0.35dB
- Headphone Amplifier Power: 700mW*2 at 32Ω; 156mW*2 at 300Ω
- Product Size: 150 x 44 x 169 mm

Package Included:
- 1 x Set of Bluetooth DAC Headphone Amplifier

Note: It is assembled and ready to use.

Link For BRZHIFI-XMOS Interface USB Driver & Player Installation Guide:
https://pan.baidu.com/s/1g0J10J2v5Z3nuqHmk91bHg   Password: jnl6
