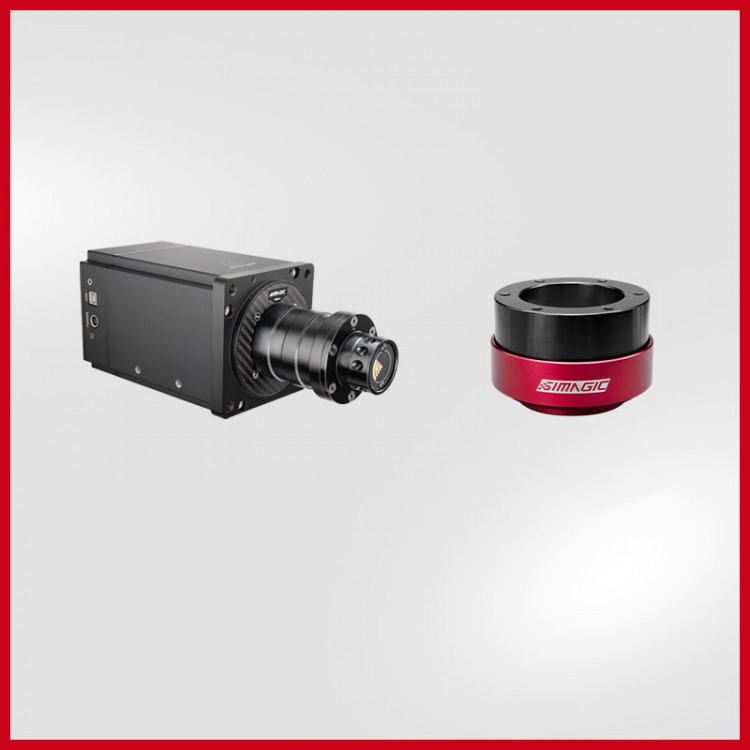

Simagic Alpha-BW Direct Drive Wheel Base SIM Racing Wheel Base with Quick Release for PC Games

Simagic Alpha-BW Direct Drive Wheel Base SIM Racing Wheel Base with Quick Release for PC Games

Technical Parameters:
- Motor Type: Custom 5-pole servo motors
- Maximum Torque: 15 Nm
- Wireless Power Supply Tech: Included
- 3rd Filter: Included
- Encoder Resolution: 262144 ppr
- Processor Frequency: 200MHz
- Response Rate: 40 Khz
- Mounting Bracket: Optional
- SIMAGIC Quick Release: Optional
- Building Materials: Aluminum Alloy and Carbon Fiber
- Dimensions: 276.5mm x 110mm x 110mm/10.9" x 4.3" x 4.3"
- Mounting Holes: M6 X 4 Threaded Holes
- Net Weight: 7.9kg/17.4lb

Package Included:
- 1 x Wheel base
- 1 x Screw kit
- 1 x Power supply
- 1 x USB cable
- 1 x Quick release

Packaging Details:
- G.W.: 9kg

Disclaimers
- Due to the real-time changes in product batches and supply factors, in order to provide accurate information on product information, specifications, and product characteristics, nothing may adjust and revise the text descriptions, picture effects, and other content on the above pages in real time to match the reality of the product performance, specifications, index, parts and other information; in the event that page modifications and adjustments are necessary, no special notice will be given.
- All product pictures and content are for illustrative purposes only. the actual results (including but not limited to appearance, colour and size) may vary.

Download User Manual:
https://image.simagic.com/profile/upload/2022/08/16/41a7d396-805a-439e-b0da-0b81632e2511.pdf

Note:
- Quick release is not included in the package.
