SINCOTECH DO908 Car Race Dash Full Sensor Dashboard LCD Rally Gauge

SINCOTECH DO908 Car Race Dash Full Sensor Dashboard LCD Rally Gauge

Parameters:
- Speed: 0-255Km/h
- Engine Rotate Speed: 0~9000rpm
- OP1 Oil pressure(OIL P.): 0~150PSI or 0~10BAR
- OP2(BOOST.P) -15~45PS or -1~3BAR
- OP3*Air oil ratio: 20~10：1
- OP4 Oil Temperature: (OIL T.)0~150℃ Or 0~300℉
- OP5(WATER T.): 0~150℃ or 0~300℉
- OP6 Exit temperature(EXT T.): 0~1,300℃ or 0~2400℉
- Voltage: 10~16V
- Clock: 24H Clock
- Corresponding speed pulse: 2/4/6/8 pulse
- Pulse: 1,274~16,562/km (equals to pulse2~26)
- Number of Corresponding Cylinders: 1/2/3/4/5/6/8(in circle)

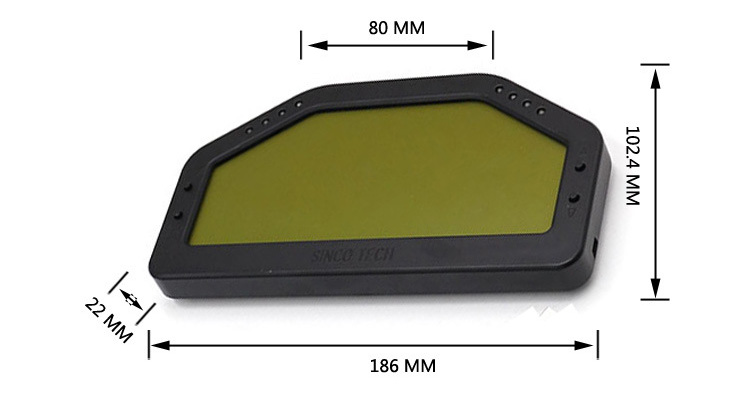

- Package Size: 26*25*9CM
- Weight: 1.5kg

Specification:
- Brand: SINCO TECH
- Model: DO908
- Display type: number
- Operating voltage: 10V-16VDC
- Applicable models: all models are versatile
- Connect: Harness connection( More stable)
- Commodity accessories: The dashboard consists of the Monitor the Data Processing Unit(DPU)
Water temperature and oil temperature sensor Boost sensor etc.



Main Function:
1. Loaded low power LCD screen manufactured by the company
2. The use of advanced system
3. In connection with the products after you can manually control
the regulation of nighttime and daytime backlight brightness
4. 0 - loaded 100KM / H test function
5. Have Chinese and English two display modes, optional
6. Life waterproof sealing performance
7. Display items can be set arbitrarily.
8. 8 LED with sequential indicator function
9. Loaded clock function
10. Using a fixed screw mounting fit dashboard
11. ODO, TRIP display
12. In the oil and water temperature and exhaust temperature can be started from 0 DEG C display
13. 100 meters acceleration record playback

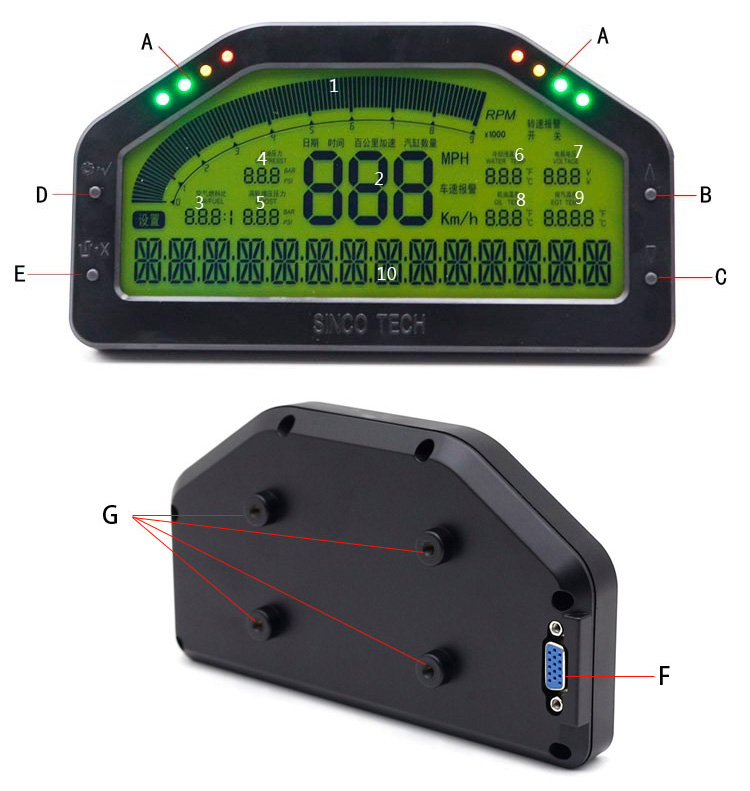

A: LED Indicator ; with 4LEDs in both sides,the color are Green/Green/Yellow/Red, the LEDs will lighting acoording the Rotate speed increasing
B:Upper option button; could choose parametter and goes to up/down to set the parameter
C:Down option button:could choose parametter and goes to up/down to set the parameter
D:Menu button: used for get menu page and confirmation of the parameter
E;Exit key: used for exit menu and cancel the parameter adjustment
F:Data port: Use for connect to the sensor data connet port
G: Installation position:used to install the device to the car by screws

DO908 Manual Instruction: Click here

Package Included:
- 1 x Dash display
- 1 x Power leads
- 1 x Installation Stand
- 1 x OBD Unit
- 1 x Manual
