SINO Digital Readout 3 Axis EDM with KA500 Linear Scales Complete DRO Kit

SINO Digital Readout 3 Axis EDM with KA500 Linear Scales Complete DRO Kit


DRO Features:
- Double seals design for better protection against water;
- 100% laser calibration;
- Advanced optical measuring system;
- High noise immunity and EMC design;
- High reliability and durability switch design;
- Robust casting, chromium plated panel;
- Ultra low temperature rise transformer;
- Ergonomically designed keyboard;
- Can be easily installed.

Basic Functions:
- mm/inch Transformation                 Absolute/Relative Transformation
- Mid-split Function                           Simple “R” Function
- Smooth “R” Function                      Divide the perimeter of circle
- Save 200 workpiece zero points     Divide holes on an oblique line
- Mathematics calculation                 Tool diameter compensation
- Bevel process                                 Zero location autorest
- Error linear

Scale Length:970, 920,870, 820, 770, 720, 670, 620, 570, 520, 470, 420, 370, 320, 270, 220, 170 and 120 mm/ 5um;
You may choose any three scales within the 970/470/470mm/5um range. Scale length above refers to the real travel of the linear scale. Actual physical length is 143mm longer than travel. One inch equuals to 25.4mm.
We supply slim scale KA500 model to fit the cross slide of your lathe. Each KA500 scale costs an extra 20 USD.

Mounting drawing of slim KA500 scale

Installation guide:Click here

User manual:Click here

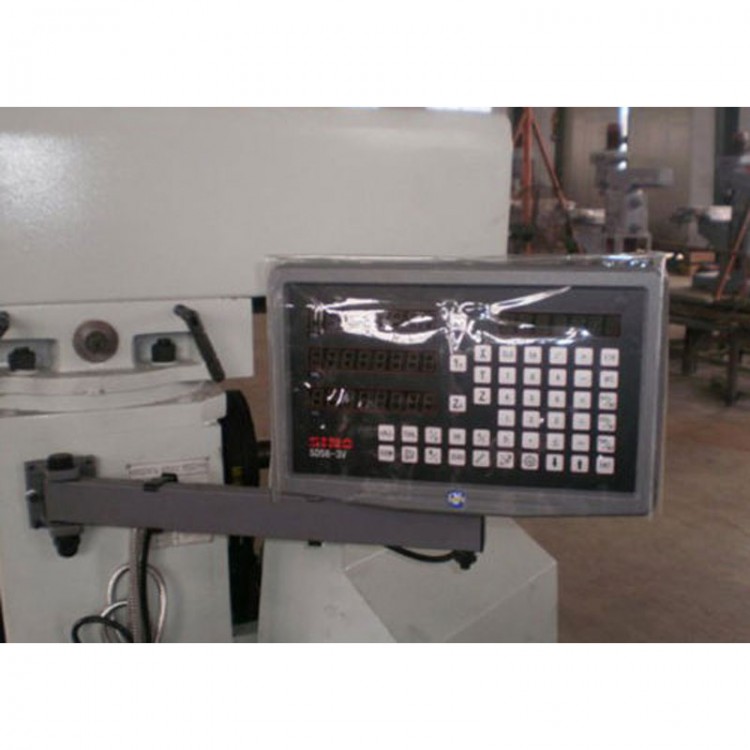

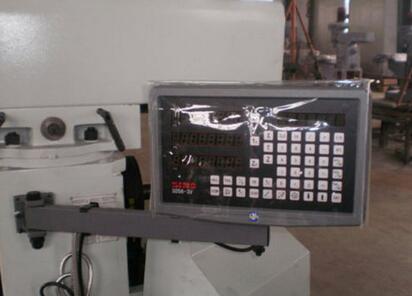

Content in the system:This is a complete kit. You just need to hook the readout system to your machine. It includes one guage (readout box, SDS6-3V with mill or lathe type swing arm), three scales (each with 3 m cable, longer cables are available), protective covers, brackets, etc, an english manual and all the accessories for installation.

Package List:
- 1 x Digital readout guage
- 1 x 3 m Cable
- 1 x Protective cover
- 1 x Brackets
- 1 x English User manual
