Skydroid H12 RC Receiver Transmitter RC TX RX (Mini Camera) 5.5" Screen for Aerial Photography Mapping

Skydroid H12 RC Receiver Transmitter RC TX RX (Mini Camera) 5.5" Screen for Aerial Photography Mapping

Description:

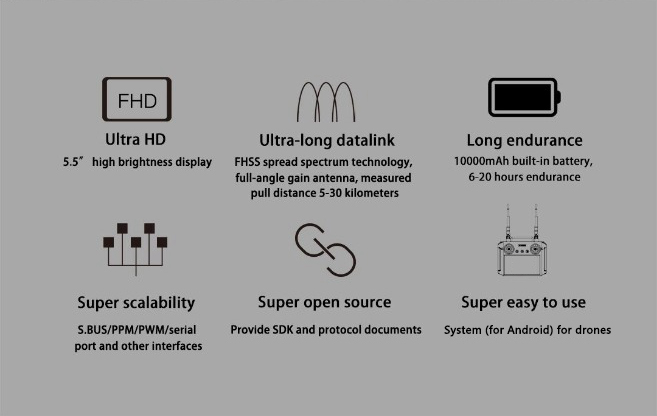

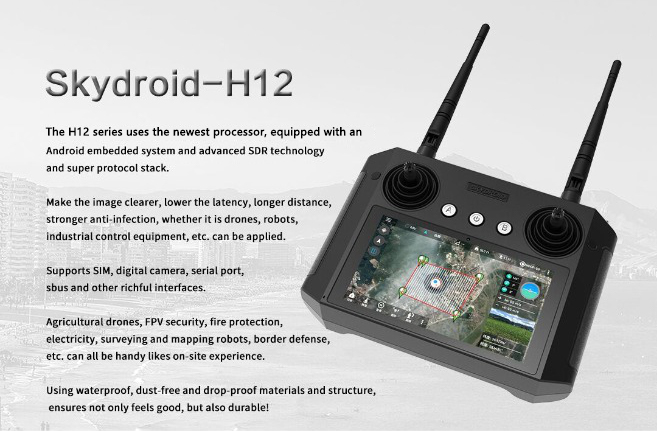

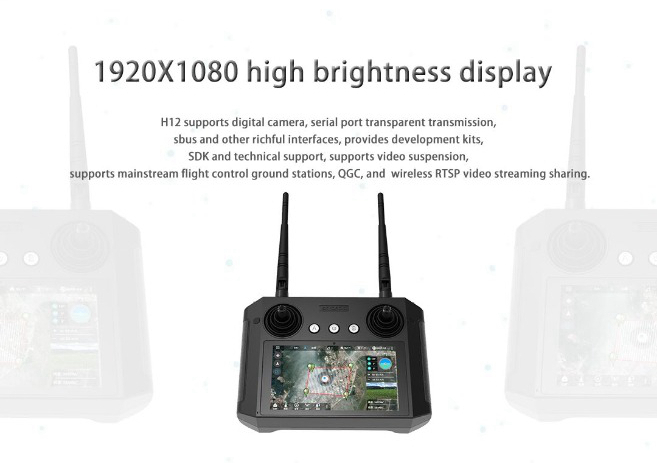

The H12 series uses newest Snapdragon 625 processor, equipped with an embedded system for Android and advanced SDR technology and super protocol stack, making the image clearer, lower latency, longer distance, stronger anti-infection. It can be applied to drones, robots, industrial control equipment, etc.

It is used to remotely operate helicopters, fixed-wing drones, multi-rotors, vehicles, ships, etc. for video/image transmission (camera optional), data transmission, telemetry, and control drone flight.

Specifications:
Transmitter:
- Model: H12
- Channels: 12
- Working voltage: 4.2V
- RF Power: 20DB at CE/23DB at FCC

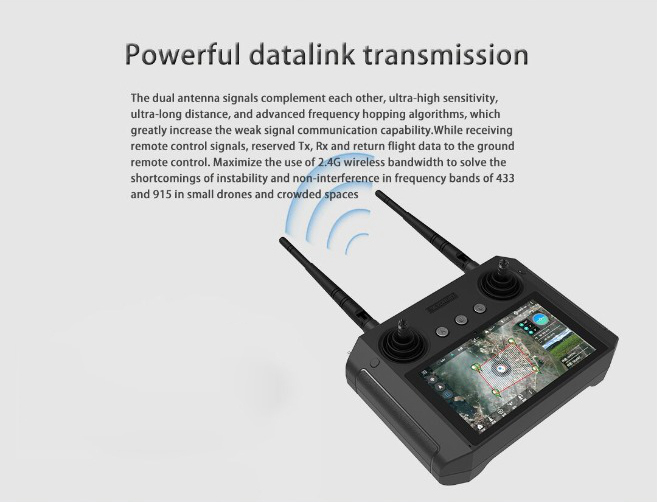

- Frequency: 2.400-2.483GHz
- Frequency hopping: Newest FHSS

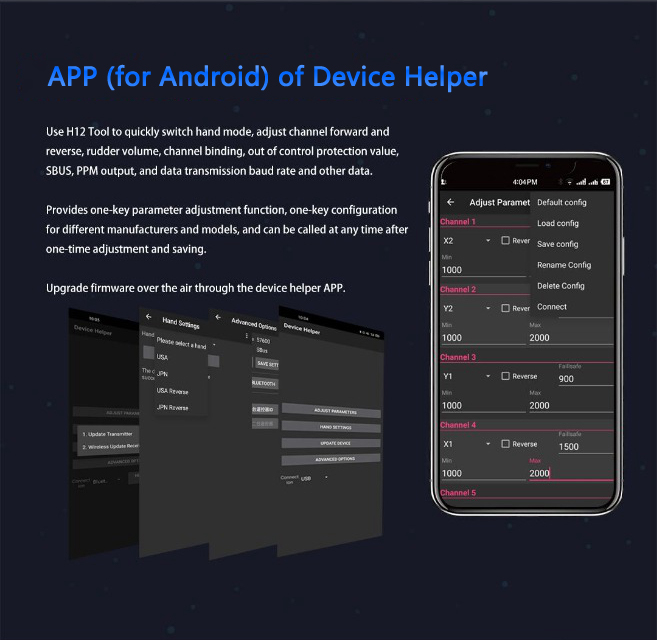

- Update way: APP Update online
- Weight: 530g/1.2lb
- Size: 190 x 152 x 94mm/7.5 x 6 x 3.7"
- Battery: 10000mAh

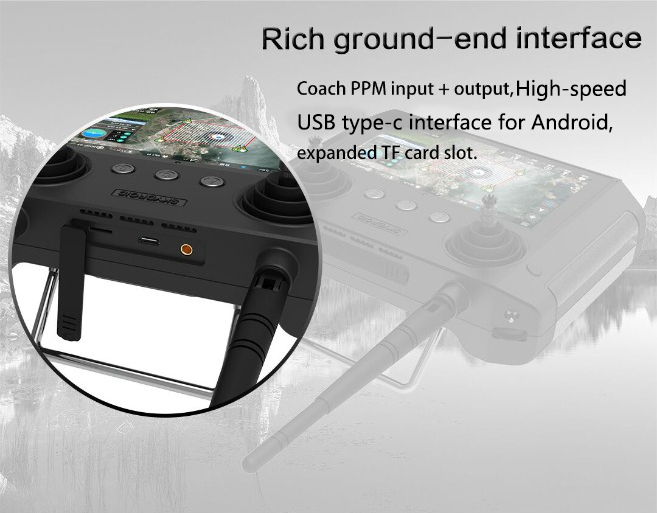

- Charging port: Type-C
- Applications: Helicopter, fixed-wing drone, multi-rotor, unmanned vehicle, unmanned boat, etc.

Receiver:
- Model: R12
- Channels: 12
- Working Voltage: 4.5-5.5V
- Working current: 140MA at 5V
- Size: 51 x 41 x 13mm/2 x 1.6 x 0.5"
- Weight: 14g/0.03lb

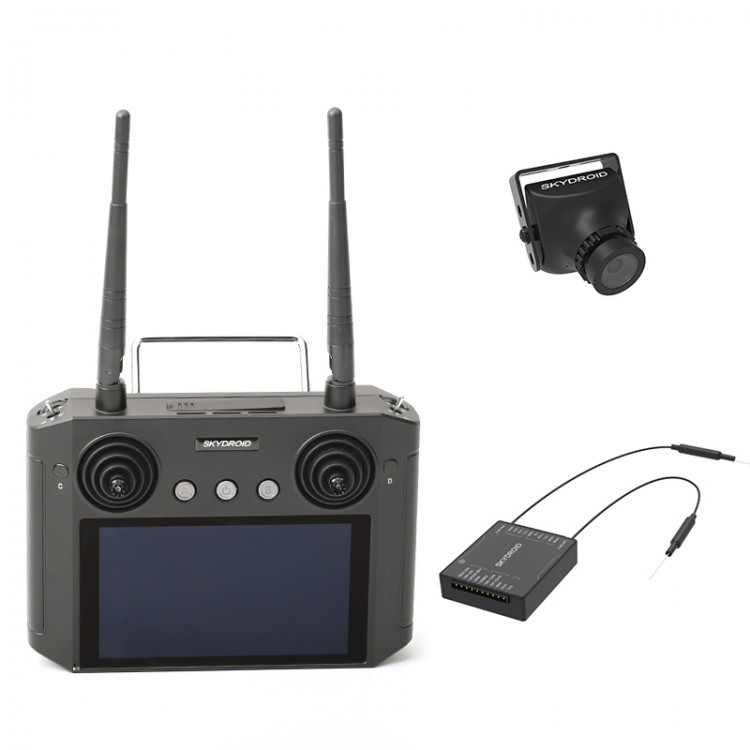

Package Included:
- 1 x Transmitter
- 1 x Receiver
- 1 x Camera

Note:
- Batteries are not included.
