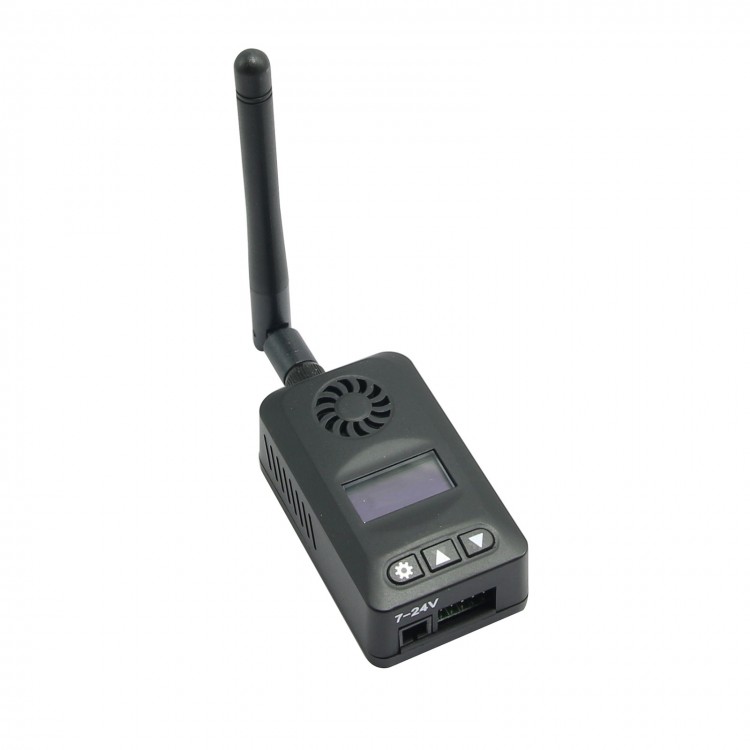

Skyzone N2000 5.8Ghz 32CH 2000mW AV Wireless Transmission Transmitter
Features:
- 128*64 super bright color digital display with High Brightness & Contrast , clearly visible under the sun
- Channel and Frequency clearly visible on screen
- Output power 2w, distance no less than 2Km with 2dbi Omni directional antenna
- 2Ch video input, Remote channel switching via spare channel on RC transmitter
- Support 2-6S battery and low battery alarm
- Battery Voltage display
- Screen Display: Current/Temperature/PA Power detection
|
|
Test Condition |
Min |
Typ |
Max |
|
Operating Voltage |
|
6.5V |
12V |
28V |
|
Output Power |
@25â |
27dbm |
30dbm |
33dbm |
|
Antenna Connector |
|
|
SMA Jack |
|
|
Supply current |
@12V |
0.5A |
0.6A |
1A |
|
Operating Temperature |
|
-10â |
|
80â |
|
Voltage detection accuracy |
|
±0.05V |
±0.1V |
±0.5V |
|
Current detection accuracy |
|
±0.05A |
±0.06AV |
±0.2V |
|
Temperature detection accuracy |
|
±5 â |
±5 â |
±10 â |
|
PA detection accuracy |
|
|
N A *1 |
|
|
Video Band Width |
|
5MHz |
6MHz |
6MHz |
|
Video Input Impedance |
|
|
75Ω/1Vp-p |
|
|
Audio input impedance |
|
|
6.5M H z |
|
|
Audio sub-carrier |
|
|
4.7KΩ |
|
|
Net Wight |
|
|
g |
|
|
Dimensions |
|
|
cm |
|
Package Included:
- 1 x 5.8G 2000mW transmitter
- 1 x Stock dipole whip antenna
- 1 x Power in harness
- 1 x Power out Video out Audio out harness
