SL-MINI Argon Arc Welding Modification Precision Pulse Controller AC220V Input Support 2T/4T Function with Foot Pedal Switch

SL-MINI Argon Arc Welding Modification Precision Pulse Controller AC220V Input Support 2T/4T Function with Foot Pedal Switch

Features:
- The integrated hanging mount design makes installation and carrying more convenient.
- All metal body is adopted, which is anti-collision, anti-aging and more durable.
- Flexible placement, can be placed on the upper side of the welding machine or on the side of the welding machine.
- AC 220V input, internal 12V transformer power supply motherboard, power cord integrated with the host, no longer worry about missing or losing power cord when carrying.
- The bottom is designed with a detachable snap on foot pad, which is easy to remove when the machine needs to be fixed in place with locking screws.

2T/4T Function:
- 2T: Default common function, press the switch once to work once, press and hold the switch to work continuously, release it to stop working.
- 4T: Press and release the switch once, and the machine will continue to work. Press the switch again to stop working (in 4T mode, single point spot welding does not work, just like before, press it once and work once).

Specification:
- Model: SL-MINI
- Shell material: metal
- Applicable machines: single use/dual use/triple use argon arc welding machines
- Input voltage: DC 5V 1A 50Hz
- Output signal: 3 - 48V
- Time mode:
  Welding time: 1 - 999mS
  Interval time: 1 - 999mS
- Power consumption: <3.5W
- Working modes: single point/continuous/argon arc welding/2T/4T
- Memory preservation: 20 groups
- Product size: 125 x 80 x 70mm
- Net weight: about 740g
- Frequency output:
  Pulse frequency: 1 - 20Hz
  Pulse duty-cycle: 1 - 99%

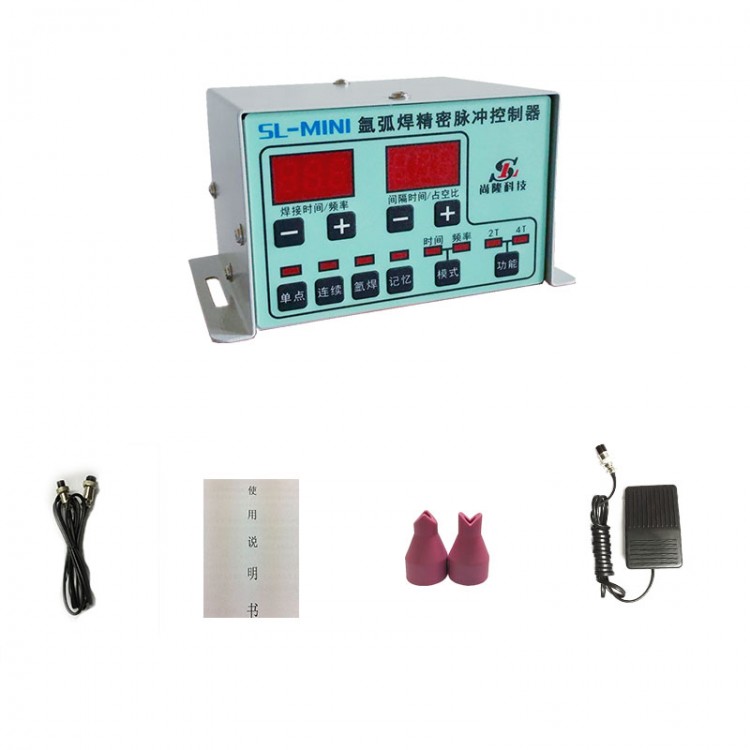

Package Included:
- 1 x Controller
- 1 x Power Adapter
- 1 x Power Cable
- 1 x Connection Cable
- 1 x User Manual
- 1 x Foot Pedal Switch
