Description:
- SL04 box supports for Artnet, sACN, hahan, MA2-NET lighting network protocols.
- Native support for MA2 onPC software, no need to crack, official download MA2 onPC can be used directly, like as the original equipment
- support for RDM.
- Support offline acquisition, playback and call.
- Support DMX in, support DMX in -> Artnet transfer to 3D or control software.
- Support cloning, interception and route of DMX universe.
- Support DMX512 system detection function (can be used as DMX512 detector).
- Built-in 54 kinds of RGB, RGBW effects (can be called externally).
- Support http, UDP, web, DMX in, DMX out, RS485, RS232 call, can meet all the call needs of the centralized control system.
- SL04 box build in Web APP.
- With USB virtual LAN card and RJ45 LAN card two network cards.
- With TF card slot.
- With 4PORT 2048 channels DMX512 output and DMX in/RS485 PORT, All with optoelectronic isolation and PTC, TVS protection.

Can support all this software (New software will be updated and added continuously):
- ArtNet, sACN (All have Artnet/sACN out software)
- Avolite Titan (Need Crack)
- CueluxPro
- DMXCreator
- Daslight4
- Daslight5
- ADJ myDMX5
- Madrix
- grandMA1 onPC
- grandMA2 onPC (Can unlock 256 universe 131072 parameters)
- Lightjockey
- ShowXpress
- Sunlite2
- Sunlite3
- SweetLight
- FreeStyler
- DMXControl
- PCDimmer
- MagicQ
- QLC+
- VJ
- SDK Source code
...

- This box is not an ordinary Artnet network box, it is a very powerful box, the box supports lighting network protocols for Artnet, sACN, hahan, MA2-NET, Native support for MA2 software, no need to crack, official download MA2 onPC can be used directly (like as the original equipment), support RDM, support offline capture, playback and call, support DMXin, support DMXin->Artnet transfer to 3D or control software, support cloning, interception and route of dmx universe, support DMX512 system detection function (can be used as dmx512 detector), Built-in 54 kinds of RGB, RGBW effects (can be called externally), support for http, UDP, web, DMXin, DMXout, RS485, RS232 call, can meet all the call needs of the centralized control system, note: RS232 call needs to add 1 module for a few dollars for level conversion, important note: RS232 can not be directly connected, RS232 level is +13V/-13V, box interface is 5V level.
- What's more: You don't need to install these functional software, We are all written in the box, Browse the box IP through the browser, Open the box web APP can be used, Truly simple, Worry-free, Ready-to-use, Cross-platform.
- Box supports a lot of professional lighting software, and most of them are "can be using, a working versions".

Hardware Configuration:
1: Type-C USB port has 2 functions

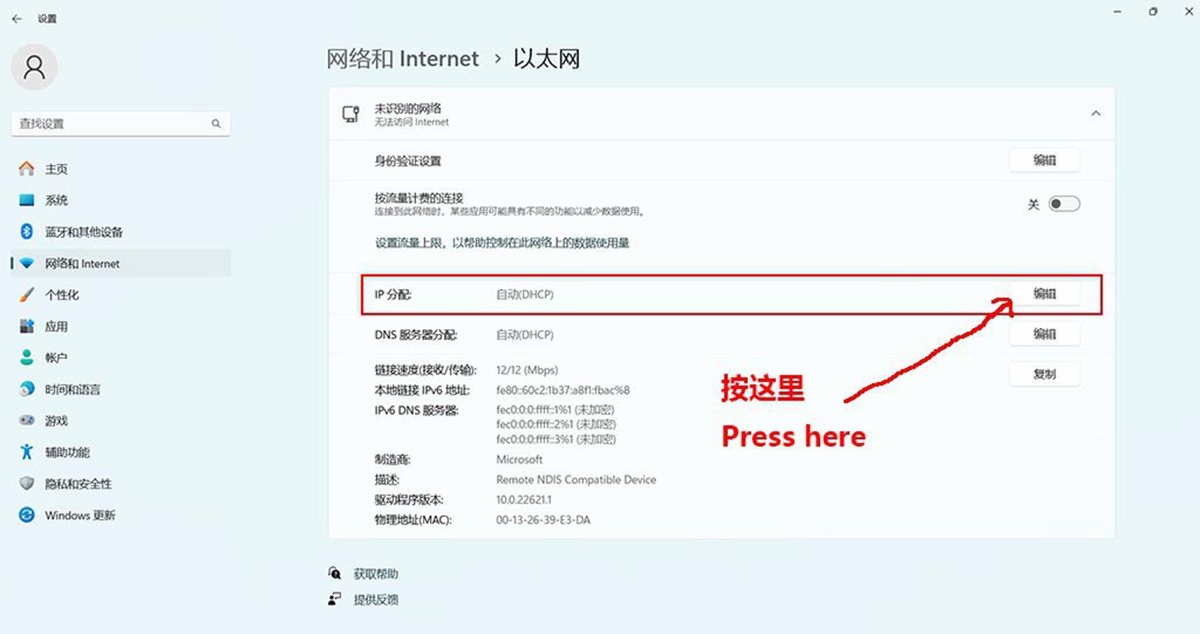

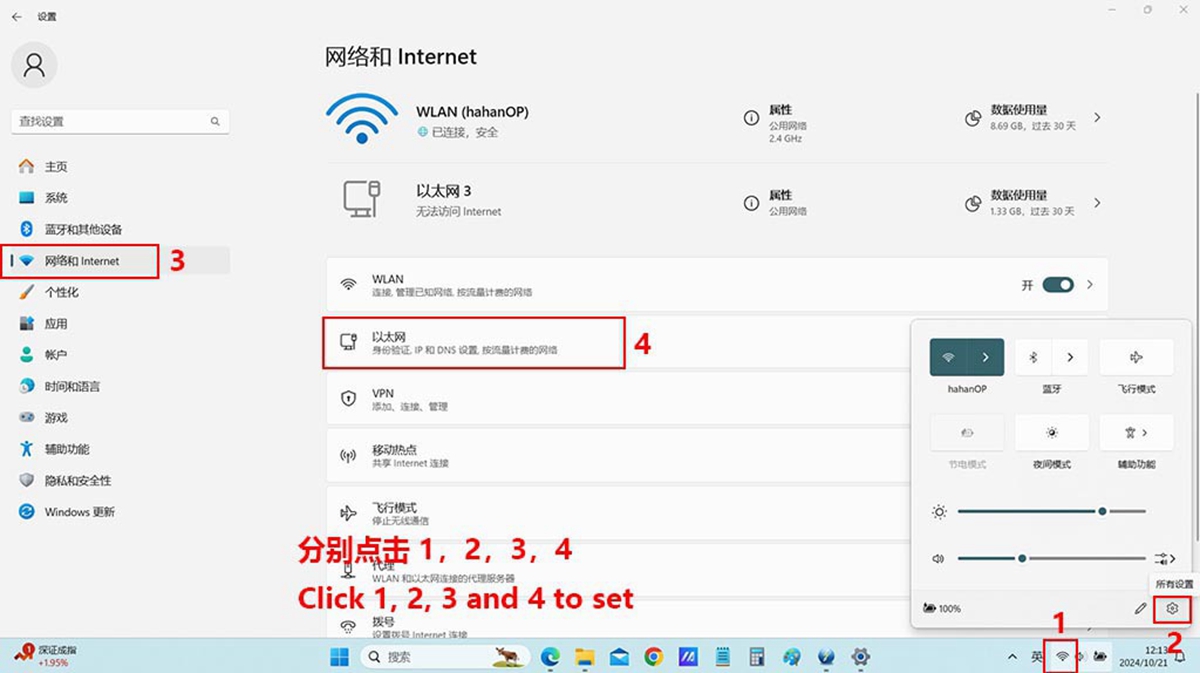

Function 1: If you directly plug in the computer USB interface, the USB of the box is the USB to network card function, after inserting into the computer, you don't need to install any driver, windows will automatically install the driver, a USB network card will be virtualized, the network data is transferred to the box through the USB network card, open the MA2 You can control the lights through Artnet, see the video teaching for the specific setting method. Note: The USB network card function supports for win7, 10, 11... and Linux system, but does not support for Apple operating system, LAN port can support for Apple operating system.
Function 2: Type-C is connected to a 5V power adapter, such as a mobile phone charger, at this time, Type-C USB only supplies power to the box, the box can be connected to network switches, computer wired network cards, routers and other network devices through the LAN port, and the box exchanges network data through the LAN port.
2: LAN port: built-in low-power adaptive 10M PHY, which can fully meet the data transmission requirements of 4-port DMX512. Note: The LAN network card and USB to network card of the box are two independent network systems, which can be used separately or together without interfering with each other.
3: TF card: support for FAT, FAT32, exFAT format of large-capacity TF card, save the captured dmx file online, offline playback or call playback. You can also store the html, JS, and CSS web page files written by the box web secondary development, and open them through a browser.

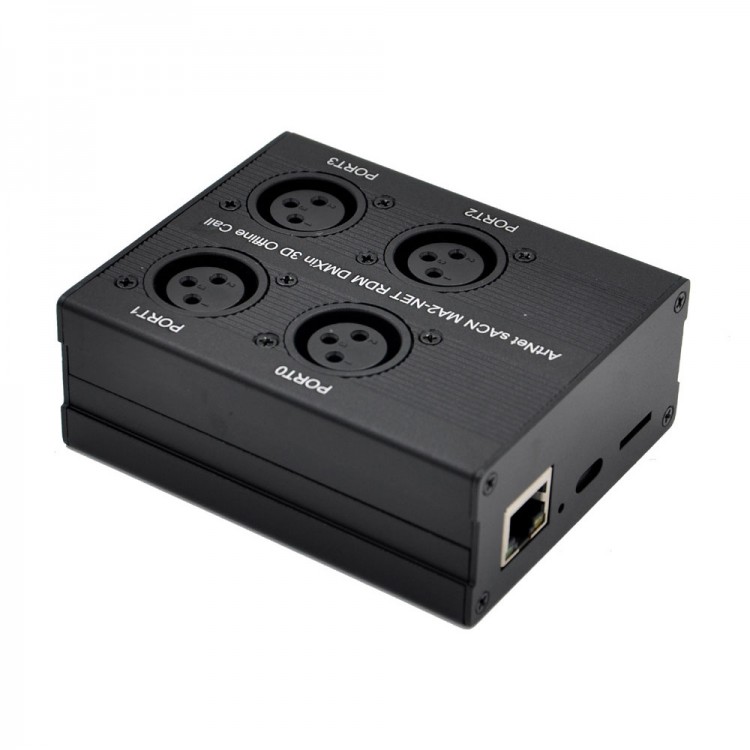

4: PORT out port: 4 standard DMX512 output, 2048 channels, each port with photoelectric isolation, each port output with PTC, TVS chip protection, foolproof. Among them, PORT3 is a multi-function port, which supports for DMXin, RDM, RS485 functions, and the input is also isolated.
5: Phoenix interface: This interface is to facilitate external devices to call the interface of the box, you can connect DMXin, RS485, RS232 (need to connect the level translation module), Phoenix port internal and PORT3 connection.
6: Built-in RTC time, the box will automatically time when it is power on, and the time will be automatically synchronized through the webui, which is convenient to record the real time when saving the DMX file, and the basis for sorting the file by time.

Professional DMX Software Support:
- That's our forte! Support more than 20 sets of professional DMX software.
- No plug-in: all versions of MA2 onPC from 2018 to the present are natively supported, and maybe the versions that are still under development are also supported, and you can use it by downloading the software directly.
- Supported by plugins: lightjockey, daslight5, myDMX5, sunlite, sweetlight, madrix3.6f, VJ....
- Free Support: for MagicQ, QLC+, FreeStyler, PCDimmer, DMXControl...
- If you have any good software that needs support, you can also tell us, basically all of them can be supported.

The Box Comes with Software:
- The box comes with software all build in the box, no need to install it into your computer, browse the IP of the box through the browser then can be run, and truly achieve cross-platform, These include:

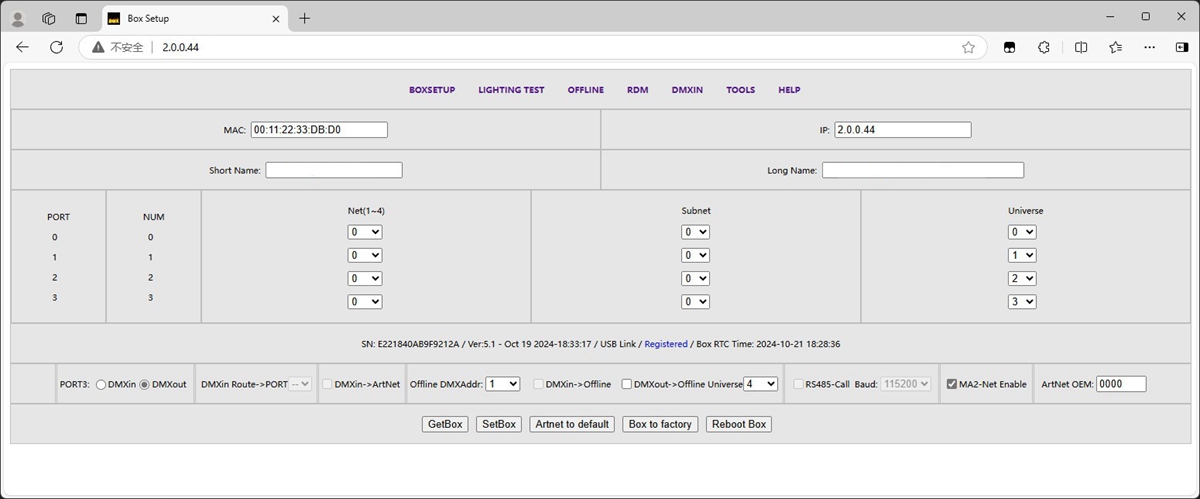

  1: Webui box setting function, including: for MAC, IP network settings, Artnet universe and Name settings, Artnet OEM settings (can simulate equipment from other manufacturers), Function module settings and so on.

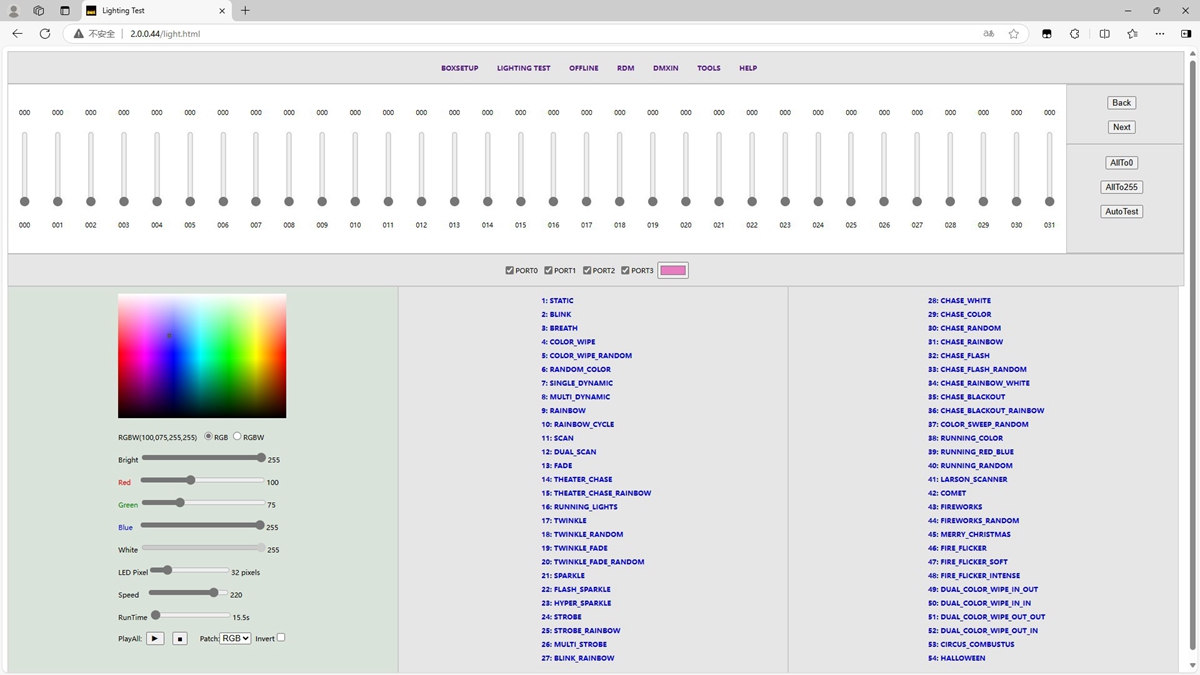

  2: The simple DMX console inside the box can easily detect the quality of the box or lighting fixture. RGB effect player.

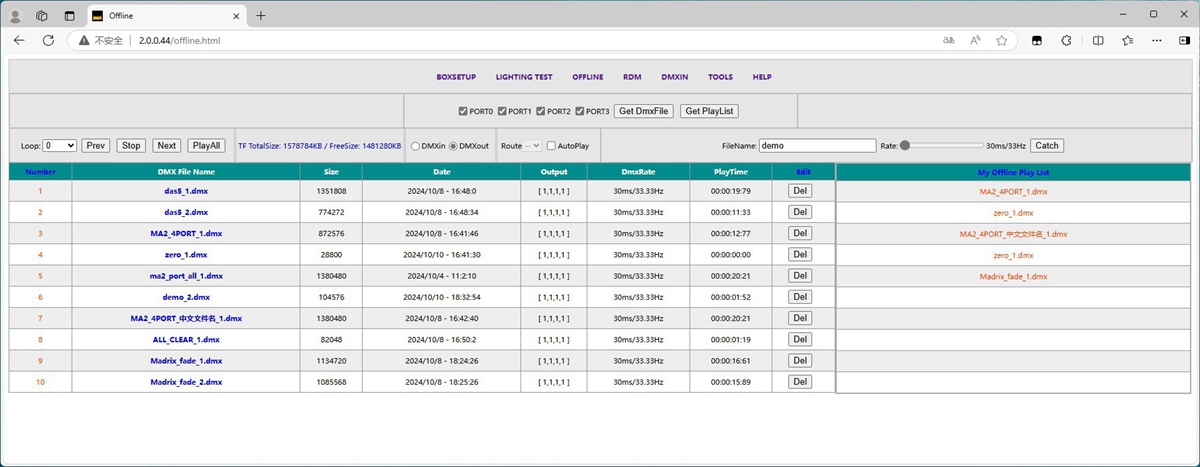

  3: Playlist editor that supports drag-and-drop, Offline Catcher & Player (supports different attribute sorting function and Chinese file name).

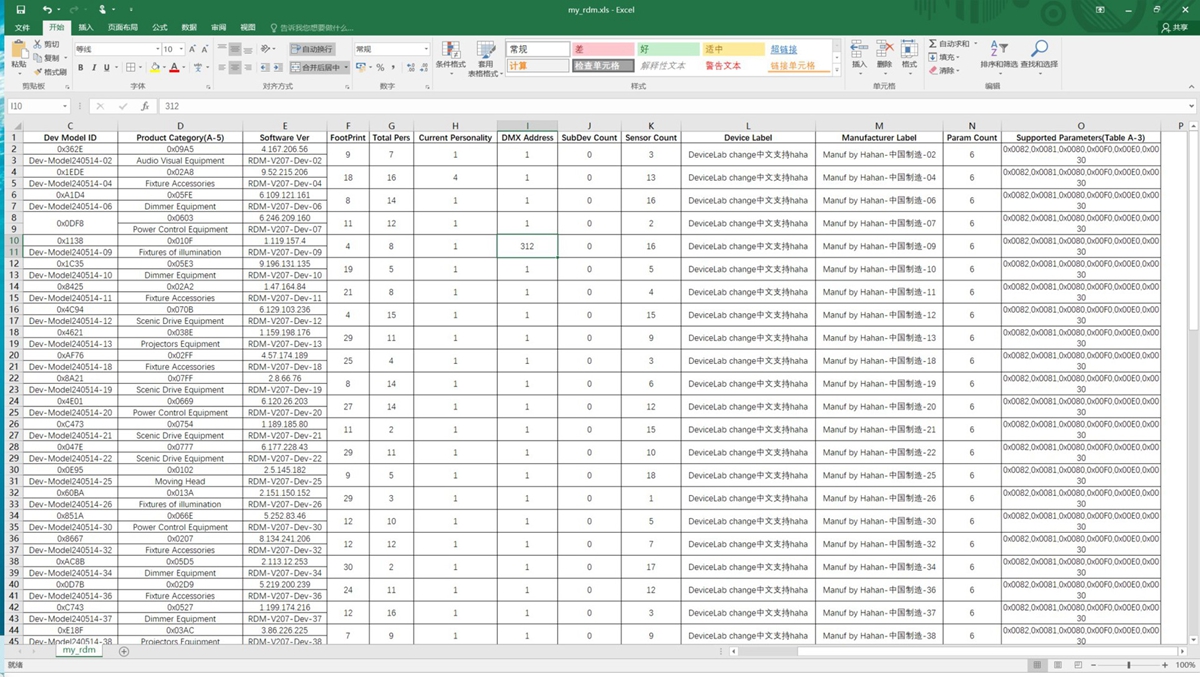

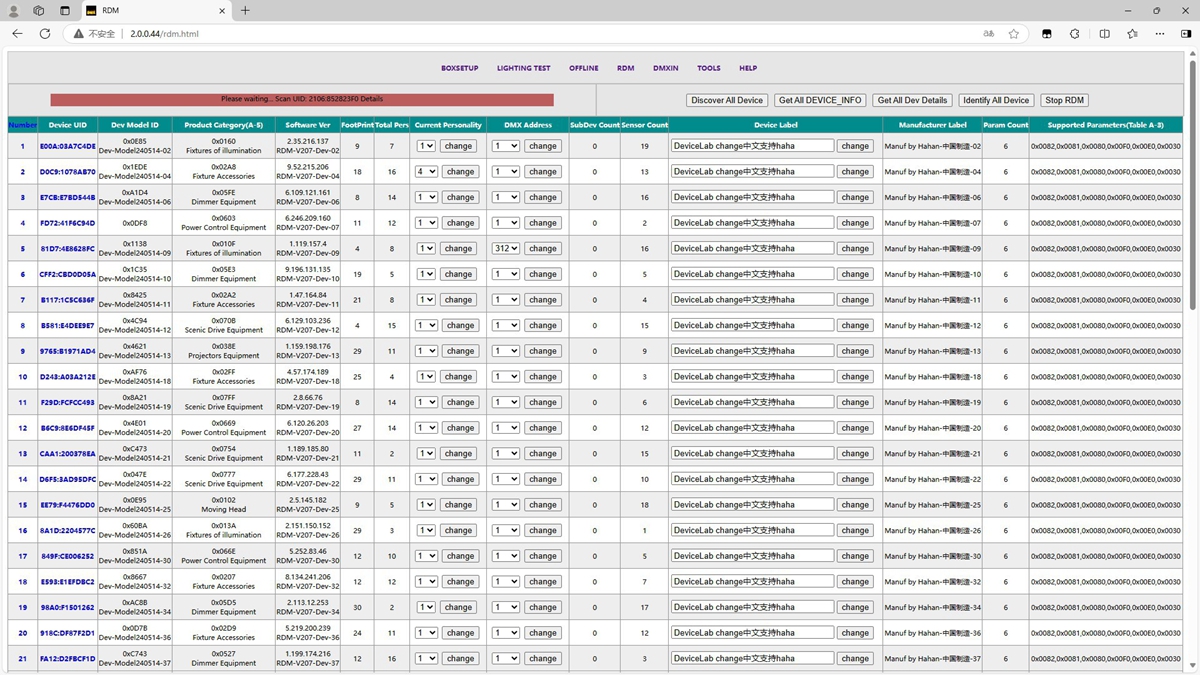

  4: Support for RDM function, RDM function includes: find and display all the details of the lighting fixture, modify the lighting fixture address, modify the lighting fixture mode, identify the device, mute device, modify the device label (support Chinese) and so on, the RDM table can be sorted by different attributes, can also be downloaded to the local, saved as an excel file, printed out, convenient for the gaffer to consult.
  Note: This function requires the lighting fixture to have RDM function, and some functions also need the lighting fixture to have this function, most of the lighting fixture only support a few commonly used RDM commands, such as search, mute, identify, modify the address and modify the mode of the function, do not have other additional functions.

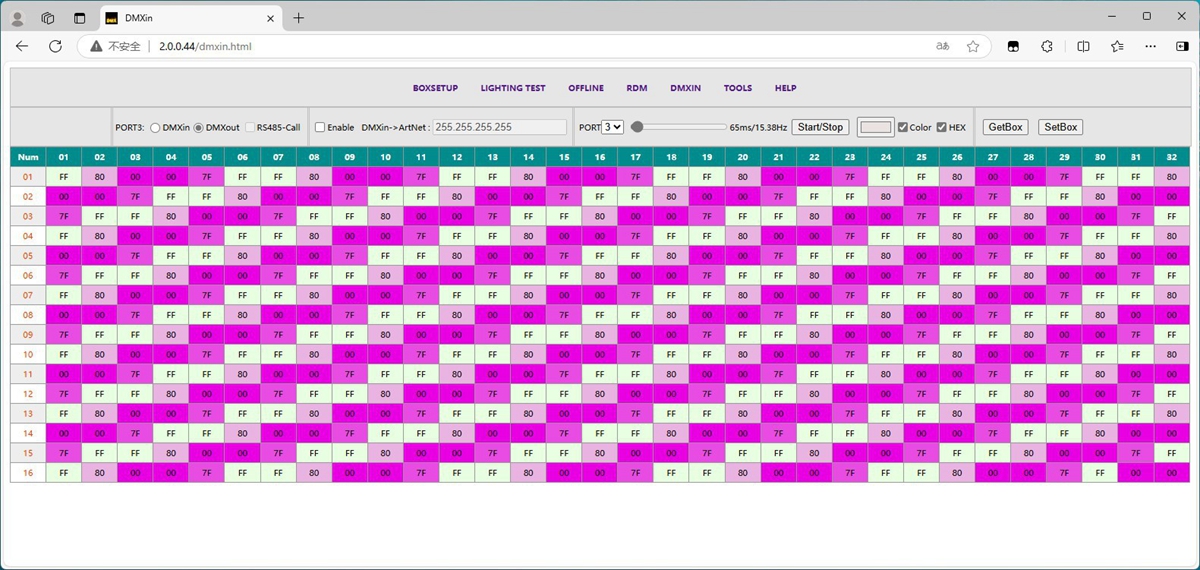

  5: DMXin and DMX hook, DMX route function, this function can capture the DMX512 signal of the physical console and the DMX512 data on the network, you can clone the light show of the physical console, you can also hook the physical console through the routing function, each channel displays the changed value in real time through different colors, which can be used as a dmx512 detector.

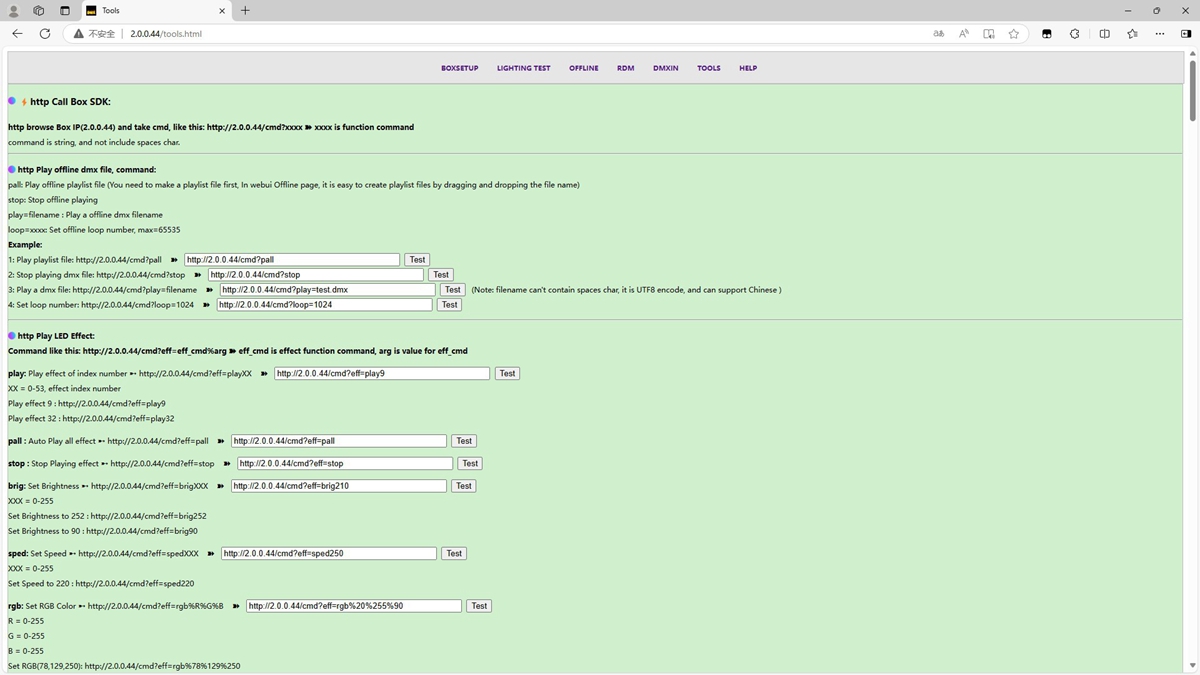

  6: Detailed secondary development documents and TOOLS functions.

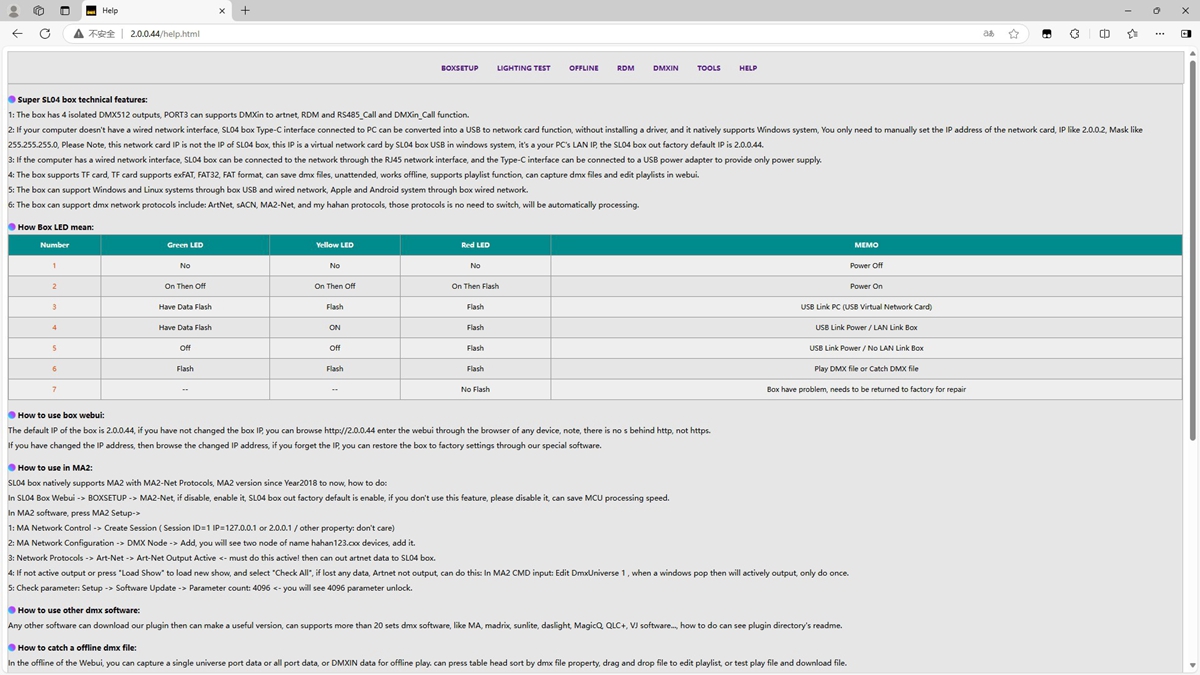

  7: help.
  Note: Many browsers will automatically add s to http when entering http browsing, and it will become https encrypted connection, please note that you can't add s, the box is a normal connection, and there is no SSL certificate in it. If the first time you browse the box IP, The web page has not been opened within 10 seconds, Basically, it is added s,You can press enter a few more times, The browser will reset the 443 port of the https encrypted connection, The browser will be changed to 80 Port, You can open it in seconds later.
- Tips: Many features may need to be understood by watching our video (please continue to pay attention to the website video updates).

Production Instructions:
- In order to make the box small and exquisite, powerful and loved by everyone, the author has put a lot of thought into the design of the box circuit and the appearance structure of the box.
- The pin size and spacing size of the PCB main chip in this box are only the size of a hair, and we can't produce it ourselves, so we entrust a listed company that can produce mobile phones to produce it on our behalf, although the cost is high, but the quality is 100% guaranteed.
- The shell is milled out by a milling machine similar to laser cutting, not by die stamping, so the appearance is very beautiful.
- The only drawback is: in order to be small and exquisite, a lot of modular structure is sacrificed, in case of maintenance, a lot of things need to be disassembled to repair, resulting in maintenance difficulties, so the maintenance cost will be very high.

New Box Activation, Warranty Description:
1: Any new box like buying a new mobile phone, must be activated online to use, the box that is not activated cannot be used, the activation is limited to copyright protection and after-sales service use.
2: Internet connection is required for activation, new boxes only need to be activated once, and the activation information will be saved in the box permanently.
3: After activation, your information will be solidified into the box chip, which cannot be modified, and this information will be displayed in the webui, so please enter your information correctly. Note again, your information cannot be modified after activation!
4: After each box is activated, we need to pay the fee to the partner, and the activation information cannot be deleted and modified, and it will not be able to be re-sold, therefore, the activated product cannot provide 7 days no reason to return, if you don't want this box, please do not activate.
5: This product implements the national three-guarantee policy, the free warranty of the host is 1 year, the connector accessories are 6 months (refer to the mobile phone), the free warranty is limited to the scope of normal use, man-made damage is not covered by the warranty, the repair is sent for repair, the customer needs to mail it back to the manufacturer for repair, and the freight is paid by the customer.
6: When activating, do not change the local time of the computer, if the local time and the real time are too different, the time bar will be automatically corrected to the correct time, the activation operation is saved by the server time, and the local time of the computer has nothing to do.

Precaution:
- SL04 activation can only be activated via USB, never through the LAN port.
- The first time you use the SL04 box, you need to activate it before you can use it.

Note! Note! Note! Important!
- SL04 activation can only be activated through the Type-C interface of the USB data cable link box, and must not be activated through the LAN port.

Why is there an activation operate and what is the significance of the activation operate?
1: The activation operation can ensure that the box is brand new to the customer.
2: The activation operation can turn the box into its own brand of products, which is very friendly to sellers and engineers.
3: This activation information is required for box upgrade, and the information on the server will be checked before upgrading to verify whether it is correct.

Specification:
- The default IP address out factory of the box is: 2.0.0.44
- Box size (Length x Width x Height): 10cm x 7.6cm x 3.5cm (Note: 9.3cm long when the phoenix head is removed)
- Box weight: 180g
- Package size (L x W x H): 15cm x 10cm x 4cm
- Package weight: 265g
- This box is small, powerful, and easy to use.
- It is a lighting weapon that each gaffer has in his hand and carries with him.
- It is indeed a DMX box that is a must-have for the gaffer to travel.

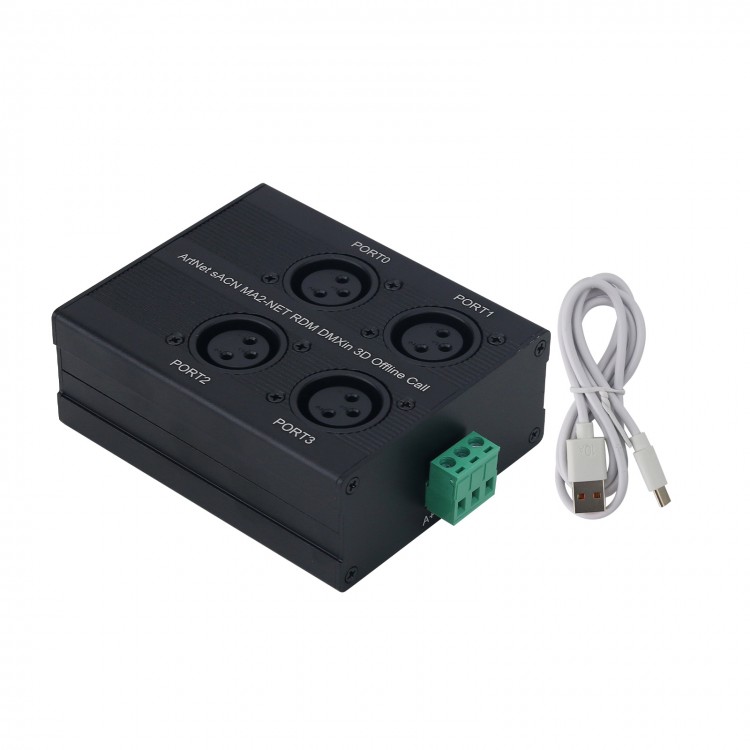

Package Included:
- 1 x Stage Light Controller
- 1 x Type-C Cable
