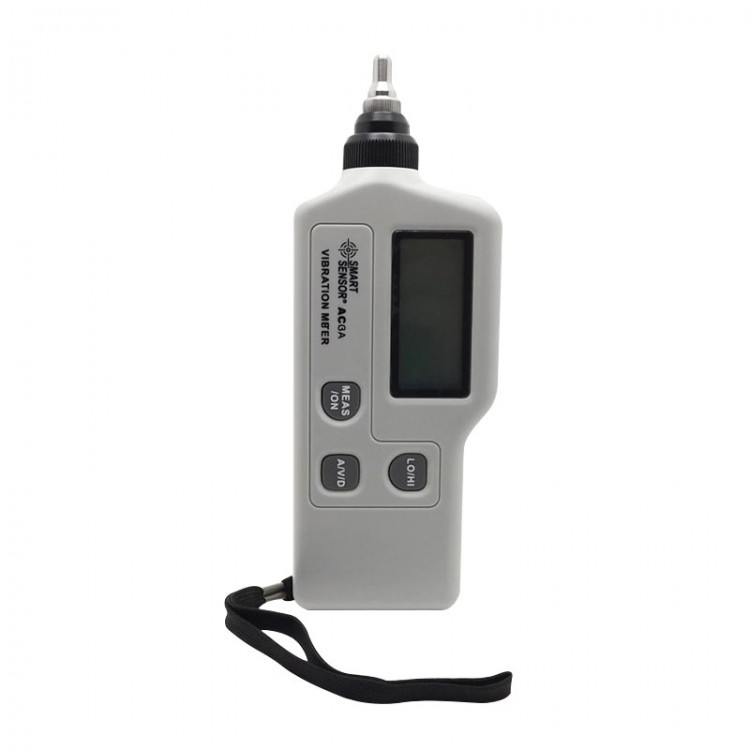

Smart Sensor Portable Vibration Meter AS63A+ Vibration Pen Vibration Analyzer
Features
- Vibration meter(also called also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration.It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
| SPECIFICATION | |
| Vibration Pickup | Piezoelectric Ceramic Accelerometer(shear-type) |
| Vibration Acceleration | 0.1~199.9mm/s |
| Velocity(RMS) | 0.1~199.9mm/s |
| Displacement | 0.001~1999um |
| Acceleration Frequency Range |
10HZ~200HZ(P-P) RMS:10HZ-500Hz10Hz-1000Hz(O_P) |
| Velocity Frequency Range | 10HZ~500KHZ |
| Displacement Frequency Range | 10HZ~200KHZ |
| Accuracy | ±10%H±2digits |
| Singnal Output | AC Output |
| Maximum Locking | --- |
| Temperature Measurement | --- |
| ℃℉ Selection | --- |
| PACKING INFORMATION | |
| Power | 9V battery |
| Product Net Weight | 147g |
| Product Size | 184*67*30mm |
| Packing | Gift box |
