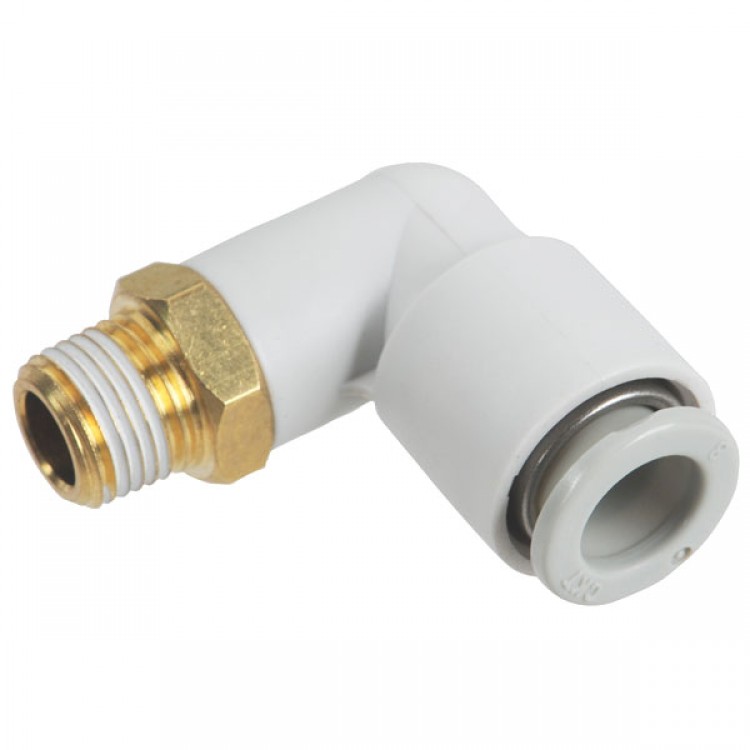

SMC Type KQ2L 08-01S Pneumatic Fittings One-touch Fittings Male Elbows 10-Pack
Descriptions:
- Spec.:effective when piping in a confined space; the connection thread with gasket cement.
- Basic Material: Brass, stainless steel, project plastic, rubber
- Max operation pressure: possible to use in vacuum to -10torr
- Tubing material: Nylon, PU.
- Fluid:Air/Water
| KQ | |||||
| KQ 2 4 3 - 2 or 3 | |||||
| KQ | One-touch fittings | ||||
| 2 | Product’s color: White body. Available only for white color body. | ||||
| 4 | Model | ||||
| 3 | Applicable tubing O.D | ||||
| 2 or 3 | Connection Thread/Applicable tubing O.D | ||||
| ΦP | MODEL | S | T | ΦD1 | ΦD2 | L1 | L2 | A | M |
| Φ4 | KQ2L 04-01S | 10 | R1/8 | 10.4 | 10 | 18.1 | 22.1 | 23.1 | 16.1 |
| KQ2L 04-02S | 14 | R1/4 | 26.1 | 25.1 | |||||
| Φ6 | KQ2L 06-01S | 12 | R1/8 | 12.8 | 20.1 | 23.1 | 25.6 | 17.1 | |
| KQ2L 06-02S | 14 | R1/4 | 27.1 | 27.6 | |||||
| KQ2L 06-03S | 17 | R3/8 | 29.1 | 29.6 | |||||
| KQ2L 06-04S | 22 | R1/2 | 33.7 | 34.2 | |||||
| Φ8 | KQ2L 08-01S | 14 | R1/8 | 15.2 | 12 | 23.1 | 24.6 | 28.1 | 18.6 |
| KQ2L 08-02S | R1/4 | 28.6 | 30.1 | ||||||
| KQ2L 08-03S | 17 | R3/8 | 30.6 | 31.6 | |||||
| KQ2L 08-04S | 22 | R1/2 | 34.6 | 35.6 | |||||
| Φ10 | KQ2L 10-01S | 17 | R1/8 | 18.5 | 17 | 26.6 | 27.1 | 32.1 | 21.1 |
| KQ2L 10-02S | R1/4 | 30.1 | 331 | ||||||
| KQ2L 10-03S | R3/8 | 32.1 | 34.6 | ||||||
| KQ2L 10-04S | 22 | R1/2 | 36.1 | 37.1 | |||||
| Φ12 | KQ2L 12-01S | 17 | R1/8 | 20.9 | 28.6 | 28.1 | 33.6 | 22.1 | |
| KQ2L 12-02S | R1/4 | 31.1 | 35.6 | ||||||
| KQ2L 12-03S | R3/8 | 33.1 | 37.1 | ||||||
| KQ2L 12-04S | 22 | R1/2 | 37.1 | 39.6 | |||||
| Φ16 | KQ2L 16-02S | 22 | R1/4 | 26.5 | 20.9 | 34.1 | 43.5 | 25.1 | |
| KQ2L 16-03S | R3/8 | 38.1 | 44.6 | ||||||
| KQ2L 16-04S | R1/2 | 41.1 | 46.1 |
