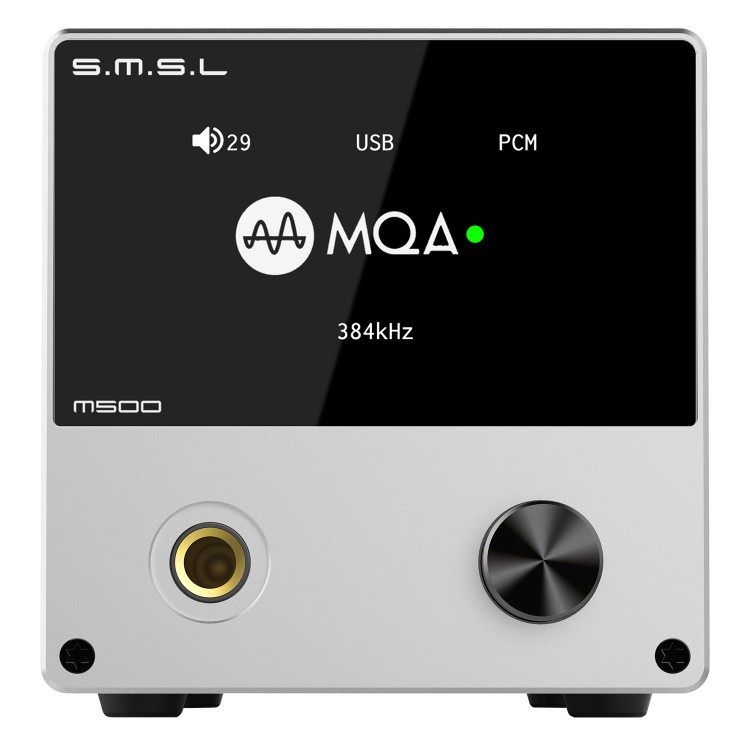

SMSL M500 Headphone Amplifier DSD DAC Decoder Aluminum Alloy Shell For MQA ES9038PRO XU216 Silver

SMSL M500 Headphone Amplifier DSD DAC Decoder Aluminum Alloy Shell For MQA ES9038PRO XU216 Silver

Features:
- Hi-Res AUDIO certification.
- Professional technology and good service attitude will present you a high-quality auditory feast.
- Aluminum alloy CNC precision machined housing. Using anodizing technology and chamfering process. High-end appearance, delicate touch, exquisite and durable.
- Use tempered glass display panel, higher light transmittance, longer service life.
- It uses the American high-end ES9038PRO D/A chip, which is a DAC chip that reaches the industry's high standards. The signal-to-noise ratio is 140dB higher, and the total harmonic distortion plus noise is -122dB. At the same time, it is a 32-bit, eight-channel DAC chip with high resolution and high dynamic frequency response rate, allowing M500 to achieve a low distortion rate of 0.00015%.
- With the use of the high-performance DAC dedicated power chip E9311, the power noise is as low as 1uVrms, which maximizes the performance of the ES9038PRO.
- All input ports support DSD transmission. Coaxial and optical fiber support DoP64. The high-power and high-current discrete components drive the headphone amplifier circuit to provide greater headphone thrust.
- Built-in shielding, low-noise power supply processing, while improving power efficiency and lower power consumption.
- Equipped with remote control and full-function remote control.

Specifications:
- Input mode: USB/opticalx2/coaxial
- Output mode: single-ended amp/single-ended line/balanced line
- THD+N: 0.00015%
- Dynamic range: balanced line 125dB; single-ended line 120dB
- Signal to noise ratio: 120dB
- USB transmission method: asynchronous transmission
- USB compatibility: for Windows 7/8/8.1/10, Mac OSX 10.6 and above, Linux
- Bit depth: USB 1bit, 16~32bit. Optical fiber, coaxial 1bit, 16~24bit
- Sampling rate: USB, PCM 44.1~768kHz, DSD 2.8224~22.5792MHz. Fiber/Coaxial, PCM 44.1~192kHz, DSD, DSD64(DoP)
- Headphone amplifier output power: 570mW (32Ω); 290mW (64Ω); 125mW (150Ω); 65mW (300Ω)
- Power consumption: 5W
- Standby power consumption: 0.6W
- Product size: 85x88x197mm
- Product weight: 0.91kg

Package Included:
- 1 x Set of DAC Headphone Amp

Note:
- It is assembled and ready to use.


1. Infrared receiving window
2. 6.35mm headphone output
3. Display
4. Function knob*
5. Balanced line output
6. USB input
7. Power supply input
8. Optical 1 input
9. Optical 2 input
10. Power switch
11. Coaxial input
12. Single-ended line output
