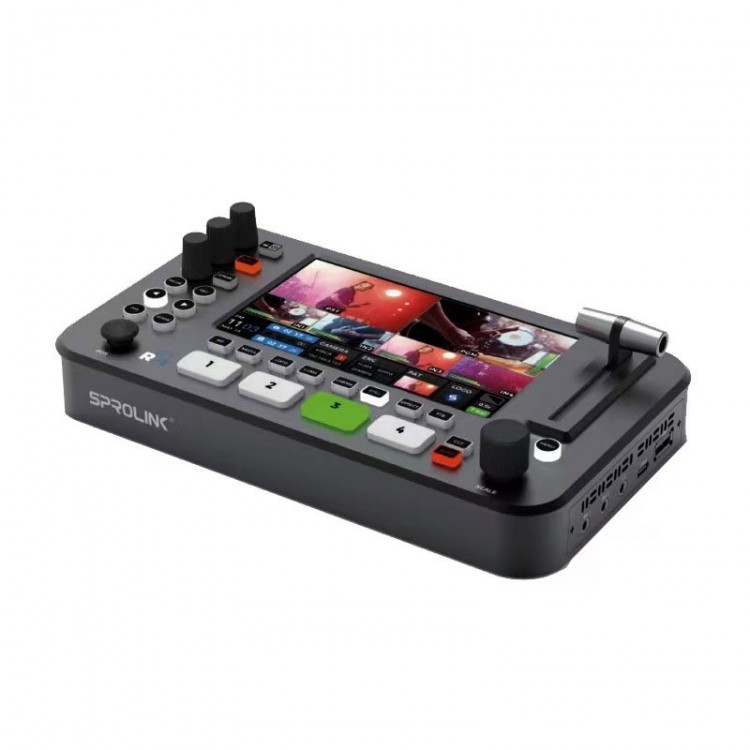

SPROLINK NeoLIVE R2 Live Streaming Video Switcher USB Acquisition & 1CH HDMI-Compatible Output
Features:
* Built-in 5.5" LCD monitor for previewing all inputs and outputs
* USB 3.0 port for high-quality live streaming
* Supports PTZ camera control
* Supports media storage and still image download
* Supports any PIP (Picture-in-Picture) for vivid live streaming
* HDMI-compatible output supports PGM/PST/PVW
* Supports T-BAR transition switching
* Supports movie-level Chroma Key functionality
* Supports mixed audio output

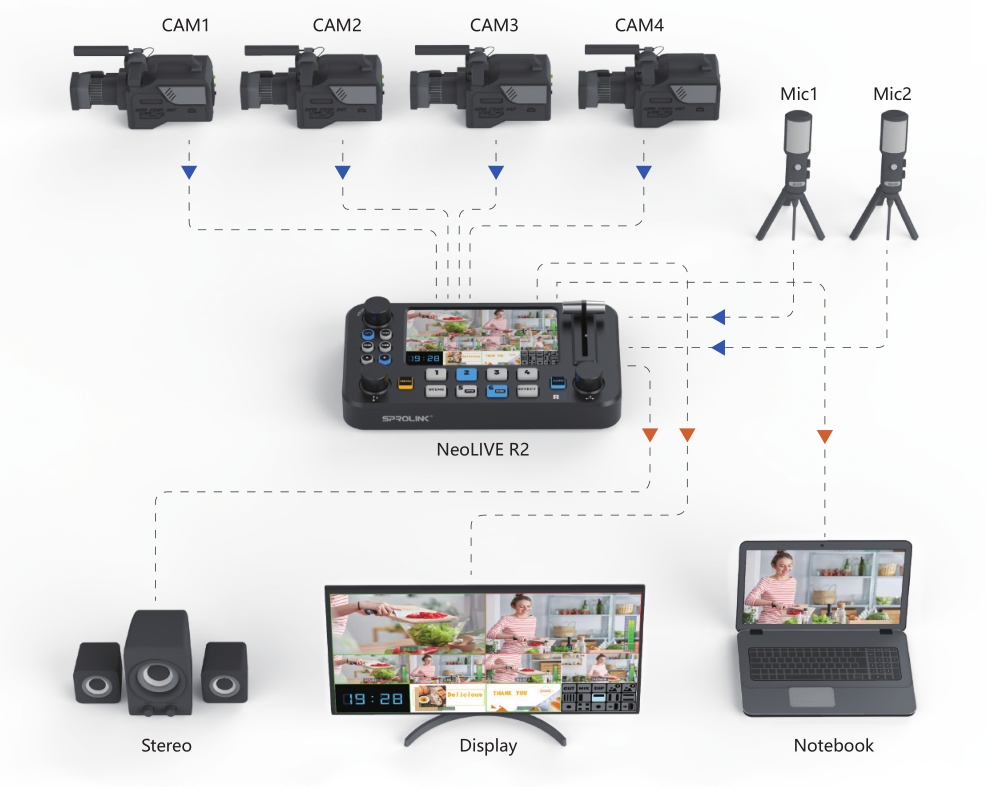

* Supports up to 4 HDMI-compatible inputs for multi-camera switching
* Earphone port for audio monitoring of any input or output
Key Features:
With 5.5" LCD Monitor
* No need to connect an external monitor. With the built-in 5.5" monitor, users can view up to 10 windows simultaneously.
USB 3.0 Port for Live Streaming
* NeoLVIE R2 can be recognized as a webcam by a PC. Using the USB 3.0 port, it supports high-quality live streaming at 60 frames per second with high color sampling.
Various Transition Effects
* NeoLVIE R2 supports 15 transition effects. Press the EFFECT button to quickly load different effects, and press the AUTO button to execute smooth transitions automatically.
Still Pool Storage
* With built-in storage, NeoLVIE R2 allows picture insertion without occupying any input channel, enabling users to insert different backgrounds during live streaming.
Any PIP Layout and Load
* Users can freely adjust the PIP size and position using the knob and quickly load saved layouts.
Dual-Level Heat Dissipation
* With a unique heat dissipation design, NeoLVIE R2 ensures quiet live streaming and minimizes microphone interference from background noise.
HDMI-Compatible Output Port Multiplexing Function
* The HDMI-compatible output port can be configured as PGM, PST, or PVW, making it convenient for external displays or monitors.
PTZ Camera Control
* NeoLVIE R2 can also function as a PTZ camera controller, allowing control of up to 4 PTZ cameras via a router.
Audio Monitoring Interface
* NeoLVIE R2 is equipped with a headphone monitor interface, allowing real-time monitoring of any audio input or output channel. Audio control is simple and convenient.
Movie-Level Chroma Keying Algorithm
* NeoLVIE R2 applies a powerful built-in chroma keying algorithm, delivering perfect results even in highly detailed areas. Ideal for live streaming with virtual backgrounds.
Professional Audio Mixer
* With a built-in professional audio mixer, NeoLVIE R2 supports AFV and MIX audio modes. Users can mix HDMI-compatible embedded audio with multiple Mic/AUX external inputs, easily managing complex audio setups for various live broadcasts.
T-BAR Switching for Ultimate Experience
* NeoLVIE R2 features 15 built-in transition effects, quickly accessible via the EFFECT button. Use the AUTO button to execute smooth transitions, or control effects manually through the T-BAR for broadcast-level performance.
Packing List:
* 1 × Video Switcher Mixer
Packaging Details:
* Weight: 1.5kg
