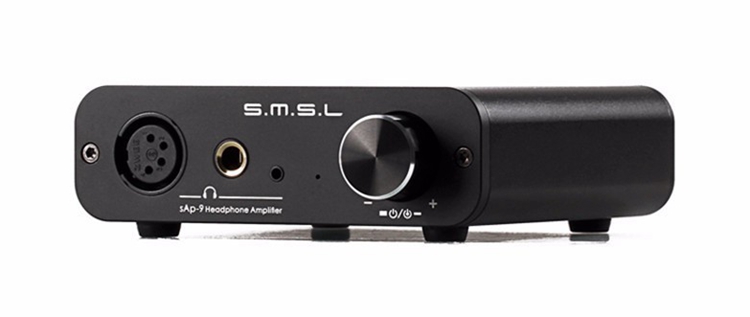

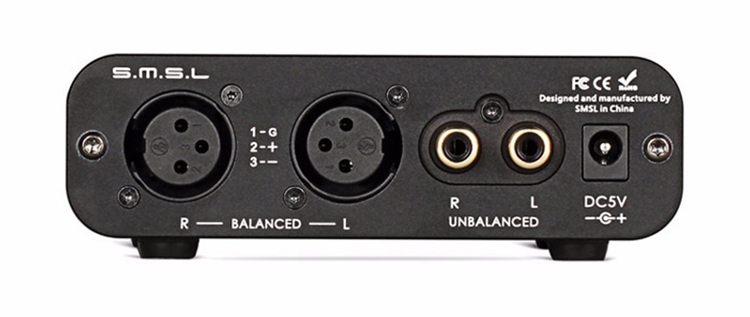

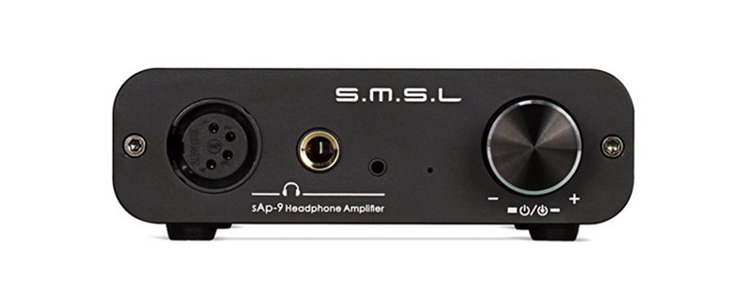

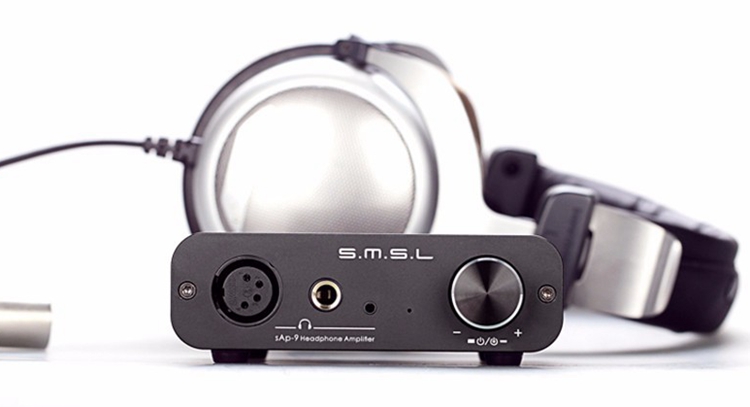

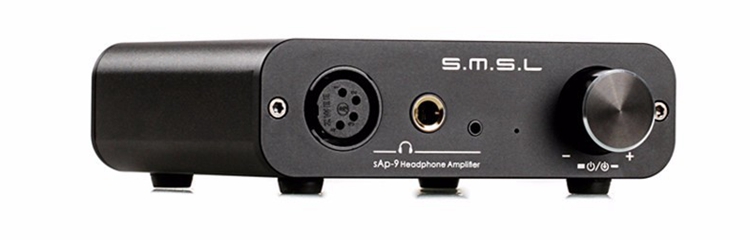

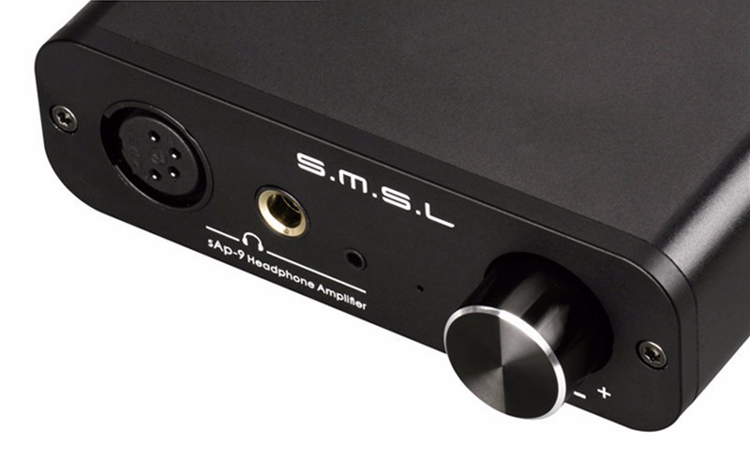

SAP-9 Full Balanced Digital Headphone Amplifier Class A HIFI Audio Stereo TPA6120A2 RCA/XLR Input
Features:
- XLR full-balanced input/output, Zero noise , clean sound
- Can use 5V/2A power charger as power supply
- Fully independent balanced circuit architecture
- Separate TPA6120A2 as the amplifier circuit for each Left and right channels
- Electronic volume control; Supports 2.5mm quadruple balanced output
Specifications:
- Input: XLR/RCA interface
- Output: Four pin XLR balanced interface/6.5mm headphone interface/2.5mm Four pole balanced headphone interface
- Power supply: 5V/2A
- SNR: 110dB
- Unbalanced output amp power (measured at THD + N = 0.1%):
32 ohm: 17mW
64ohm: 130mW
150 ohm: 78mW
300 ohm: 45mW
- Balanced Output Amp Power (measured at THD + N = 0.1%):
32ohm: 373mW
64ohm: 342mW
150 ohm: 245 mW
300 ohm: 155 mW
- Power consumption: 7.2W
- Main body weight: 443g
Note: The balanced output port and the unbalanced output port cannot be used at the same time!
Package Included:
- 1 x SMSL SAP-9 headphone amplifier
- 1 x 5V Power Adapter
- 1 x USB to DC Cable
