SSTC Perfect For Solid State Tesla Coil Science Education Tools DIY Experiment (with Acrylic Shell)
Description:
It is a desktop-level integrated mini SSTC. Primary and secondary coils are made of PCB, abandon traditional solenoid secondary Tesla coil, highly integrated, more neat and safe.
DC power adapter is included. Other accessories are not required. Grounding is not required. Compared with the Tesla coil directly plugged into 220 mains, this one is more stable. This power supply is only 52V DC, which is only one sixth of mains rectified. Its heat sink has a temperature control switch. Power supply also has over-current protection, the pulse width of music mode is limited, with multiple protection. No fan cooling (because of less heat generated). Do not run at maximum power for too long, otherwise the temperature control protection will be too fast.
Just twist an electric needle and plug in power adapter, you can experience the charm of lightning on the palm. It can play square wave music, increasing its playability.
Operations:
- Left Knob: Control the size of arc. Rotate clockwise to increase.
- Right Knob: Control fixed frequency, rotate clockwise to speed up arc frequency.
- Toggle Switch:
* When the switch is dialed down, it is in fixed frequency mode. It can be used to adjust arc frequency and size.
* When the switch is in the middle, it pauses.
* When the switch is up, it is in music mode. Just use an audio cable to link your mobile phone to play music. It can be used to adjust arc size

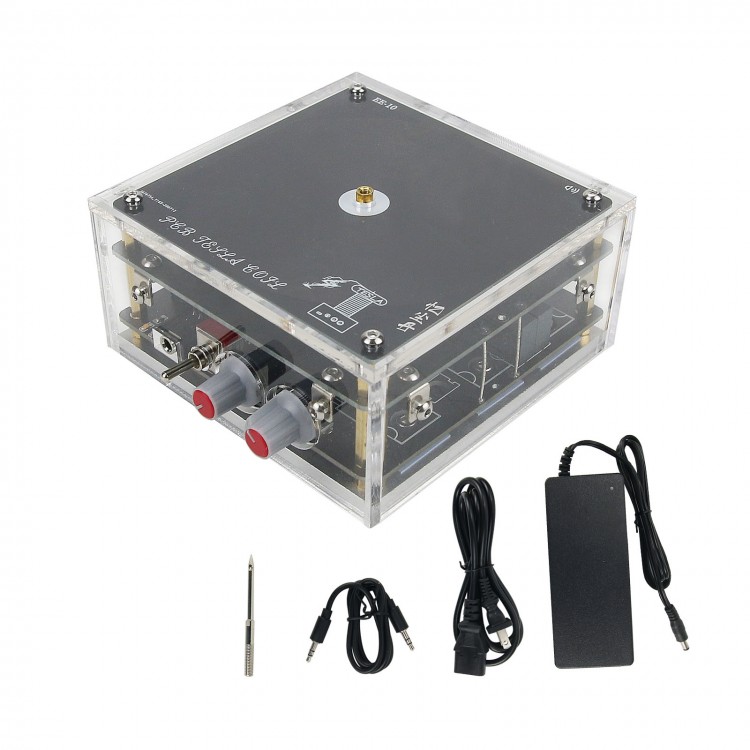

Package Included:
- 1 x Set of SSTC
Note: Other items pictured are not included, for demonstration purposes only.
This power supply is only 52V DC, low voltage power supply guarantees safety, and the effect is comparable to desktop-grade mains half-bridge Tesla coil.

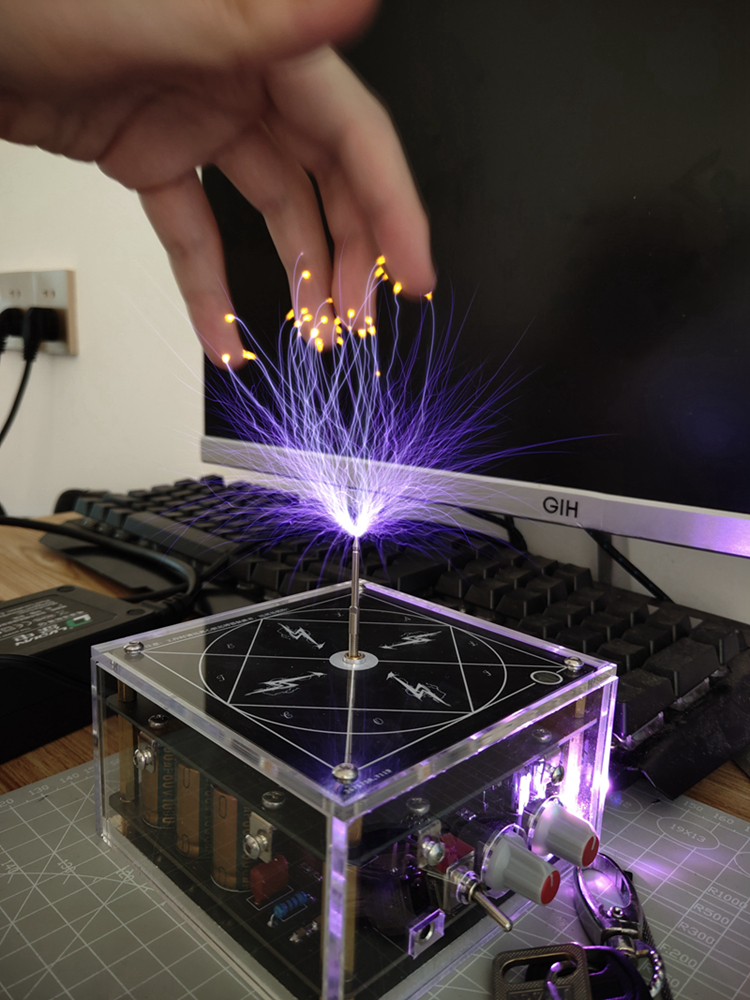

2M high-frequency secondary. Even if you touch arc with your hand, there will not be too much pain. At low frequencies, you can play arc between your palms at will. The frequency of music mode is higher. When arc is concentrated at a point, there will be a burning sensation. When you smell your hand, you will have a barbecue smell. The picture below shows 70V power music mode.
