ST-LINK V2 STM8 STM32 Microcontroller Emulator Programmer Downloader Manager STLINK Debugger

ST-LINK V2 STM8 STM32 Microcontroller Emulator Programmer Downloader Manager STLINK Debugger

Introduction :
ST-LINK / V2 is an online simulation, and download STM8 and STM32 development tool!

Specification:
- ST-LINK / V2 is ST STMicroelectronics evaluation, development STM8 and STM32 family MCU series designed to set online download for the integration of simulation and development tools.
- STM8 family via SWIM interface with the ST-LINK / V2 connection;
STM32 family through the JTAG / SWD interface with the ST-LINK / V2 connections.
- ST-LINK / V2 and PC via high speed USB2.0 connection.

Supported Software
- ST-LINK Utility v2.0 ( and above version)
- STVD Version 4.2.1 ( and above version)
- STVP Version 3.2.3 ( and above version)
- IAR EWARM Revision v6.20 ( and above version)
- IAR EWSTM8 Revision v1.30 ( and above version)
- KEIL RVMDK Revision v4.21 ( and above version)
- ATOLLIC
- TASKING

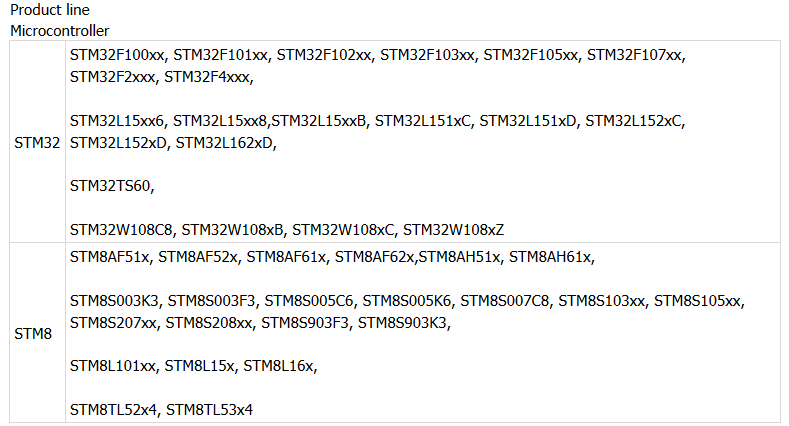

Supported Devices
- Supports all interfaces with SWIM STM8 MCU
- Supports all with JTAG / SWD interface STM32 MCU

Function:
- Programming function: can write ROM EEPROM, FLASH, AFR, etc..
- Simulation functions:support full speed operation, single step debugging, breakpoint debugging and other debugging methods, can see the state of IO, variable data, etc..
- Simulation performance: the use of USB2.0 interface for simulation debugging, single step debugging, breakpoint debugging, fast response!
- Programming performance: the use of USB2.0 interface, SWIM / JTAG / SWD download, Download speed!

Connection interface to the target board
- ST-LINK/V2 specifies the SWIM standard interface and the JTAG / SWD standard interface.

Product List
- ST-LINK/V2 Host * 1
- USB data cable * 1
- 20-pin gray cable * 1
- SWIM cable * 2
- Manual * 1
