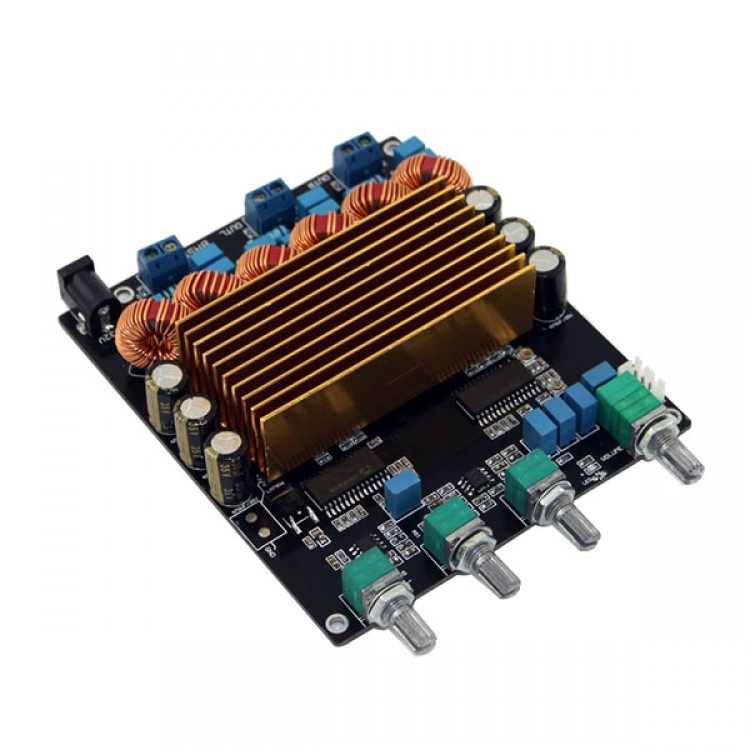

STA508+TC2001 2.1CH Class D Amp 2*80W+160W Amplifier Board (Beyond TPA3116)

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.28
  • Price in reward points: 283 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.71 $27.15 $26.30 $25.17 Contact US
Quantity:

STA508+TC2001 2.1CH Class D Amp 2*80W+160W Amplifier Board (Beyond TPA3116)

Description:

- This is a assembled board, which use original TC2001 and STA508 chips;     the Main filter capacitor use Japan Panasonic electrolytic capacitor6×330 UF
- Work type: Class D
- Quiescent current:50mA
- Efficiency of operations:90%
- Rated output power:2*80 W+160 W
- Frequency response:20Hz to 20KHz
- Working Voltage:DC18V to DC34V(Recommend to use DC 32 V )
- Max output current:6A
- PCB Size:115.5 mm * 100 mm
- The function of potentiometers ( from left to right):
- Bass; L& R Channel Terble Volume ; L & R Channel Volume; Volume

Package included:
1pc TC2001+STA508 2*80W+160W 2.1CH AMP BOARD
