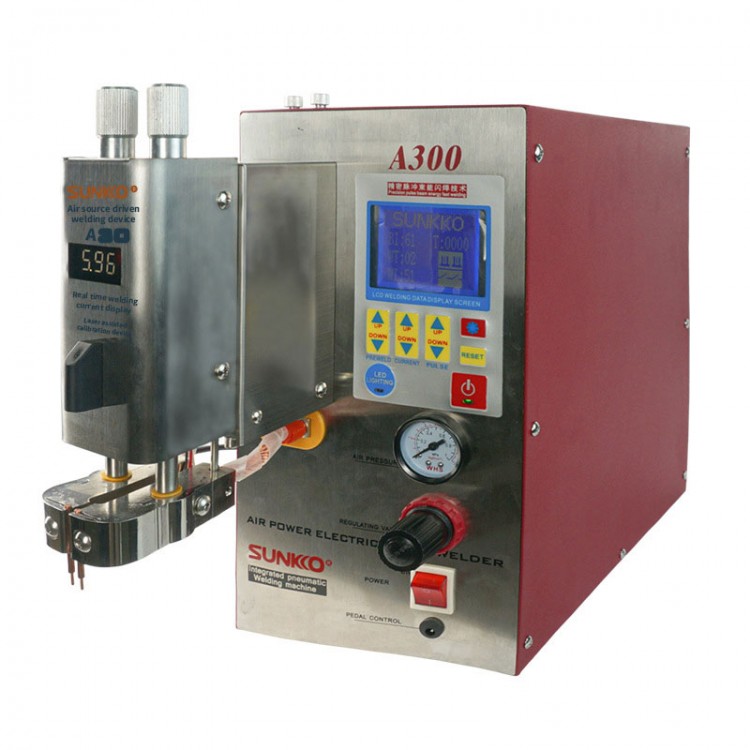

SUNKKO A300 Air Power Spot Welder 18650 Lithium Battery Pneumatic Welding Machine with 73B Welding Pen

SUNKKO A300 Air Power Spot Welder 18650 Lithium Battery Pneumatic Welding Machine with 73B Welding Pen

Description:
- Digital setting welding parameters with clear and easy keyboard operation.
- A detachable standardized pneumatic welding pin component that can be used separately with a gantry.
- Laser alignment positioning and welding needle lighting device, improves welding accuracy and production efficiency.
- The user-friendly interface designed according to ergonomics facilitates parameter visualization for easy operation and observation.
- Equipped with real-time monitoring functions for welding pulses, voltage, and current, ensuring consistent batch welding results.
- It can be connected to a mobile spot welding pen, with a wider range and higher efficiency.
- Innovative welding motion speed adjustment knob, convenient for users to adjust the down pressure and return speed.
- The pressure of the two welding needle is independently adjustable and easy to adjust, ensuring stable and reliable welding pressure.
- Automatic counting: the daily output can be automatically counted from 0000 to 9999, making it convenient to calculate the daily output and improving work efficiency.
- Intelligent cooling system, suitable for long-term spot welding operations.

Specification:
- Model: A300
- Power frequency: 50Hz/60Hz
- Power voltage: AC200 - 240V
- Peak output power: 6KW
- Peak output current: 1200A
- Peak output voltage: 6V
- Duty cycle: <55%
- Maximum electrode pressure: 1.5kg (single)
- Working air pressure: 0.35 ~ 0.55Mpa
- Maximum electrode distance: 24mm
- Electrode arm length: 146mm

Package Included:
- 1 x Spot Welder
- 1 x 73B Welding Pen
