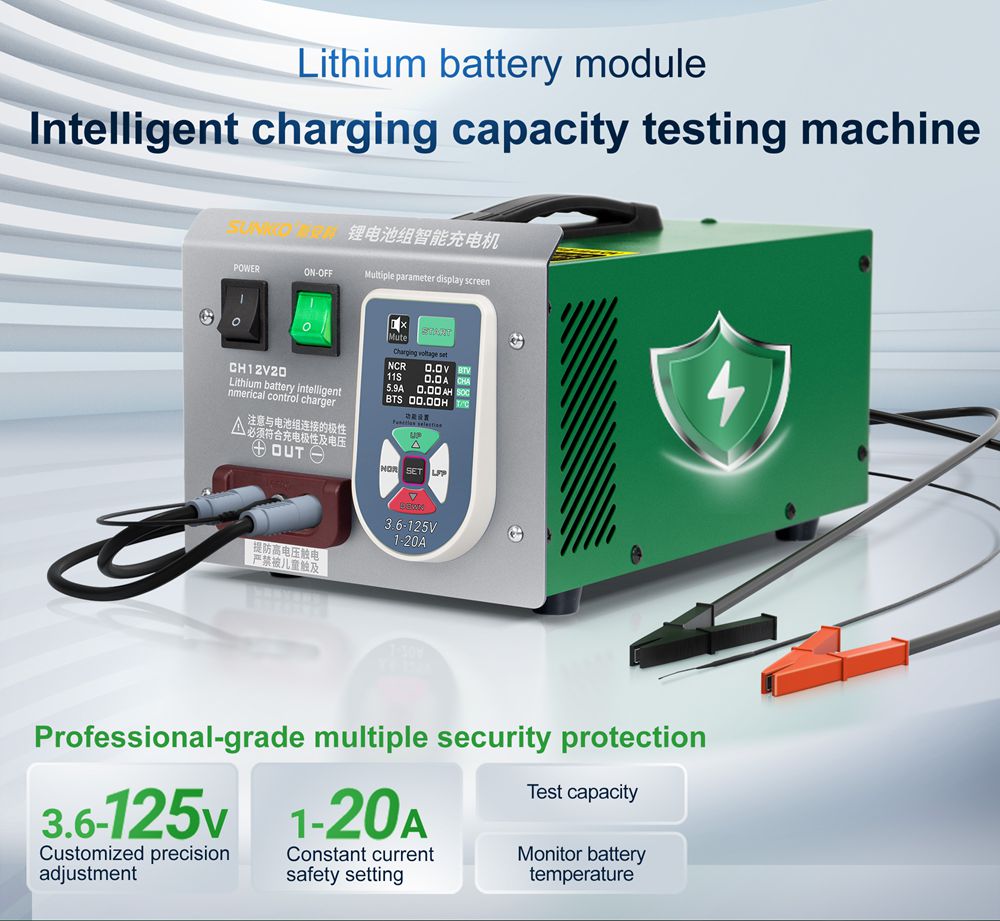

SUNKKO CH12V20 Professional Lithium Battery Pack Intelligent Charger 125V/20A for Li-ion/LifePO4 Battery Modules
Description:

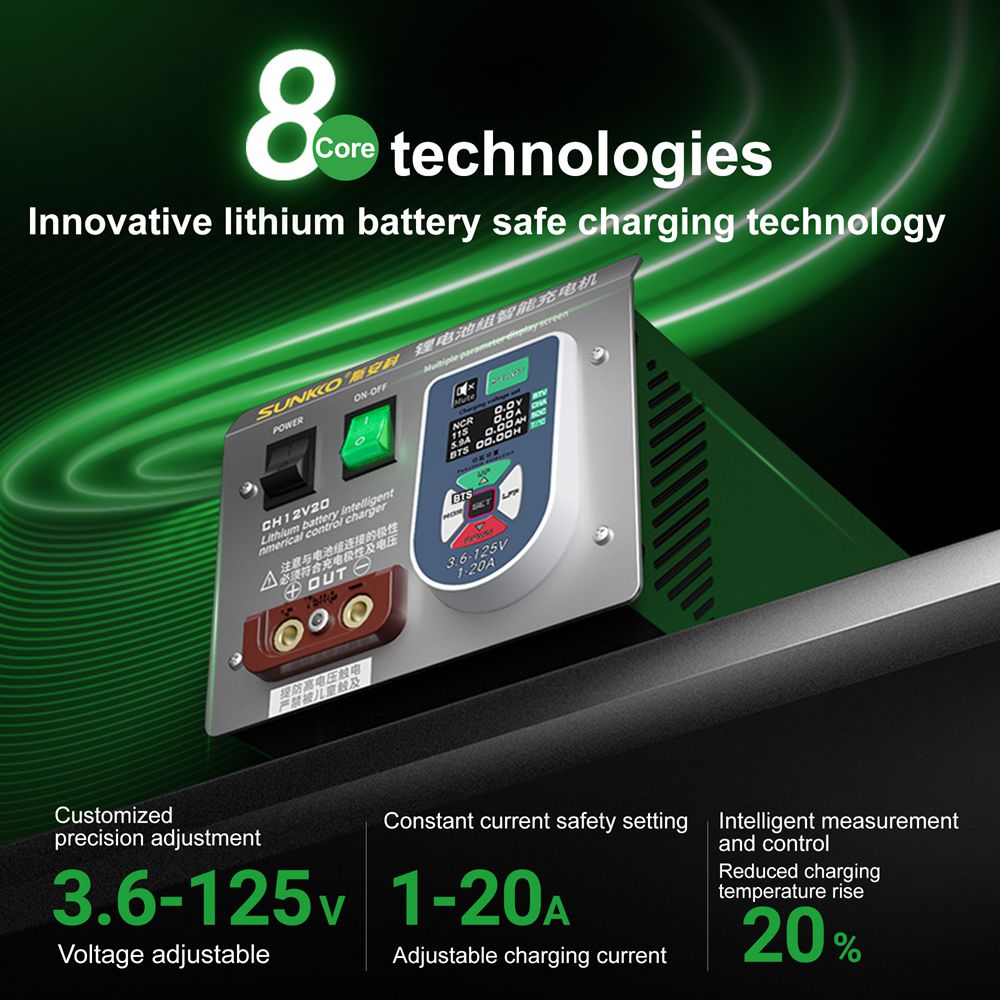

- CH12V20 lithium battery pack intelligent CNC charger is a safe charging solution designed for Li-ion/LifePO4 battery modules. It is a professional lithium battery charging device that integrates intelligent matching, safety protection and efficient charging. Through intelligent voltage digital control adjustment technology and multiple safety protection systems, the potential safety hazards of overcharging and short circuit caused by incorrect parameter settings in traditional chargers are completely resolved, providing dual protection for battery life and user safety. Protecting safety with technological innovation, so that every battery can be charged and used with peace of mind.
Features:

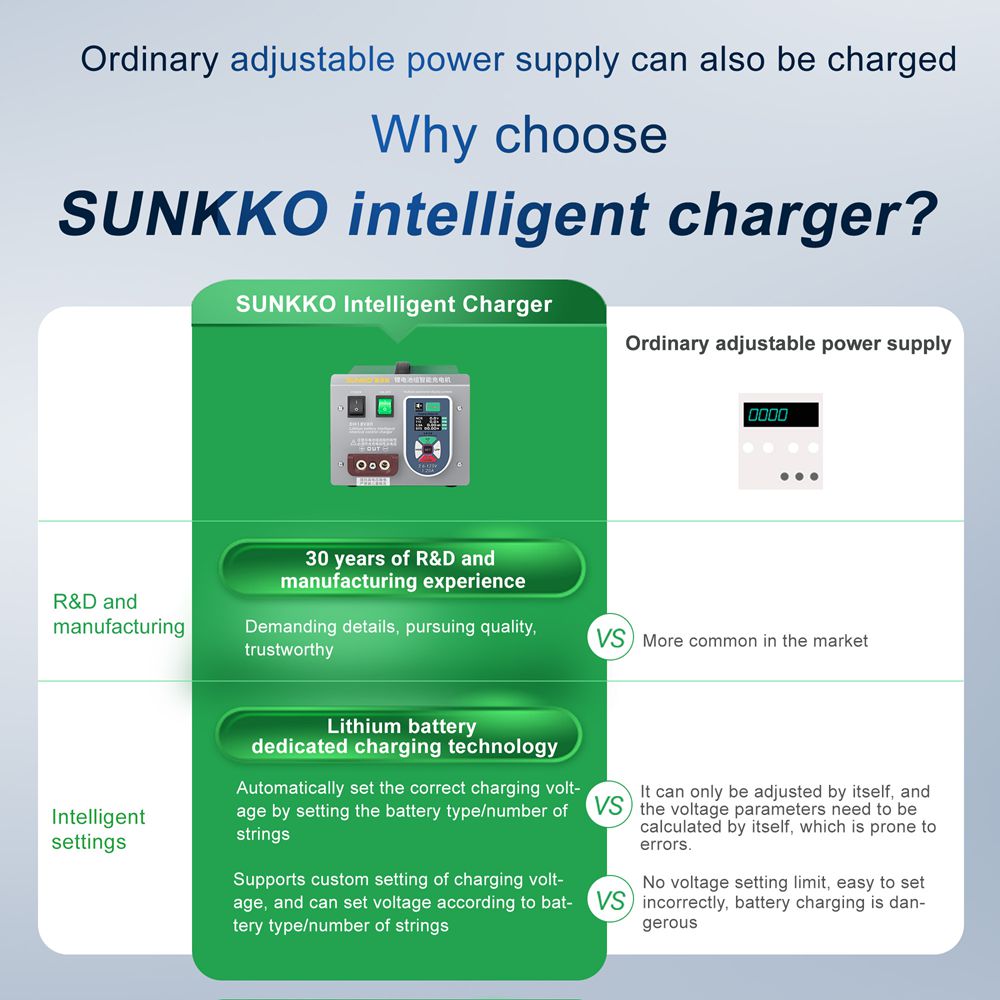

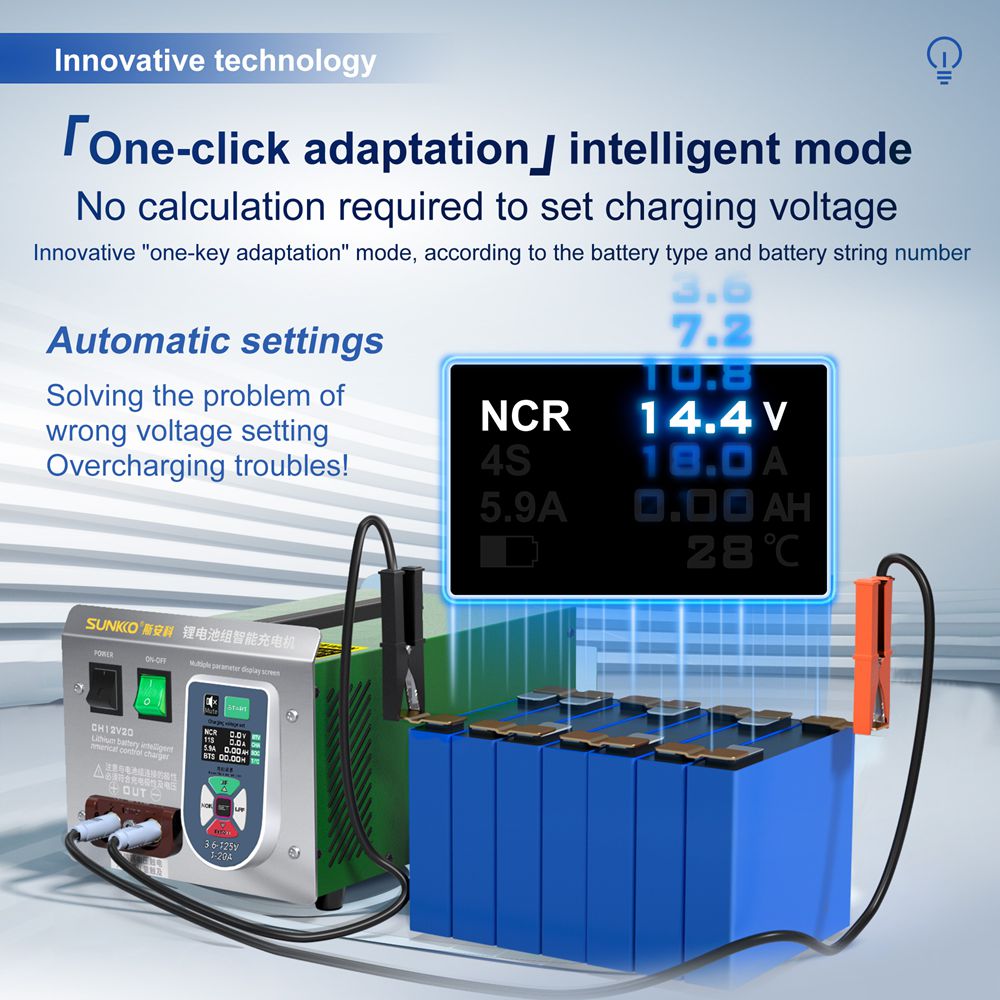

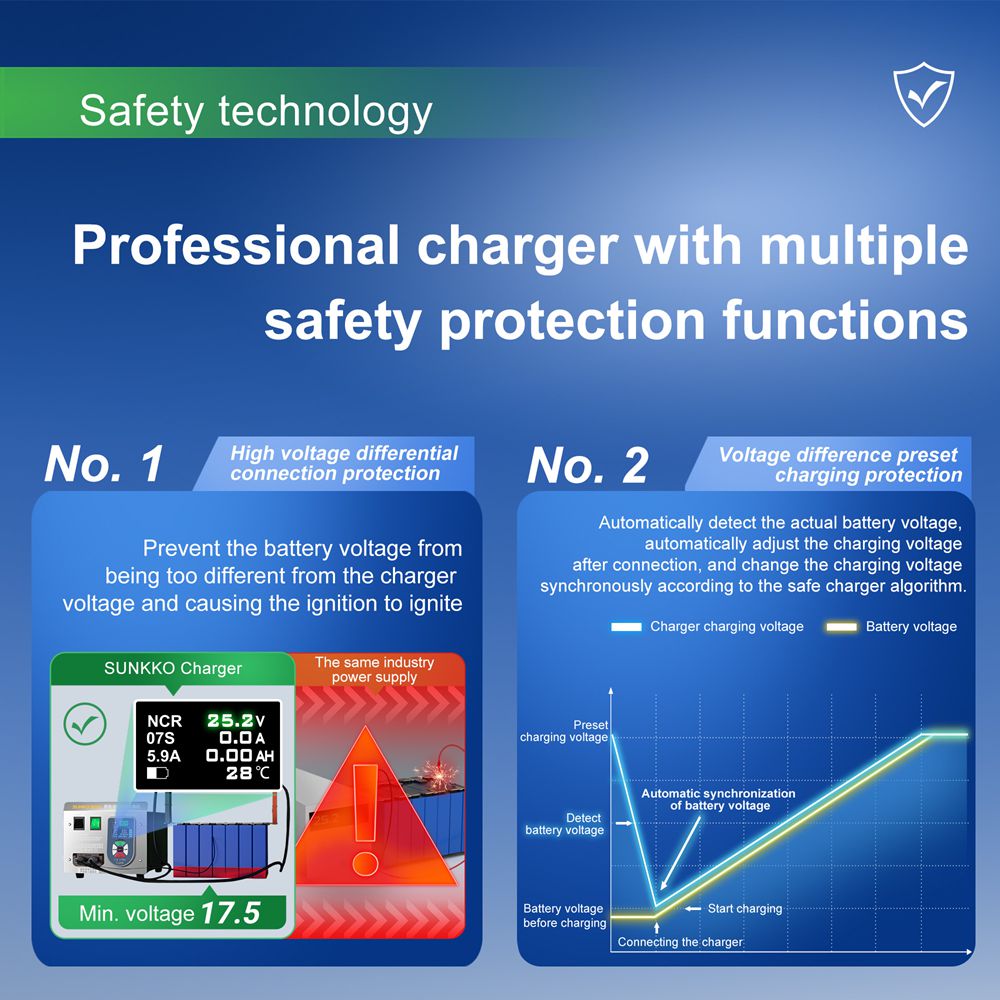

- Intelligent voltage matching system, the first "one-key adaptation" mode: automatically identify and accurately set the charging voltage according to the battery type and number of battery strings.

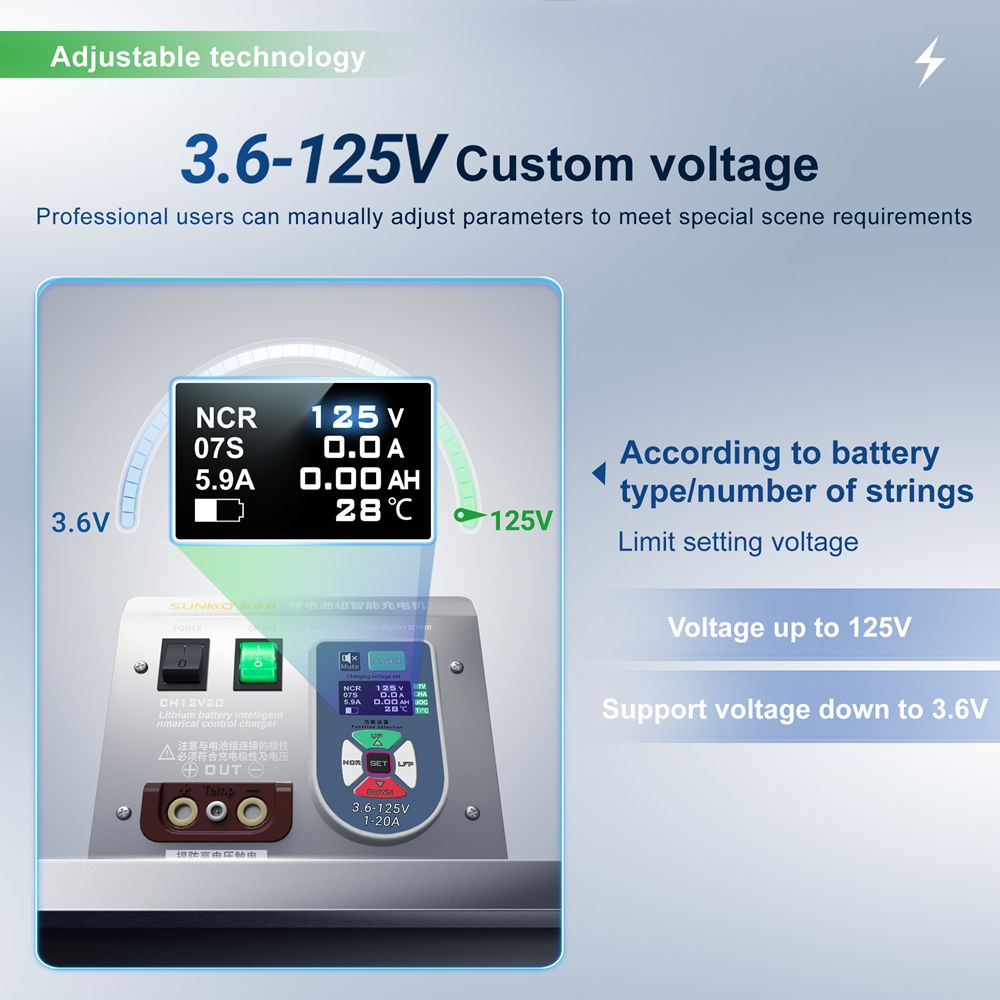

- Support custom mode: professional users can manually adjust parameters to meet the needs of special scenarios.

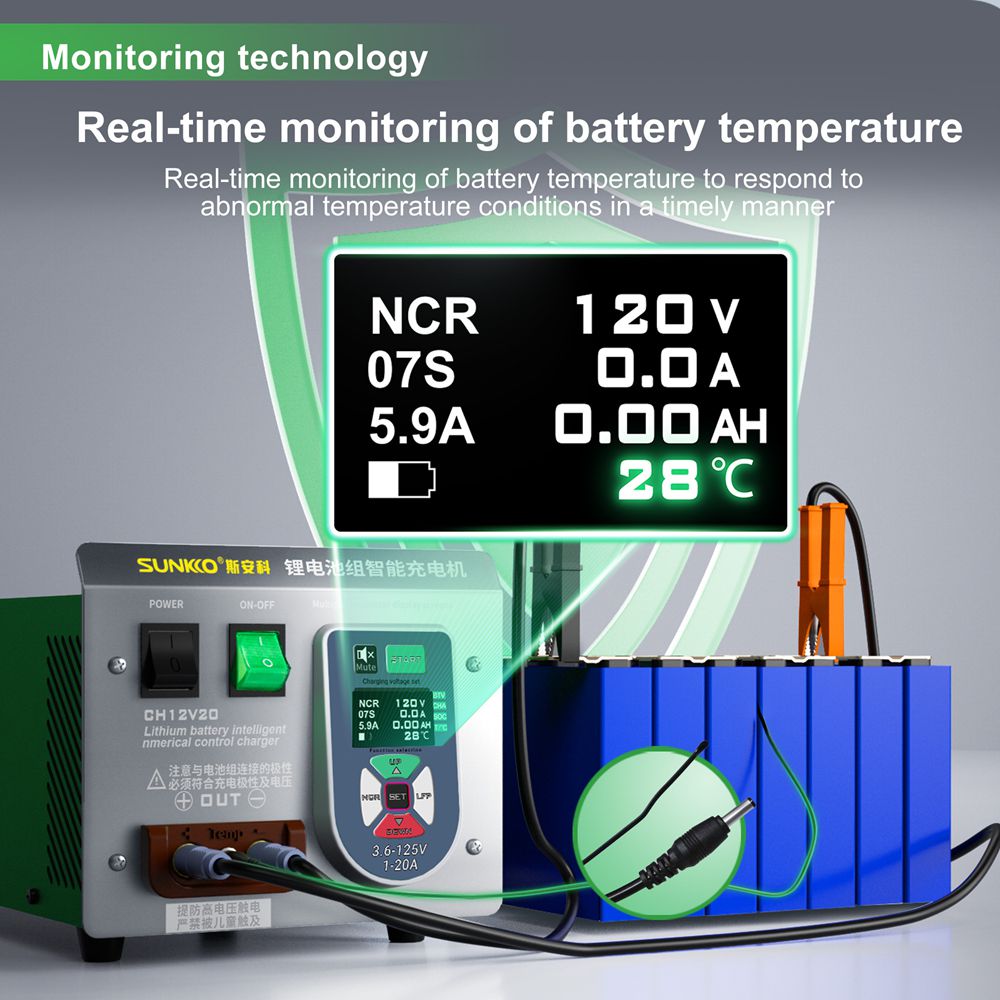

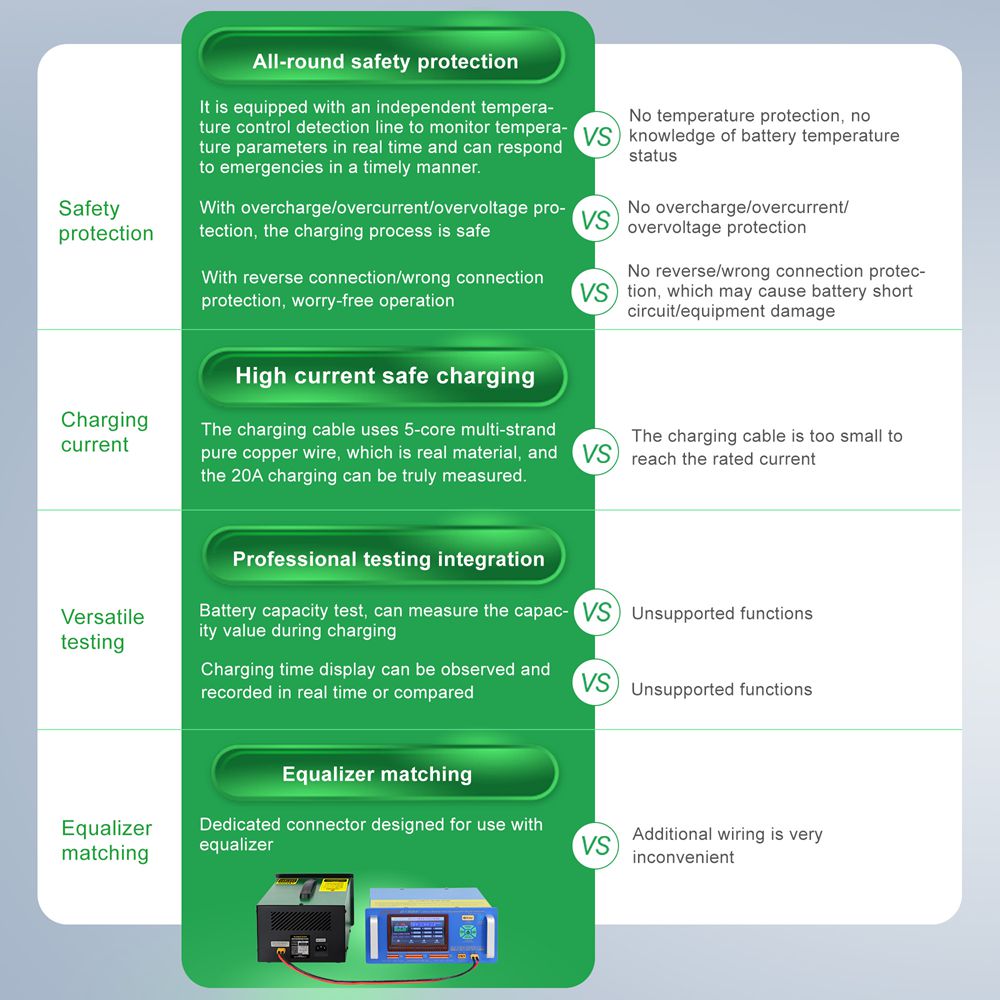

- Triple temperature control protection, real-time monitoring of battery and device temperature, automatic current reduction or power off when abnormal temperature rises.
- The internal components are reasonably arranged and combined with the heat dissipation cooling system, the impact of high temperature environment on electronic components can be effectively avoided.
- Anti-reverse connection / anti-wrong connection protection to avoid short circuit risk.
- Overcharge/over current/over voltage protection triple current protection. AI algorithm dynamically adjusts the charging curve to ensure that the entire charging process is within the safety threshold.
- The maximum output current is 20A, suitable for multiple scenarios such as medium and large energy storage systems, power tools, and new energy vehicle battery modules.
- Intelligent charging strategy reduces battery loss and increases cycle life by more than 20%.

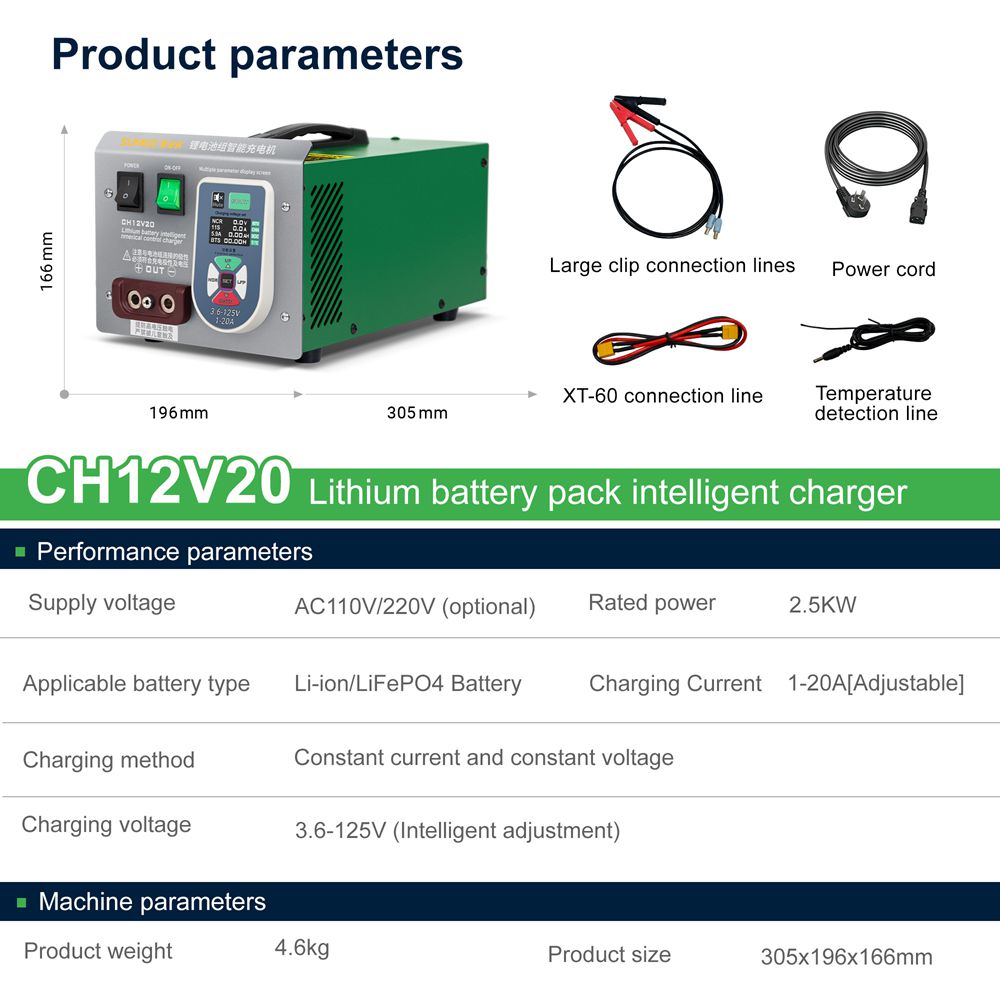

Specification:
- Product name: Lithium battery pack intelligent CNC charger
- Model: CH12V20
- Supply voltage: AC110V-220V (Model selection)
- Rated power: 2.5KW
- Applicable battery type: Li-ion/LifePO4
- Charging method: constant current + constant voltage
- Charging voltage: 3.6 ~ 125V (intelligent adjustment)
- Charging current: 1-20A (adjustable) for 220V; 1-10A (adjustable) for 110V
- Net weight: 4.6kg
- Size: 305 x 196 x 166mm

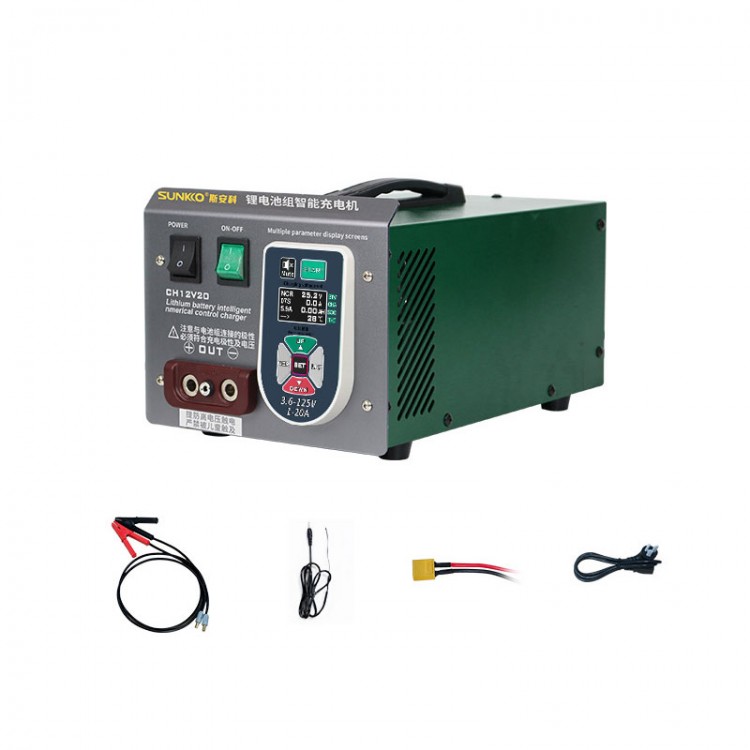

Package Included:
- 1 x Host
- 1 x Large Clip Connection Line
- 1 x Power Cable
- 1 x XT-60 Connection Cable
- 1 x Temperature Detection Line
