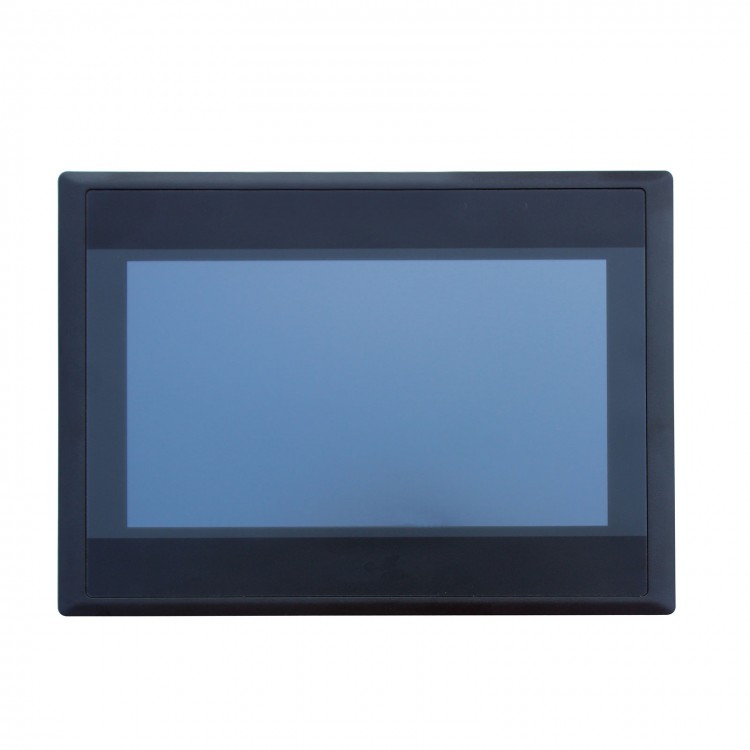

SUP070 7" HDMI Touch Screen HMI Display & PLC Communication Cable Replacement for Siemens Weinview

SUP070 7" HDMI Touch Screen HMI Display & PLC Communication Cable Replacement for Siemens Weinview

Features:
1. Its operation software has a simple structure, modularized and highly integrated controls. The software is stable and reliable, easy for users to understand and simple to operate.
2. Quick to turn on when it is powered on (2 seconds), low power consumption (less than 1.5W), fast downloading program, smooth communication and screen conversion.
3. Support a variety of controller communication protocols, adapted to a variety of PLC, inverter, servo controller, microcontroller control system, etc. Support PLC such as for Mitsubishi, Panasonic, Omron, Delta, Xinjie, FATEK, Siemens, Keyence, LG, etc. Users only need to select directly on the software when operating.
4. Support RS232, RS485, and RS422 communication.
5. The product is fully functional: common controls include switch, value display, picture display, historical trend graph, historical data display, message display, icon, trend graph, GIF display, alarm display, fast flow, text, table, various graphics and other controls.
6. Support multi-language settings, multi-function buttons, formulas, data transmission, data collection, curves and other advanced functions.
7. Support custom addition of image library; Users can take screenshots of their favorite pictures and load them into a custom gallery for calling.
8. Support Chinese and English keyboard input, which can be switched freely.
9. Rich gallery, support Png, Jpg, GIF, Bmp and other formats of pictures, vector gallery, arbitrary scaling and no aliasing.
10. Support baud rate range 1200-230400.
11. With the convenience of the configuration screen, lower price price, the use of the platform to develop new projects, short development cycle, less R&D investment.
12. Support Wifi, customized communication protocol. Through Wifi transparent transmission, it can communicate directly with the cloud server to achieve cloud remote control.
13. Support U disk to download.
14. It can work normally in the environment of -30℃ to -20℃.

Technical Specifications:
- Display: 7" TFT LCD screen
- Ethernet: None
- Operating temperature: -20 to 50°C
- Resolution: 800x480
- USB port: 1 USB Host 2.0 port
- Storage temperature: -40 to 70°C
- Colors: 260,000
- Program download method: USB download
- Ambient humidity: 10~90%RH (non-condensing)
- Brightness: 280cd/㎡
- Serial communication port: COM port RS232/RS485/RS422
- Shock resistance: 10-25HZ (2G/30 Minutes in X, Y and Z directions)
- Backlight: LED
- Rated power: <2W
- Cooling method: natural air cooling
- LED life: 20000 hours
- Rated voltage: DC24V, working range±15%
- Dimensions: 140 x 98 x 26mm/5.5 x 3.9 x 1"
- RTC: built-in real-time clock
- Power protection: with lightning surge protection
- Hole spacing: 130 x 80mm/5.1 x 3.1"
- CPU: 32-bit 200MHz ARM9
- Allowable power loss: <5mS
- Net weight: 225g/0.5lb
- Memory: 128M FLASH
- Touch screen: 4-wire industrial resistive touch screen (surface hardness 4H)
- Protection class: the front panel conforms to IP20 (installed with a flat enclosure), and the rear shell of the fuselage conforms to IP20
- CE & RoHS: Complies with EN61000-6-2:2005, EN61000-6-4:2007 lightning surge ±4KV; group pulse ± 4KV, ELECTROSTATIC CONTACT ± 4KV, AIR DISCHARGE 8KV

Package Included:
- 1 x HMI Screen
- 1 x PLC Communication Cable
