Surecom SR629 Duplex Repeater Controller with Power Adapter for Walkie Talkie Radio

Surecom SR629 Duplex Repeater Controller with Power Adapter for Walkie Talkie Radio

R-629 Duplex Repeater Controller:
The SR-629 is a multi-function and cheaper device that connects any handheld or mobile radio.

By equipment and so on our assemble the build, the new generatio trunk-line board,the internal structure design are finer, the outward appearance is more attractive. Beside scan provide a the basic repeater function which has following the receiver transmitter,furthermore has the Simple connection, provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.

When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes

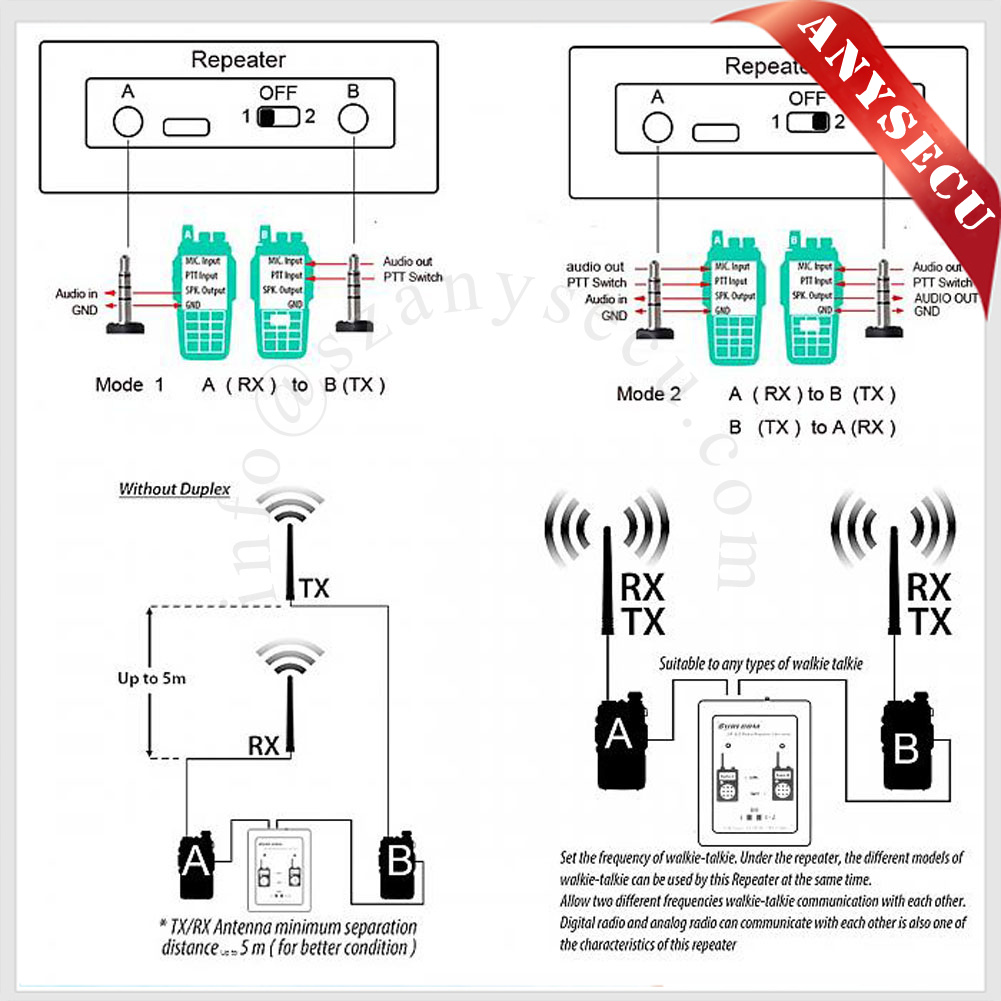

- Mode 1: When Radio A is RX, control to Radio B will TX. When Radio B is RX,  control no Funtion
- Mode 2 : When Radio A is RX, control to Radio B will TX.  When Radio B is RX, control to Radio A will TX.

The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.

This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.

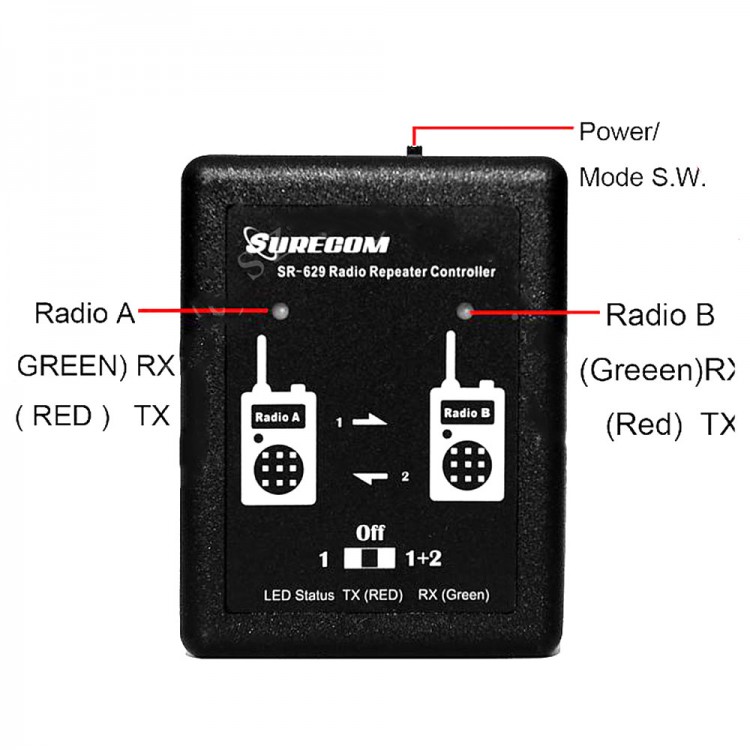

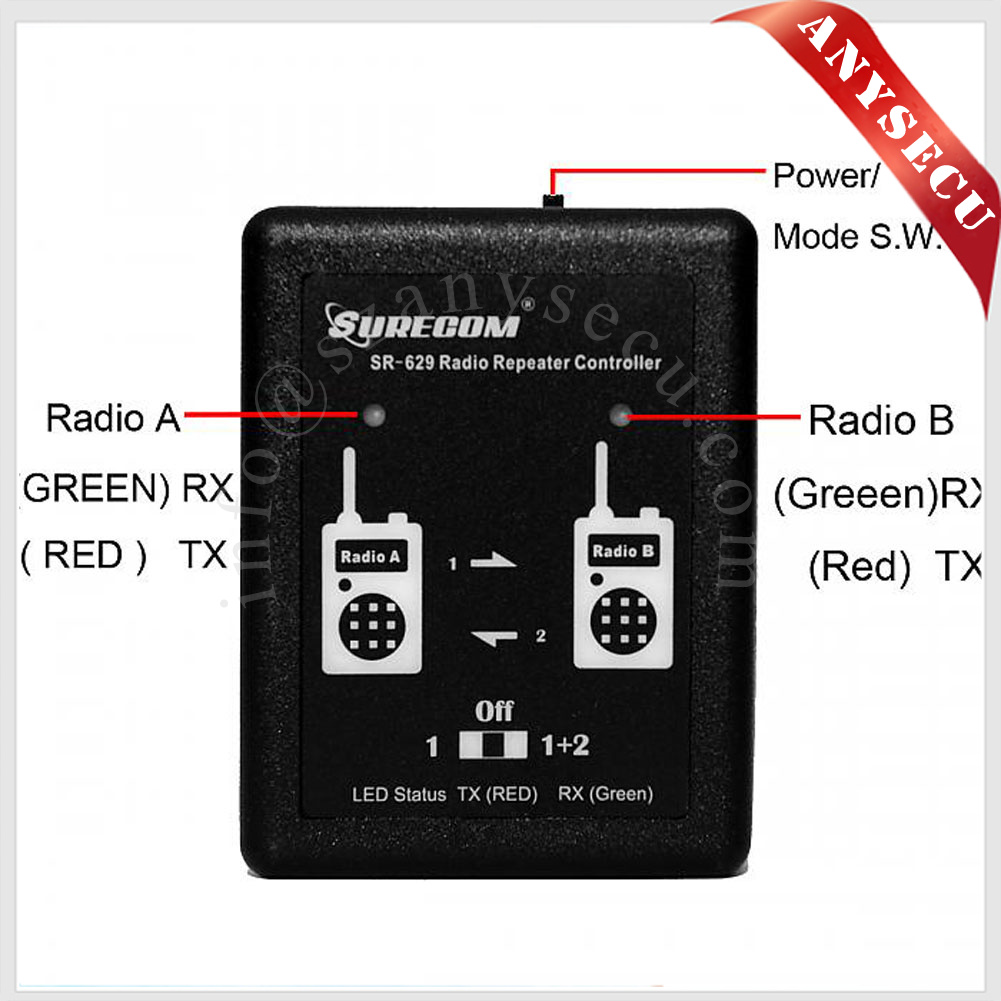

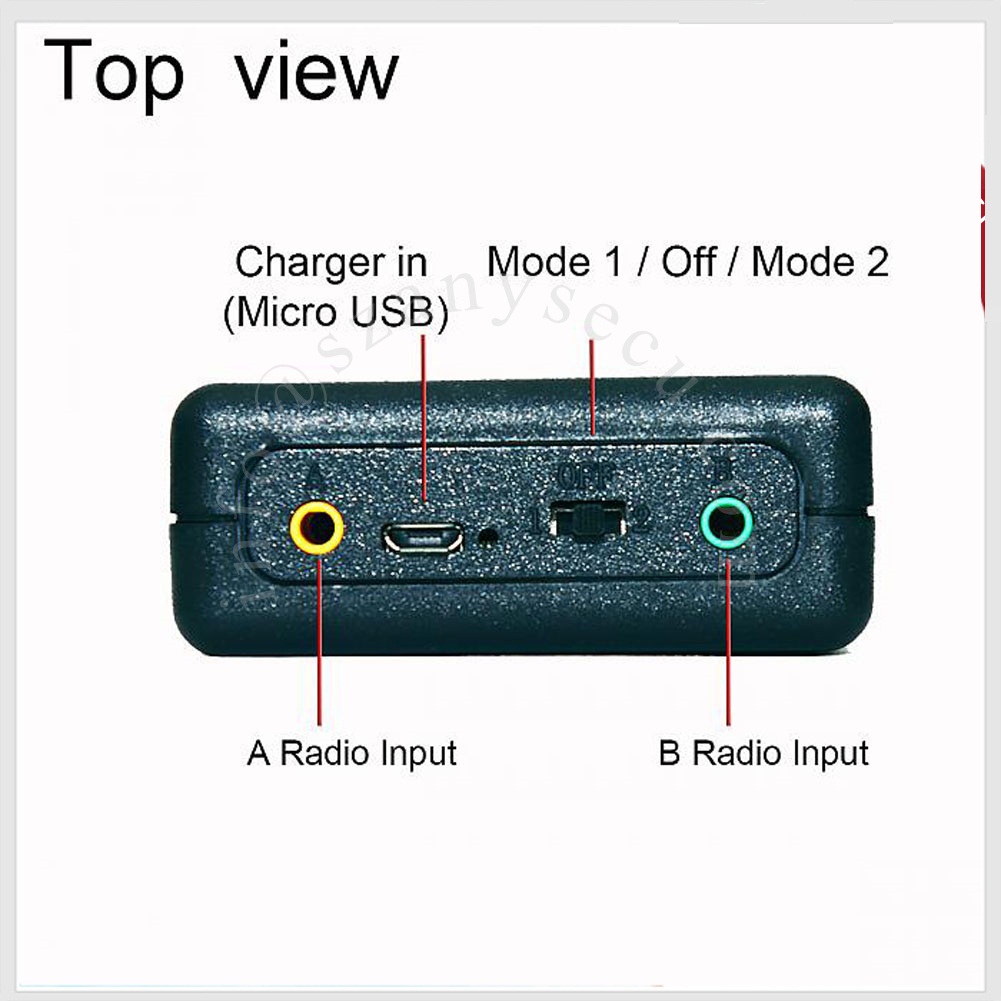

The SR-629 has 2 audio ports input and out , they are used to connect with mobile and handheld radio.  Multi-LED display 2 of radio status , and build-in battery Level

Major Features
- Works with most popular handheld radios
- Multi- LED display 2 radio status , And controller Battery Level
- Real time duplex repeater with link radio
- Allows user to change the DTMF remote control password by radio
- Operates on both build-in Li-ion battery 72 hours long life operation
- External DC 5V  power supply
- Professional manufacturer low power consumption .
- Two mode select

Specifications:
- Model: SR-629
- Audio: Analog
- Build-in Battery: Li-ion 3.7V 600mAh
- Power in : 5V (Micro usb)
- LED: 2 for A/B CH
- Size: 70*90*28mm
- Net Weight: 68g
- Battery : 24-48 Hours

Packing List:
- 1* SR-629 Duplex Repeater Controller
- 1* Power adapter
- 1* USB Power Cable
- 2* K connector Cable (Please leave the message with your order for cables you want)
- 1* English User Manual
