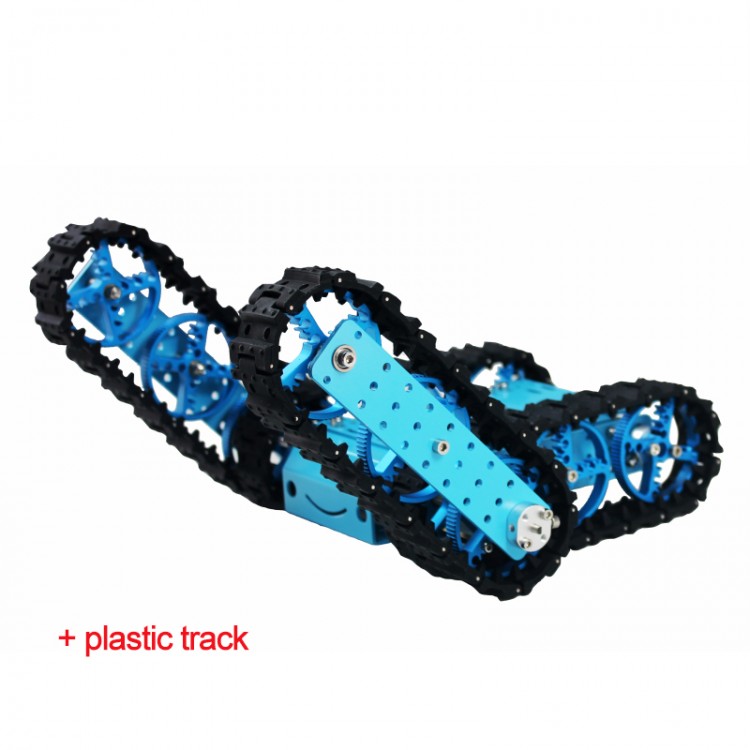

Swing Arm Tracked Robot Chassis Tank Chassis w/ Plastic Track Unassembled For Outdoors Peacock Blue
Features:
- Swing arm crawler robot chassis
- Climbing/Obstacles/Exploration in the wild/Coping with various complex situations in the wild
- Cope with multiple complex terrains
- DC geared motor drives the main body to operate, and digital steering gear controls the swing arm
- Multiple mounting holes for easy expansion
- 270° swing arm range
Specifications:
- Ground Clearance: 20 mm
- Obstacle Surmounting Ability: 90 mm
- Span Width: 160 mm
- Overall Weight: 1330 g
- Turning Radius: rotate in place
- Chassis Material: aluminum alloy (main body and load-bearing wheels), silicone (track)
- Stair Climbing Ability: 30°, can be parked on a slope
- Optional Controller: Graphic programming controller Hello Maker H1; controller for Arduino, controller for C51/STM32
- Operation Mode: according to the type of controller
HM-GM-25 DC Gear Motor:
- Test voltage: 6.0V
- No-load speed: 55 rpm
- Gear reduction ratio: 1:100
- No-load current: ≤ 75 mA
- Maximum efficiency point power: 0.21W
- No-load speed: 160
- Rated torque: 0.30 kg·cm
- Rated speed: 85 rpm
- Rated current: ≤ 320 mA
HM-MS10 Steering Gear:
- Control angle: 0-180°
- Steering gear torque: 15KG.CM (6V), 20KG.CM (7.2V)
- Working voltage: 6-7.4V
- Working temperature: 0 to 55℃
- Gear material: metal copper
- Steering gear weight: 55g
Package Included:
- 1 x Set of Chassis
Note:
- It is an AI intelligent robot programming educational product and experimental model, which cannot be used in industry. Without control kit and lithium battery.
- Assembling is needed and assembly video is provided.
- If you need a controller for this chassis (mobile APP wireless remote control, handle wireless control, etc.), please contact customer service to pay extra money.

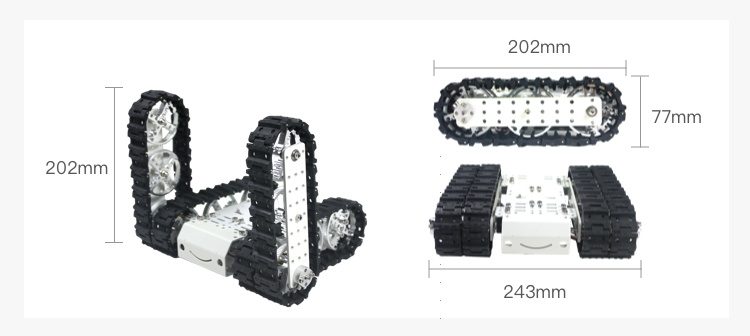

- The picture below is for size reference only. The actual color of our product is Peacock Blue.
