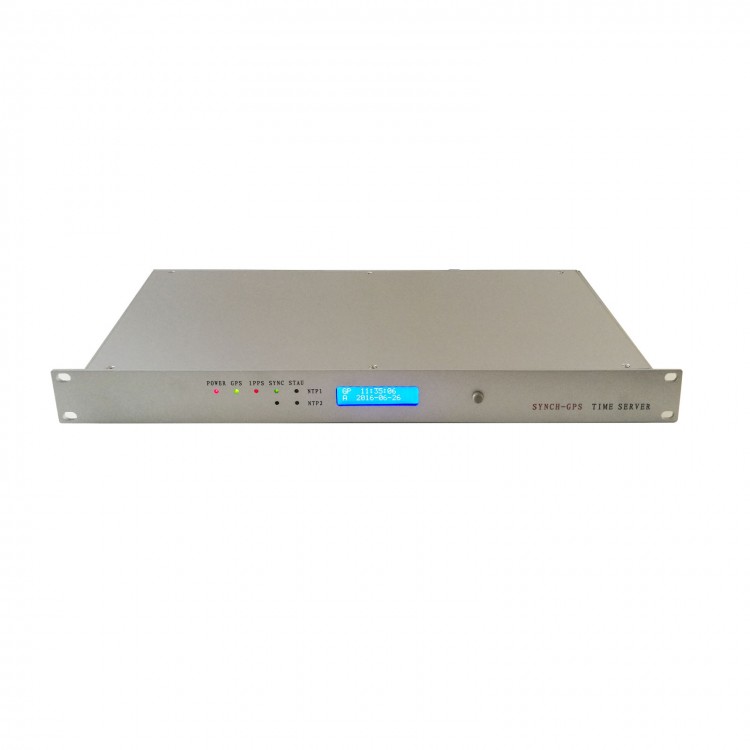

SYNCH-GPS 1-Way Time Server Network Time Server + 30M/98.4FT Mushroom Antenna for Beidou GPS

SYNCH-GPS 1-Way Time Server Network Time Server + 30M/98.4FT Mushroom Antenna for Beidou GPS

Description:
It is developed, based on the professional GPS receiver/Beidou II receiver components. The device has standard RS232, RS422/485, pulse, IRIG-B, PTP, NTP/SNTP protocol time output and other interface forms, so it can adapt to the timing needs of various devices. It is widely used in electric power, finance, communications and IT.

Technical Parameters:
1. Operating Conditions
1) Environmental conditions of the device
- Operating temperature: -200°C to +400°C
- Storage temperature: -400°C to +850°C
- Humidity: < 95% (non-condensing)

2) Power supply
85~264 V AC or 120~370 V DC, frequency 47~63Hz
18~36 V DC (typical 24V DC)
36~72 V DC (typical 48V DC)

3) Anti-interference
Under the action of lightning strike, over-voltage, primary loop operation, switching field failure, secondary loop operation and other strong interference, the device does not have wrong operation.

2. Technical Parameters:
- Channel: Based on a 64-channel chip for Humbird
- Frequency: BDS B1 (1559~1577MHz); GPS L1 (1575.42MHz)
- Positioning mode: single-system independent positioning and multi-system joint positioning
- Time to First Fix (TTFF): Cold start 35s, warm start 1s and recollect <1s
- Power consumption: ≤15W
- Mean Time Between Failures (MTBF) ≥ 70,000 hours; mean time to repair (MTTR): generally not more than 2 hours, and service life not less than 10 years
- Output time synchronization accuracy with Coordinated Universal Time (UTC): ≤1us
- Net weight of main unit: 2.5kg/5.5lb

Package Included:
- 1 x Time Server
- 1 x 30M/98.4FT Antenna
