Description:
RFD900A is a data transmission module specially designed and developed for model drones over long distances. It boasts compact size, excellent performance, and a communication band of 902-928MHz. It supports a transmission distance of 40km and above and a transmission rate of 250kbps.

Features:
1. No distinction between transmitter and receiver. Each module integrates a USB serial port chip, and USB and UART interfaces can be automatically switched (USB of priority);
2. Operating frequency range 902-928MHz, ISM band;
3. Transmit circuit adopts a low-noise amplifier greater than 20DB, and a low-pass filter unit is added;
4. Transmit power can be adjusted and the maximum transmission power is 1W;
5. Receiving circuit front highly sensitive LNA and SAW circuit;
6. Outdoor communication distance can reach 40km or more in a straight line (depending on antenna performance and communication rate requirements);
7. Air data rate up to 250Kbps;

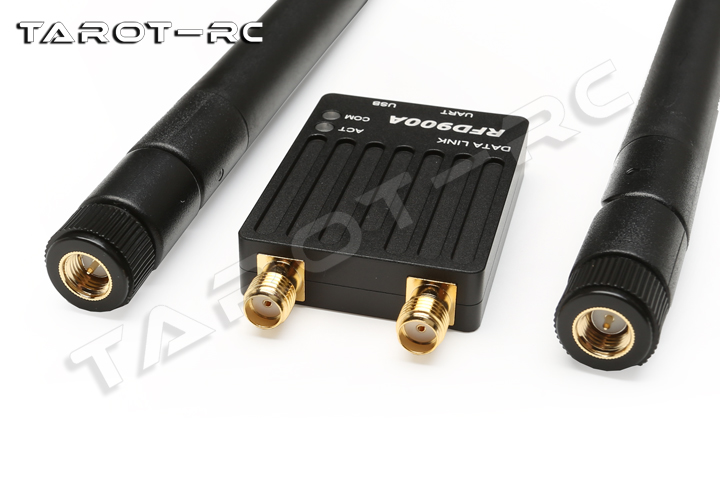

8. Dual antenna interface support antenna diversity and differentiated antenna configuration;
9. Support local radio AT command configuration and remote radio RT command configuration;
10. With module temperature monitoring, automatic duty cycle adjustment according to temperature to avoid over-temperature;
11. Operating temperature -40 to + 85℃.

Specifications:
Basic Parameters:
- Supply voltage: rated 5V, minimum 4V and maximum 5.5V
- Transmit current: ~1A (maximum power mode)
- Receiving current: ~60mA
- Module size: 33 x 53 x 9.5mm/1.3 x 2.1 x 0.4"
- Module weight: 23g/0.05lb

Performance Indicators:
- Communication rate: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250kbps
- Indoor distance: 500m-1km
- Outdoor direct viewing distance: 40km or more, depending on antenna performance
- Transmit power: 0 to 30dBm, adjustable 1dBm steps
- Receiving sensitivity: >121 at low rate; >TBA at high rate
- Low noise amplifier: >20dB

Characteristic Indicators:
- Serial data interface level: 3.3V standard and withstand up to 5V
- Configuration method: AT command, APM Planner, and custom configuration tool
- Working band: 902MHz -928MHz
- Spread spectrum technology: FHSS (Frequency Hopping Spread Spectrum)
- Serial port rate: 2400, 4800, 9600, 19200, 38400, 57600 and 115200bps
- Optional antennas: Yagi, Half wave dipole and monopole antenna (extra cost should be paid)
- Compliance Standards: FCC Part 15.247, AS/NZS 4268:2008

Cyber Security:
- Addressing method: Network ID: 0 -499
- Channels: Up to 50 adjustable frequency channels
- Topological network support: point-to-point and point-to-multi point (supported only when it is flashed with 2.X version of firmware)

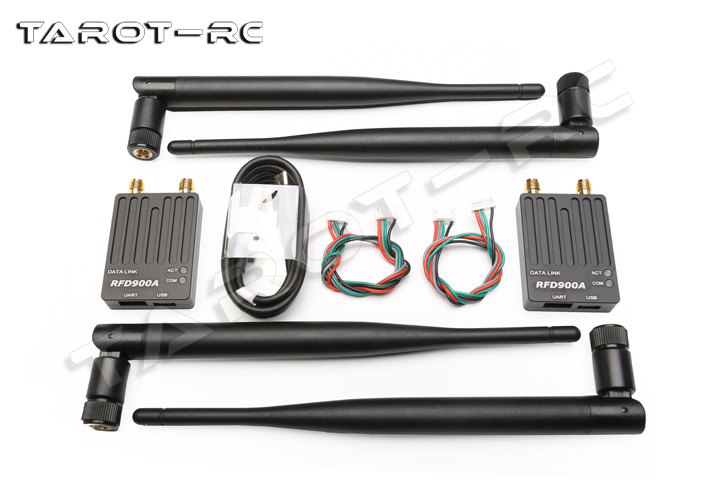

Package Included:

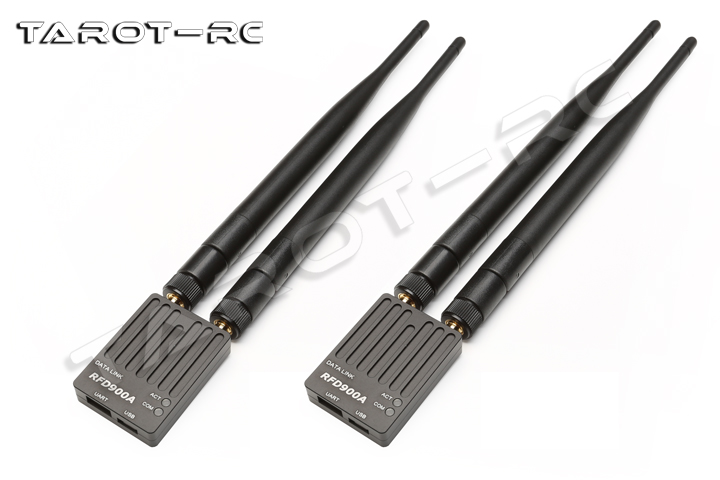

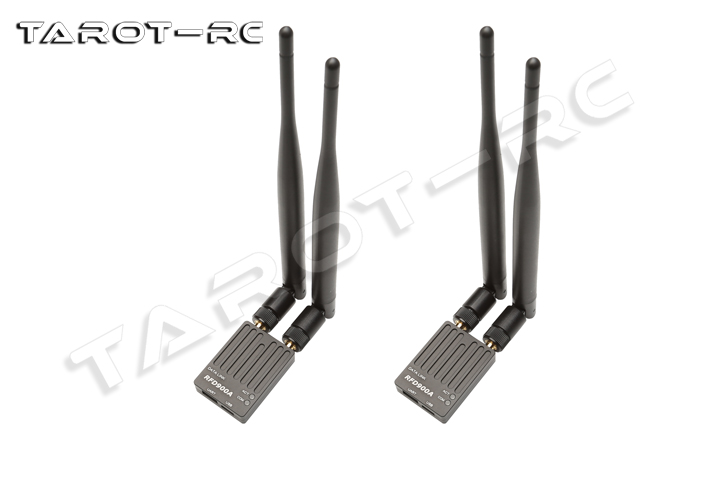

- 2 x RFD900A Modules
- 4 x 5DB SMA Antennas
- 1 x Micro-USB Data Cable

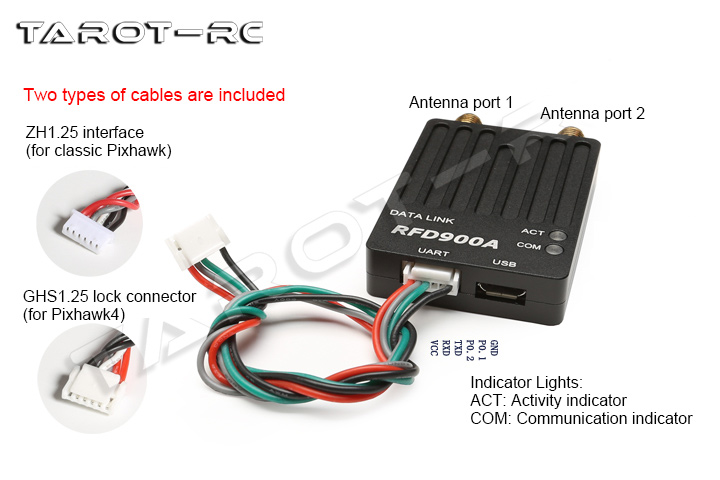

- 1 x UART Connection Cable/ZH1.25 Port for Pixhawk Flight Controller
- 1 x UART Connection Cable/GHS1.25 Lock Connector for Pixhawk Flight Controller
