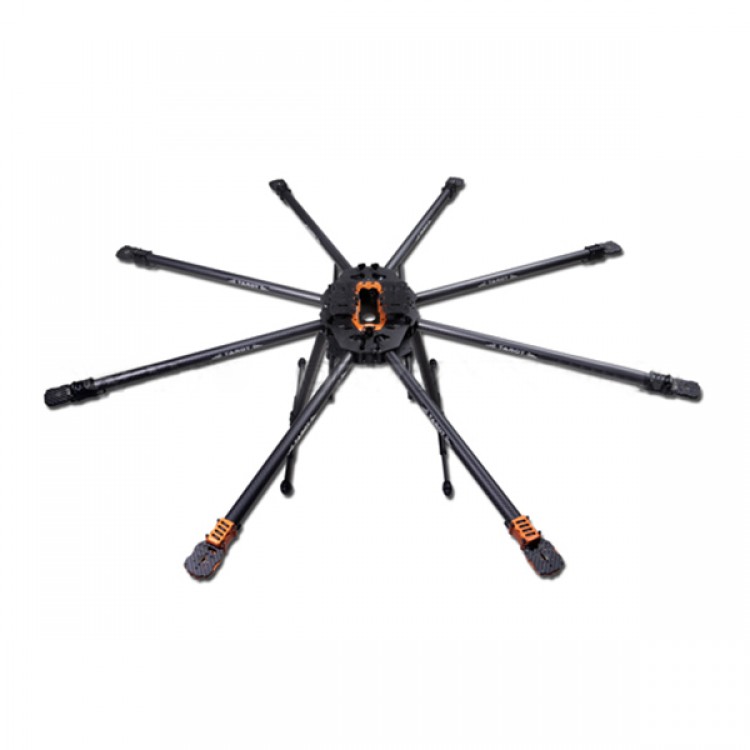

Tarot T15 Carbon Fiber Full Folding Octocopter FPV Multicopter TL15T00 for 5DII RED EPIC C300 FS100 FS700

Availability: Out Of Stock

  • Price:$404.86
  • Price in reward points: 4049 Reward Points: 40
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $396.76 $388.67 $376.52 $360.33 Contact US
Quantity:

Tarot T15 Carbon Fiber Full Folding Octocopter FPV Multicopter TL15T00 for 5DII RED EPIC C300 FS100 FS700

Weight is over 2kg,pls choose express shipping method like DHL/EMS/Fedex



Application:
- Widely applied to uav remote sensing mapping shooting aerial reconnaissance patrol agricultural disaster monitoring cable plant protection for mobile performance requirements such as high, large load equipment which takes long navigation time

Features:
- Suitable for 5DII RED EPIC C300 FS100 FS700 camera FPV use

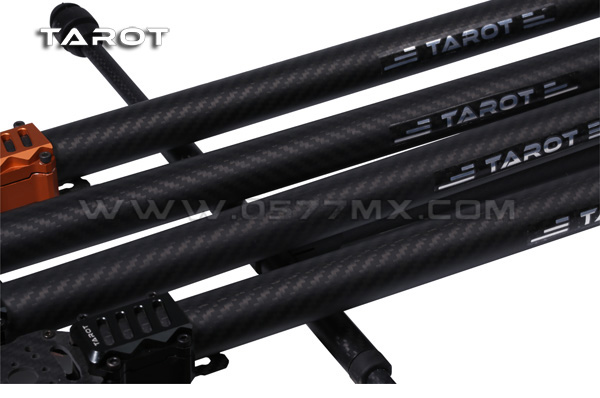

- T15 adopts 3K carbon fiber tube and 2.5mm thickness carbon fiber plate
- With high flatness light weight creep resistant high strength and strong vibration resistance, etc
- *** Folding method simplfied assembly process
- Multifunctional T15 detachable battery mounting plate (not included) can reduce impact damage
- Suitable for 12mm dia gimbal mounting set and all gimbal which center pitch is 155mm



Specification:
- Tube Diamater:25MM
- wheelbase:1020MM
- wing span:1070MM
- Height:420CM

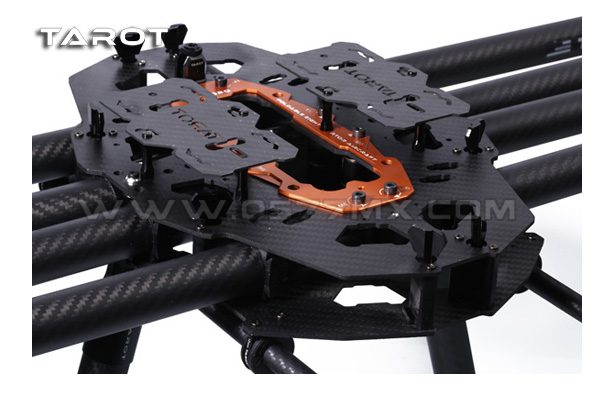

- Center boards diameter:301×209×2.5MM
- Motor mounting hole diamater:suitable for 16MM/19MM/25MM/27MM equilateral triangle type installation
- Recommend Propeller: TL2831/TL2813/TL2812
- Recommend brushless motor:4114/320KV or TL100B08-02/TL100B08-01
- Recommend battery:6S 22.2V 10000-15000MHA
- brushless ESC:35-40A


Octacopter net weight:1.95kg
Package weight :2.35kg (DHL may take fee via size about 3.5kg)
Payload:8kg

Specification:
- T15/T18 battery mounting plate TL15T01×2
- T15/T18 Aluminium set TL15T02 ×2
- T15/T18 Metal strengthening plate TL15T03 ×1
- T15 tube: TL15T04 ×4
- Tarot T15 Carbon fiber tube: TL15T05 ×4
- Tarot T15/T18 Fixture  TL15T06×2
- T15 cover plate: TL15T07 ×1
- GPS Folding holder TL15T08 ×1
- T810/T960 landing skid TL96013×1
- Multiaxial spacing TL96021×4
- T810/T960 Mounting set TL96014×1
- 8 in i assembly hub TL100B14 ×1
- Metal lock holder TL9605×8
- Φ25MM Motor mounting plate orange TL9602×2
- Φ25MM Motor mounting plate black TL9603×6
- Titanium knife ×1
- tarot sticker ×8
- Color to sticker set×2
- Magic stiker ×2
- User manual x1
- Color box x1
