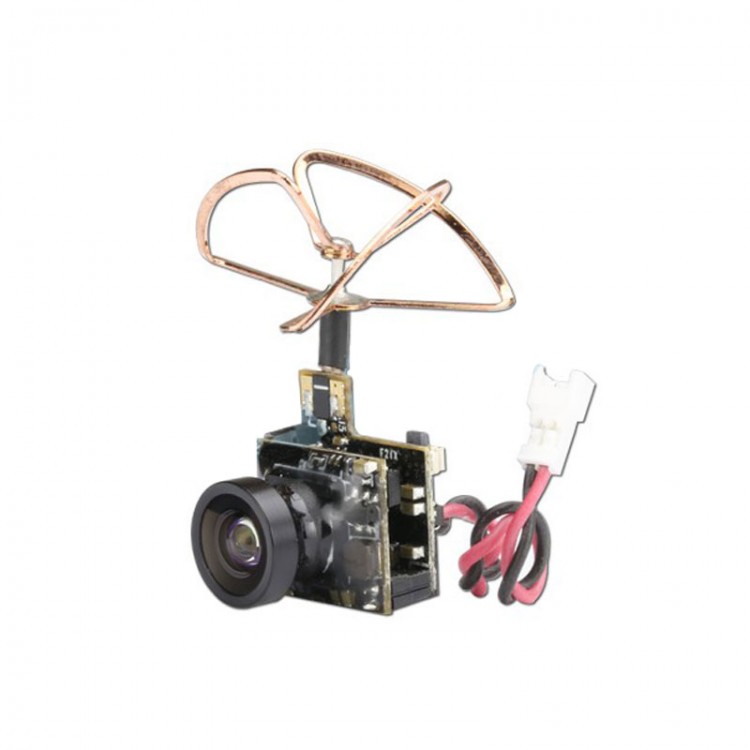

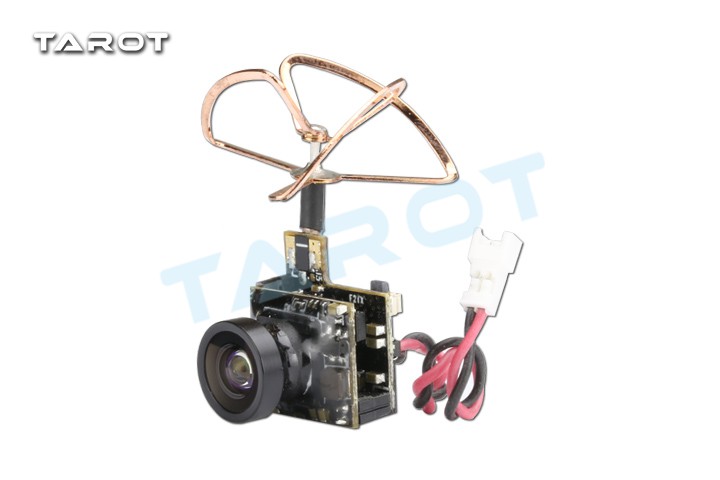

Tarot TL300M5 5.8G 25mW 48CH Integrated Mini Tiny AV Transmitter TX with 600TVL Camera for DIY Racing Drone FPV
Product Description:This product is a 5.8G wireless image transmitter one machine, compatible with all 5.8G reception and 600TVL, with a miniature and light weight design, wide-angle lens. Weighs only 4g, small size, support key selection frequency, especially for FPV competition, small unmanned aerial vehicles and other fields. (Note: the working voltage is 1S, less than 5.5V)
Product parameters:
- Frequency: 5.8G
- Channel: 48CH
- Transmitting power: 25mW
- Working voltage: 2.5V-5.5V
- Working current: 350mA
- Sharpness: 600TVL M7 lens
- Wide angle lens: 120 ° FOV, 150 ° DFOV
- Image format: NTSC
- Channel control: a button (key for the channel to increase the function)

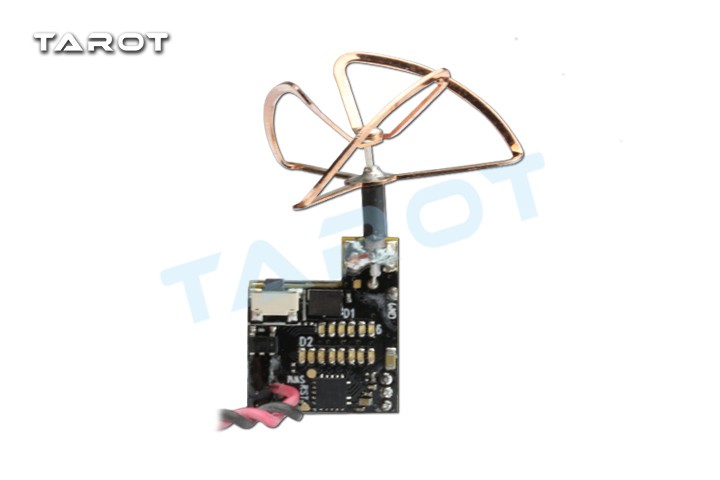

- There are two sets of LED lights:A group consisting of 6pcsLED red light is composed of BAND;A group consisting of 8pcsLED blue lights on behalf of CHANNEL

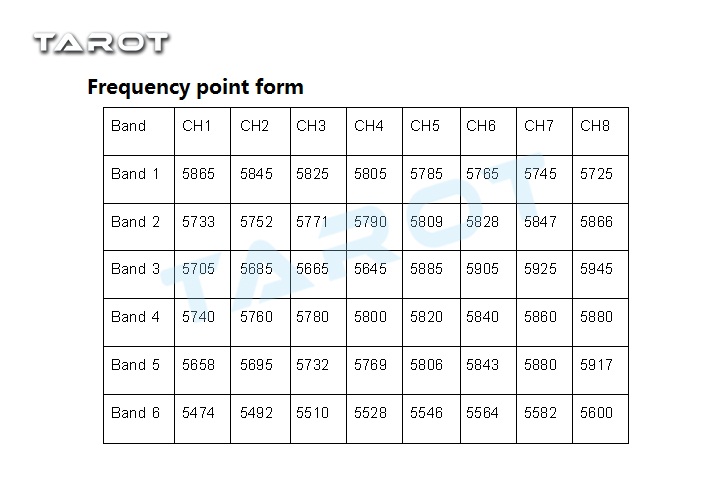

- The default frequency for the first power-up is: 5865, the default is the first group of BAND
Short press the button to adjust the channel; long press button 2s, you can adjust bands, a memory function.
- Mini 5.8g 25mw Figure One machine × 1 (15 × 12.5MM)
- Weight: 2.8g (without antenna), 4g (including antenna)
Package List:
- 1 x Tarot TL300M5 5.8G 25mW Integrated Mini Tiny AV Transmitter
