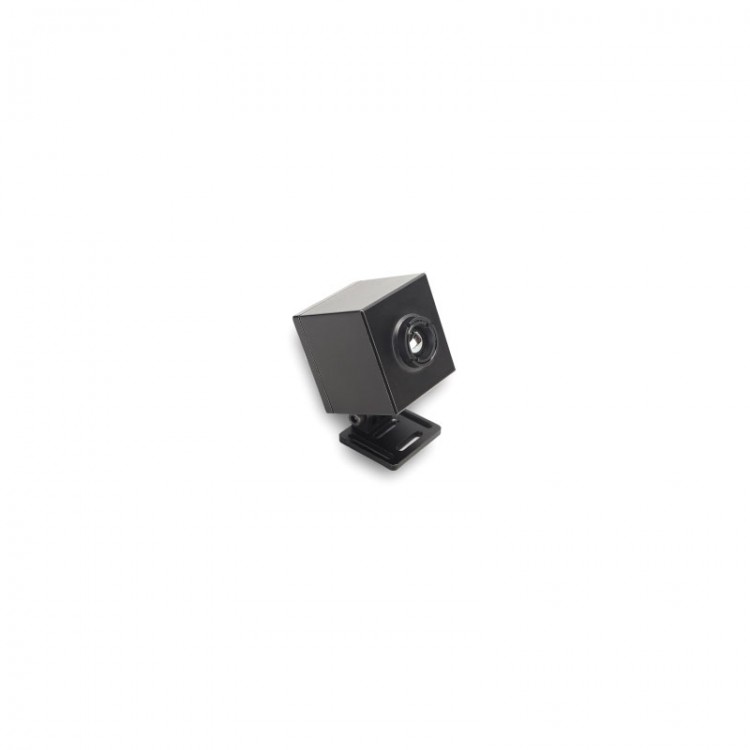

Tarot TL300M6 256*192 Infrared Thermal Imaging Camera Drone Camera with Mini Size Supports AV Output
Description:
This is Tarot's mini infrared thermal imaging camera. With an all-aluminum alloy body, it is sturdy and durable. The ultra-small size and ultra-light weight make it suitable for various types of multi-rotor drones, fixed-wing drones, unmanned vehicles, unmanned boats and racing drones. 25Hz frame rate is clear and smooth without lag, and the AV video output has no delay. It can be widely used in fields such as search and rescue, power maintenance, agriculture and security.
Specifications:
- Operating voltage: 5V
- Typical power consumption: Approx. 500mW at 25°C
- Communication interface: UART
- Video output type: AV/PAL
- Resolution: 256*192
- Lens type: 7.0mm F1.0
- Field of view (horizontal x vertical): 24.8°x18.7°
- Instantaneous field of view: 1.69 mrad
- Target detection range: vehicle: 892m and pedestrian: 292m
- Target recognition distance: vehicle: 224m and pedestrian: 73m
- Target identification distance: vehicle: 112m and pedestrian: 36m
- Pixel size: 12μm
- Detector frame rate: 25Hz
- Response band: 8~14μm
- Noise equivalent temperature difference: ≤50mK at 25°C, F#1.0
- Pseudo colors: 20 colors can be switched via pseudo color switching button +/-
- Operating temperature: -20°C to +60°C
- Dimensions: 26mm x 25mm x 28mm
- Camera weight: 28.7g
Package Included:
- 1 x Thermal imaging camera
- 1 x 6P cable (10mm)
Packaging Details:
- G.W.: 0.5kg
