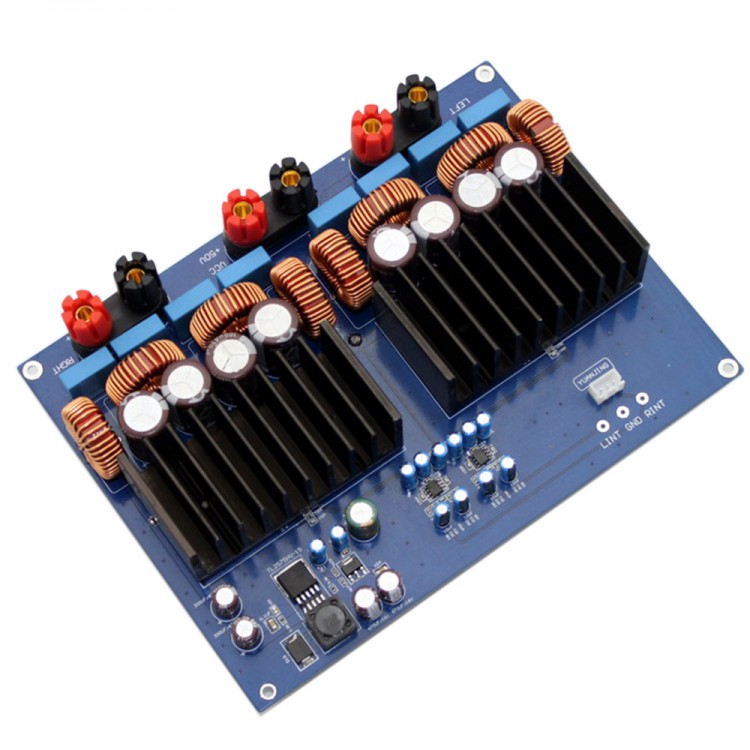

TAS5630 2.0 Class D DC48V 1200W High-Power Stereo Digital Amplifier Board Audio Amp

TAS5630 2.0 Class D DC48V 1200W High-Power Stereo Digital Amplifier Board Audio Amp

Description:
OPA1632 is a fully differential amplifier for driving high performance audio analog-to-digital converter (ADCs). The highest audio quality, which provides very low noise and output driver, optimized for this application of gain bandwidth design. OPA1632 180MHz 50V/ s and very fast conversion speed, produce very low distortion 0.000022%. input noise 1.3nV/ root Hz to further ensure the ratio and dynamic range and signal-to-noise . Full differential structure flexibility, can easily realize single ended differential output conversion. Differential output decreased even harmonics, ADCs provides high performance audio PCM1804. excellent performance drive to reduce common mode noise OPA1632 interference, such as the use of shutdown function also enhances the flexibility .TAS5630 amplifier is integrated analog input 300W stereo feedback (total D class 600W amplifier, capable of providing up to 300W stereo from a single supply 50V to 4 ohm speakers (THD <0.03%). Its SNR is greater than 100db; PSRR is 80dB, and the power level is up to 88%.

Features:
- Original TAS5630, OPA1632DR
- Main filter electrolytic capacitor using famous brand, capacity 330UF/100V*4, to ensure a strong steady flow of power support.
- 5 loop resistor , the main loop with the accuracy of 1% of the 5 loop resistor film resistance, to ensure the good signal-to-noise ratio.
- High current inductor
- PCB 1.6mm, thick and double side panels, 2 ounce of copper thickness, tin spraying process

TAS5630 Video: Click here

Basic parameters:
- Working mode: class D
- Static current: 120mA
- Working efficiency: 88%
- Output power: 2*600W/4 10% THD
- Frequency response: 20Hz to 20KHz
- Dynamic range: dB >100
- Signal to noise ratio: 100dB (A-Weighted)
- Working voltage: DC48V
- PCB size: 190*140MM

Package included:
- 1 x Digital Amplifier
